Conveying Dehydrated Vegetables Quartz Sand Z-shaped Dumping Conveyor

 Z Type Bucket Conveyor

Product Description

The Z-shaped lifting conveyor is an efficient material conveying device. It has a Z-shaped structure and can achieve the combination of vertical lifting and horizontal in limited space. It is mainly composed of a driving device, a hopper, a chain, etc., and relies on the driving device to drive the chain to make hopper circulate to convey materials. It has the advantages of small footprint, large conveying capacity, large lifting height, stable operation, and good sealing performance. can be widely used in grain, chemical, building materials and other industries, and can greatly improve production efficiency and reduce labor costs. It is an ideal device for efficient conveying.

Working Principle

After the equipment is started, the driving device provides power for the entire system, causing the surrounding traction components (such as chains or belts) begin moving, which in turn drives the buckets installed on them to circulate. Materials enter from the feed port and are scooped or received by the buckets at the. As the traction components operate, the buckets rise along the Z-shaped track, completing the vertical lifting of the materials during the ascent. When the buckets reach the top they move horizontally with the track's turning, and at the same time, using gravity or discharge devices, the materials are discharged from the discharge port to the designated position realizing the horizontal conveying of the materials, thus completing the entire Z-shaped path of the material conveying process.

Features & Advantage

1. Unique Z-shaped structure: The Z-shaped conveying line allows for the combination of vertical lifting and horizontal conveying within a limited space effectively saving floor space compared to traditional straight-line conveyors, and is especially suitable for production sites with compact space.

2. Efficient conveying capacity: It can be equipped large-capacity hoppers, and the running speed is stable, which can achieve a large amount of material conveying, meeting the needs of different production scales, and helps improve production efficiency.

3. Flexible lifting height: Through reasonable design and configuration, it can achieve different heights of lifting according to actual needs, from lower heights to higher or platforms can be easily coped with, and the adaptability is strong.

4. Stable and reliable operation: High-quality transmission parts and advanced manufacturing processes are used with low vibration and low noise during operation, and the equipment has high stability and reliability, which can reduce production interruptions caused by equipment failure.

5. Good sealing performance The overall sealing performance is good, effectively preventing materials from leaking, scattering, and flying during the conveying process, avoiding pollution to the production environment, and can also ensure the quality of the materials is not affected by external factors.



Details Lmages

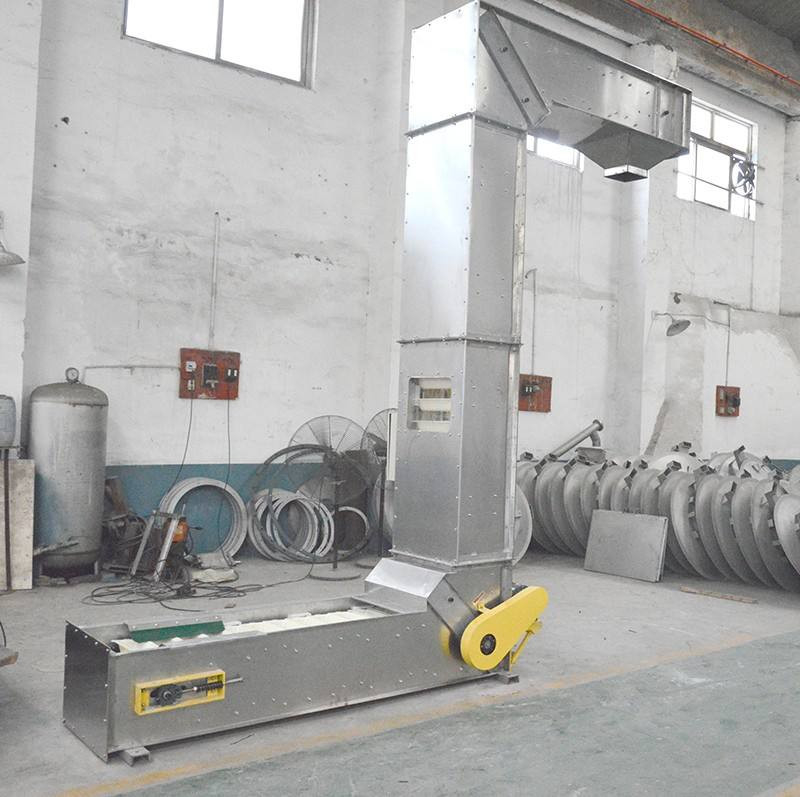

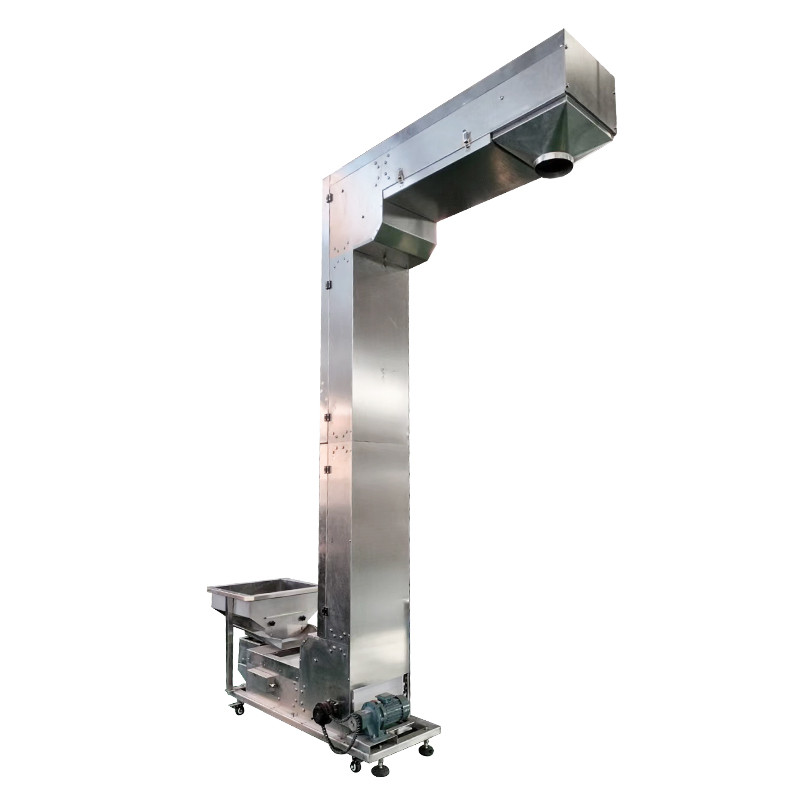

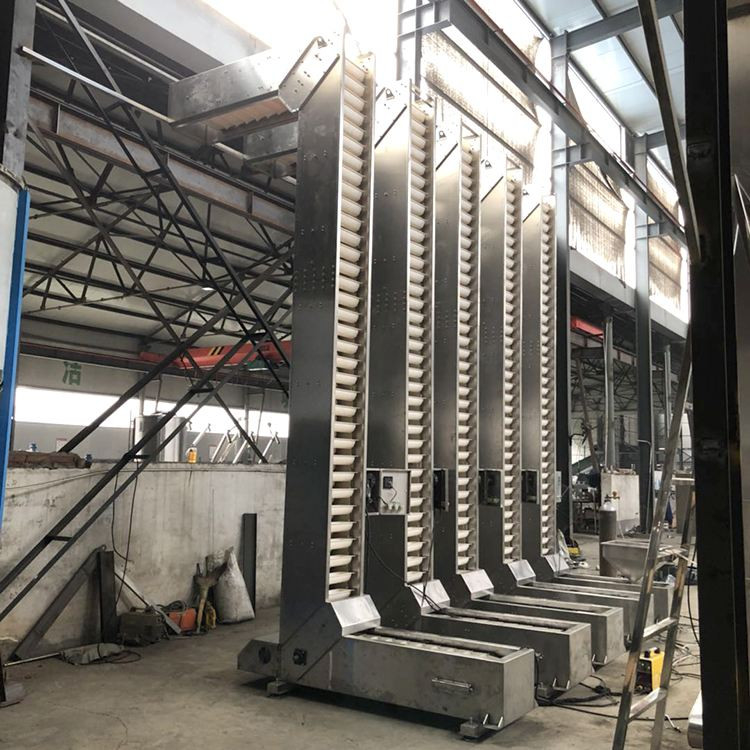

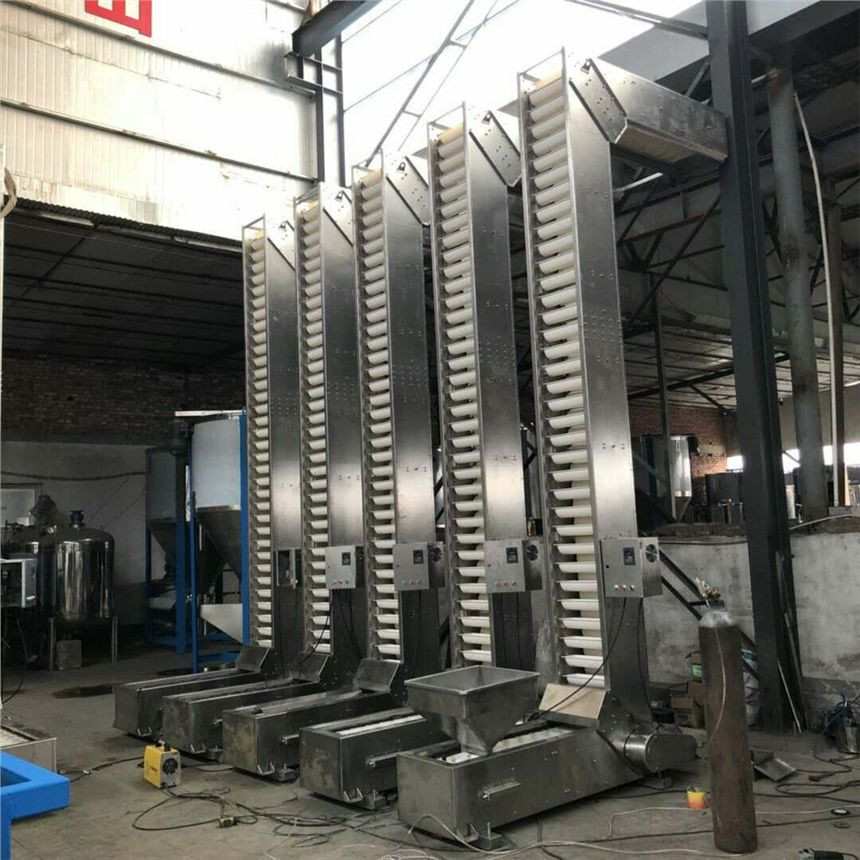

Product Shows

Packing & Delivery

Why Choose Us



About us



Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
