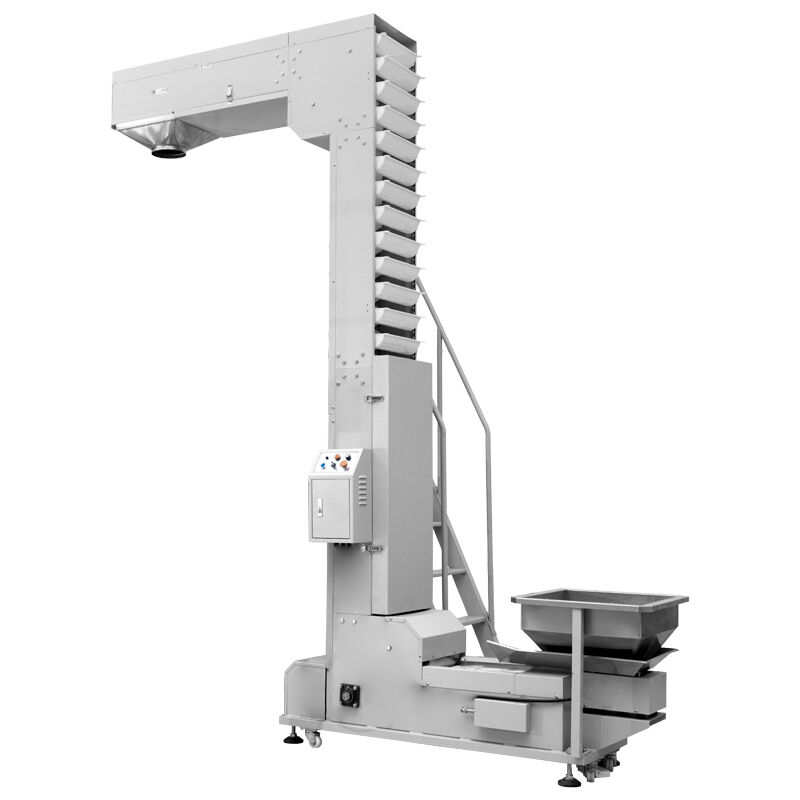

​Z Type Bucket Elevator

Product description

The Z-type elevator is an efficient and continuous conveying equipment specially designed for vertical transportation of powdery, granular and small-sized materials. Its distinctive feature is that the feed inlet and the discharge outlet are respectively located at the bottom and the top of the equipment and are distributed horizontally in opposite directions. The overall structure is compact and arranged in a "Z" shape. This equipment effectively prevents dust from spilling out through its fully enclosed box structure and protects the materials from contamination. It also has the advantages of small floor area, large lifting height, smooth operation with low noise, and easy maintenance. It is widely used in the production processes of the food, chemical and building materials industries.

Working principle

The working principle of the Z-type elevator is to use the driving device to drive the traction chain and the material hopper fixed on it to move in a continuous circular motion. The materials are automatically loaded into the hopper through the bottom feed port and then rise vertically to the top. When the hopper makes a circular motion around the head pulley, the materials are automatically thrown out under the combined action of centrifugal force and gravity and fall into the discharge port. The empty hopper then descends and returns to the bottom to receive new materials, thus achieving a continuous, closed and efficient vertical transportation of materials from lower to higher positions.

Product characteristics

The layout is compact and space-saving.
The unique "Z" shape structure ensures that the inlet and outlet are horizontally offset, effectively utilizing the vertical space. It is particularly suitable for layouts in restricted areas or those that need to cross obstacles.

Fully enclosed design, environmentally friendly and hygienic
The entire machine operates in a sealed manner for transportation, completely preventing dust from spilling out and avoiding contamination of materials. It perfectly meets the strict hygiene standards of industries such as food and medicine.

Smooth operation, low loss and low noise
The chain traction is combined with gentle discharging, resulting in low operating noise. It significantly reduces the fragmentation rate of fragile materials and maintains the integrity of the materials.

High lifting height, high efficiency and energy saving
Supports vertical lifting of up to several tens of meters, with large conveying capacity and continuous stability. Compared to traditional equipment, it has lower energy consumption and more economical maintenance costs.

Flexible combination, easy to maintain
Supports single machine or multiple machines connected in series or parallel for networking. The modular structure design is reasonable, facilitating daily cleaning, maintenance and fault diagnosis.

Production Line Diagram

1.Z type conveyor feeding the material into the mixer
2.The mixer can with spray and heating device
3.Z type conveyor transport the mixed material to the packing machine
4.Packing machine packaged the material and seal the bags

Product details

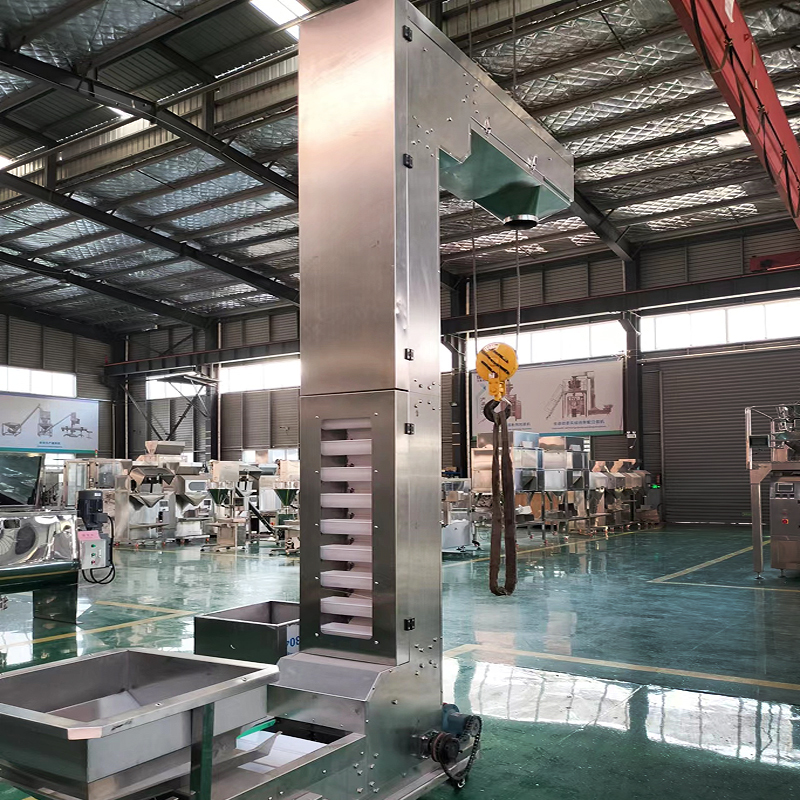

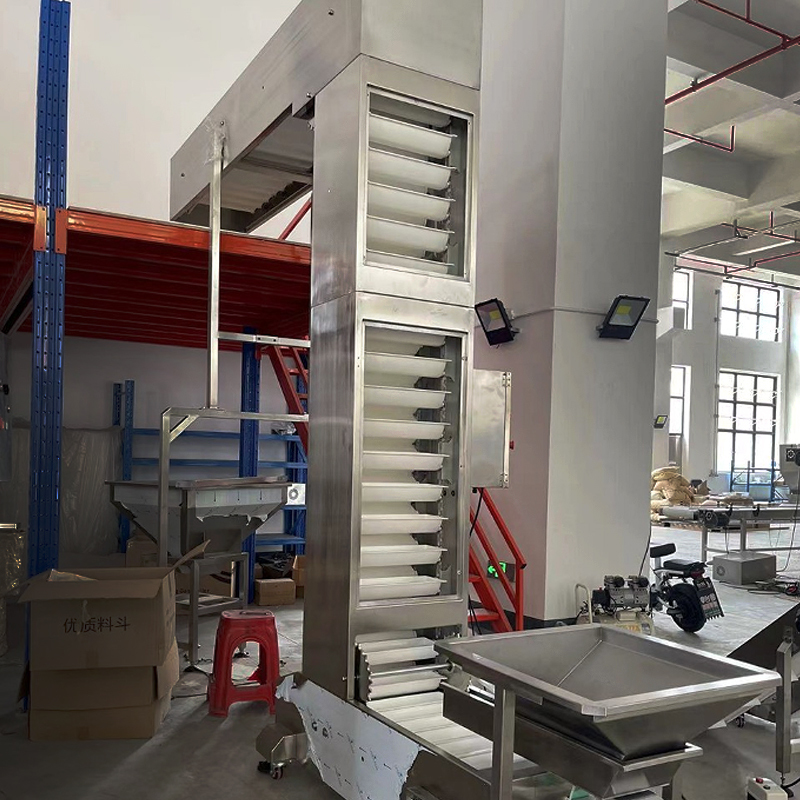

Product display

Packaging & Shipping

Why Choose us

About us

Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer,

Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
