​Z Type Bucket Elevator

Product description

The Z-shaped lifting conveyor is a continuous conveying equipment with a "Z" shaped layout. It conveys bulk materials or individual items from a lower position to a higher position efficiently by means of vertical or large-inclination Angle conveying, using load-bearing components such as chains and belts, and carrying hoppers or pallets. Its unique Z-shaped structure enables it to lift and transfer materials within a limited space. It has the advantages of small floor space, strong conveying capacity, good sealing performance, and effective prevention of dust flying. It is widely used in material handling and production line connection scenarios in industries such as food, chemical engineering, and building materials.

Working principle

The Z-type lifting conveyor is composed of a drive device, a tensioning device, etc. During operation, the motor drives the main shaft through the reducer, and the sprocket or pulley on it drives the conveyor chain or belt to rotate. The material enters the hopper from the feeding port. The hopper remains upright and rises along the Z-shaped track with the chain or belt, turning smoothly at the top bend. When the material reaches the discharge port, it is conveyed by the change of the track or the discharge device. Meanwhile, the tensioning device adjusts the tightness of the chain or belt in real time to ensure the stable operation of the conveyor.

Product characteristics

1. Spatial efficiency: The Z-shaped structure combines horizontal and vertical conveying, saving floor space and optimizing layout.

2. Strong conveying power: Customizable parameters, efficient conveying of large quantities of materials, suitable for different production scales.

3. Smooth operation: Chain or belt drive reduces material spillage and protects fragile items.

4. Sealed and dust-proof: Fully enclosed design prevents dust from flying, meeting environmental protection requirements and suitable for sensitive industries.

5. Easy maintenance: The structure is simple, and the components are easy to disassemble and replace, reducing costs and extending service life.

6. Flexible entry and exit: Multiple feeding and discharging ports can be set up to achieve single-point or multi-point automatic feeding and discharging.

7. Wide application: It can convey materials of various forms and can be equipped with hoppers and components as needed.

8. Safety and reliability: Equipped with safety devices, it operates with low noise to ensure the safety of both the operator and the machine.



Product details

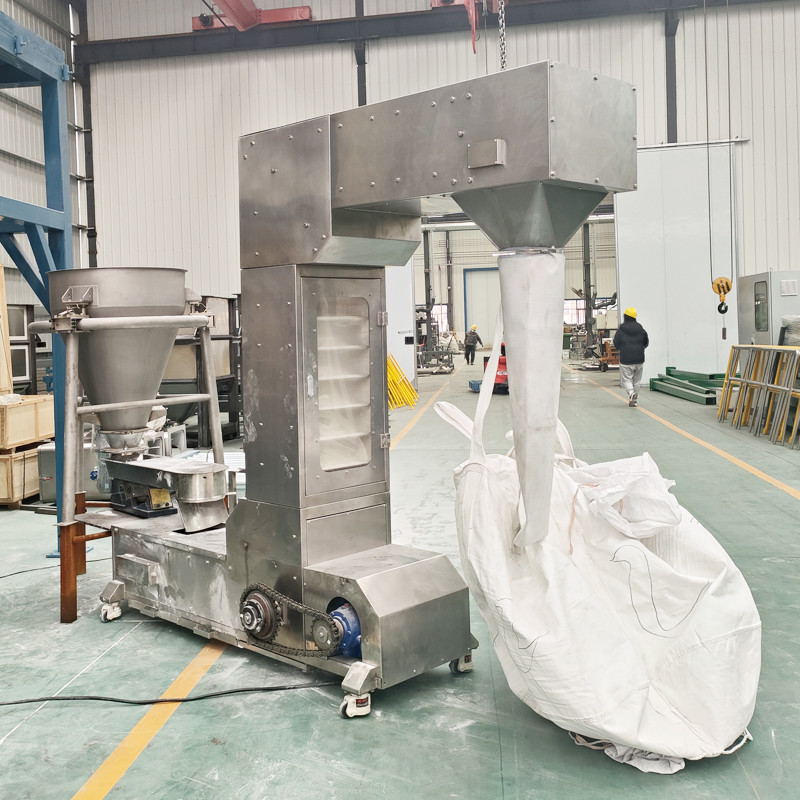

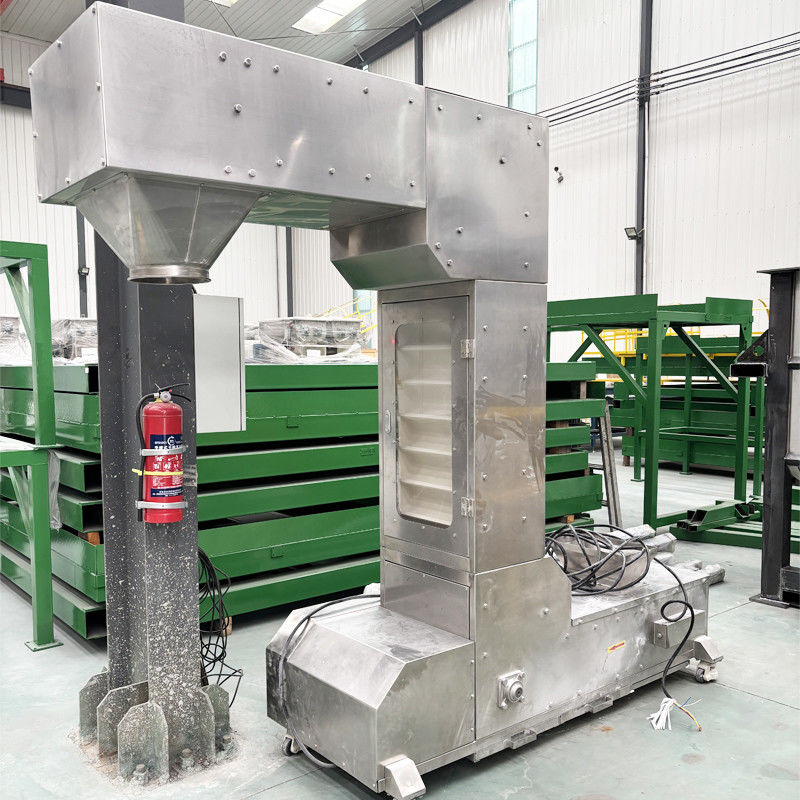

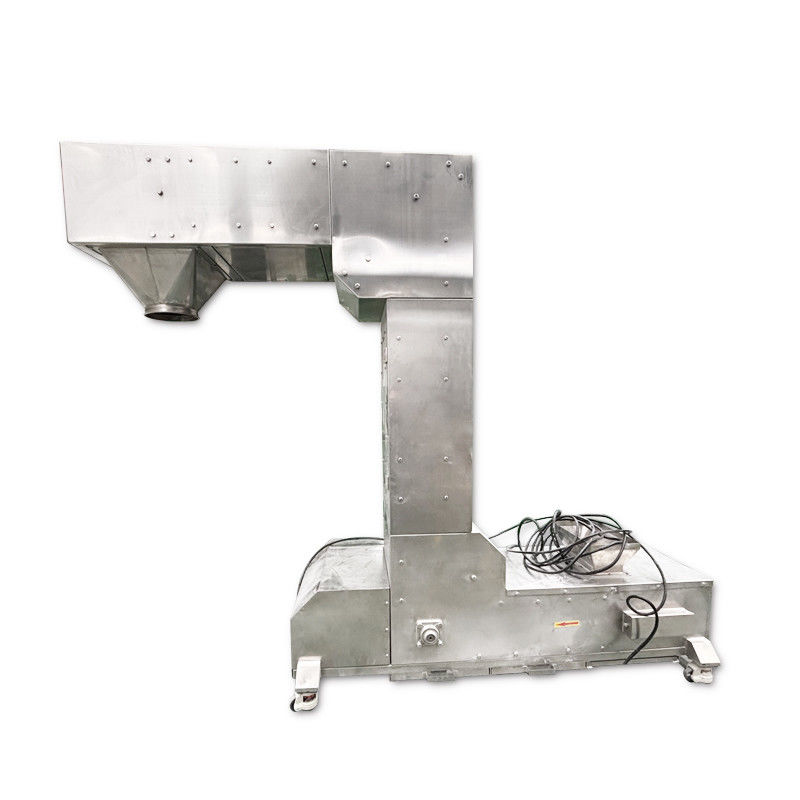

Product display



Packaging & Shipping



Why Choose us



About us

Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer,

Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
