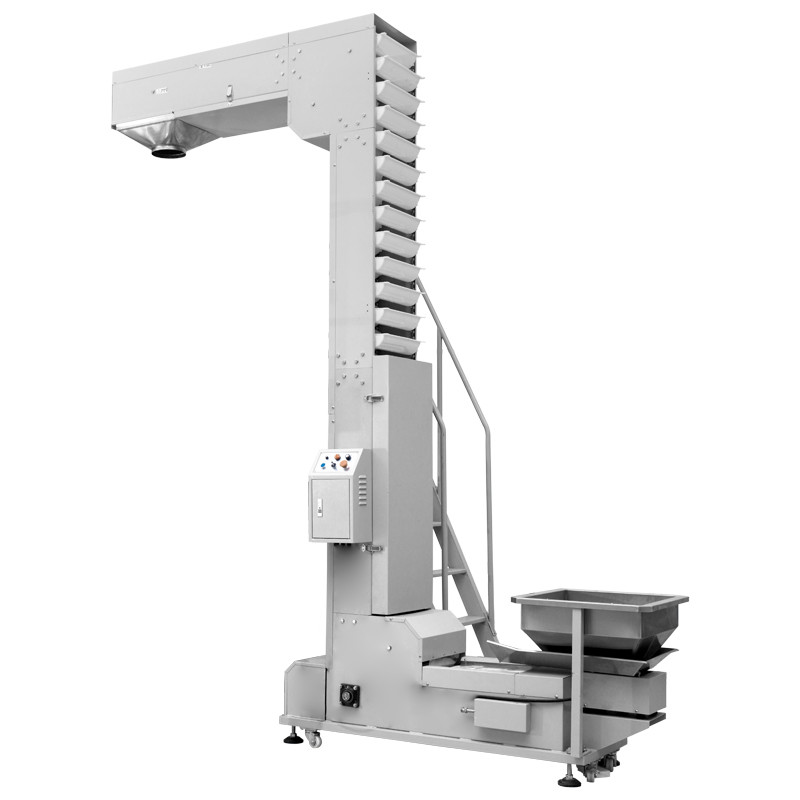

Stainless Steel Z-shaped Bucket Elevator For Activated Carbon Granules

 Z Type Bucket Conveyor

Product Description

The Z-shaped hoist is a device used for vertically lifting materials, named for its Z-shaped conveying route. It mainly consists of a driving, a tensioning device, a hopper, chains or belts, etc. Its working principle is to drive the chains or belts to rotate through the driving device, that the hopper moves in a cycle on the Z-shaped track, realizing the lifting of materials from a low position to a high position. The Z-shaped hoist the advantages of small footprint, large lifting height, large conveying capacity, stable operation, and good sealing performance. It is widely used in grain, chemical, building materials feed and other industries, which can effectively improve production efficiency, reduce labor intensity, and is an efficient and reliable material lifting equipment.

Working Principle

After starting, the driving device provides power to drive the circulating chain or belt to move. The materials to be lifted are conveyed to the feed of the Z-shaped lifting machine and enter the bottom hopper. As the chain or belt continues to rotate, the hopper rises along the Z-shaped track, keeping materials stable during the ascent. When it reaches the top, the hopper turns with the track and uses gravity or discharge device to discharge the materials from the discharge port completing the transportation from low to high position. Then the hopper continues to circulate and carry out the next round of material lifting operation, thus realizing the continuous and material lifting function.

Features & Advantage

Efficient space utilization: With a unique Z-shaped structure, it can achieve vertical lifting within limited space, especially suitable for places with space, which can effectively save the floor area.

Strong conveying capacity: It can be equipped with different specifications of hoppers, which can adapt to the conveying of various materials, with a large conveying capacity, which can meet the requirements of different production scales.

Large lifting height: Through reasonable design and configuration, can achieve a high lifting height, lifting materials to the required position.

Stable and reliable operation: With high-quality chains, belts and other transmission parts, combined precise track design, the operation is stable, the vibration is small, which can reduce the scattering of materials and the wear of equipment.

Good sealing performance: overall closure is good, which can effectively prevent the leakage and flying of materials during the conveying process, avoid polluting the environment, and also ensure the quality of materials.

Simple maintenance: The structure is relatively simple, and each part is easy to disassemble and install, which makes the daily maintenance and overhaul work more convenient, can reduce the maintenance cost and downtime.



Details Lmages

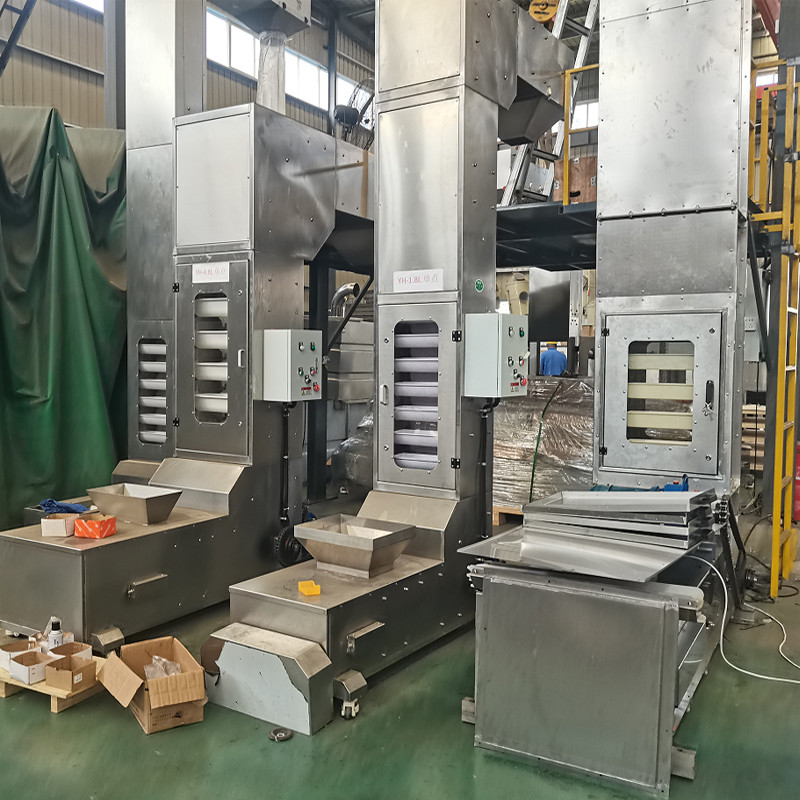

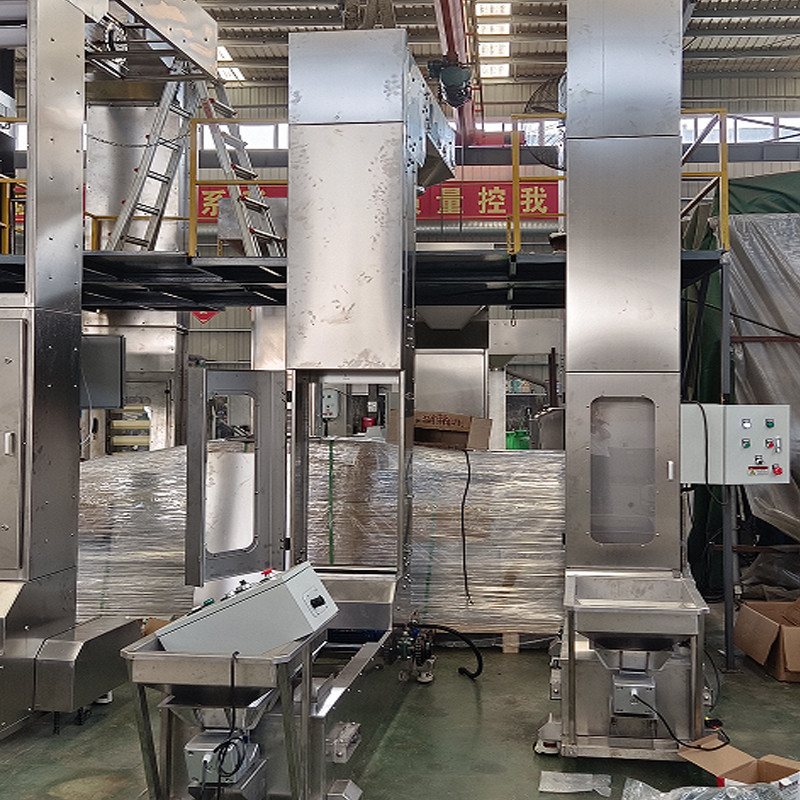

Product Shows

Packing & Delivery

Why Choose Us



About us



Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
