5-50kgs Bag Packing Machine

Product Shows

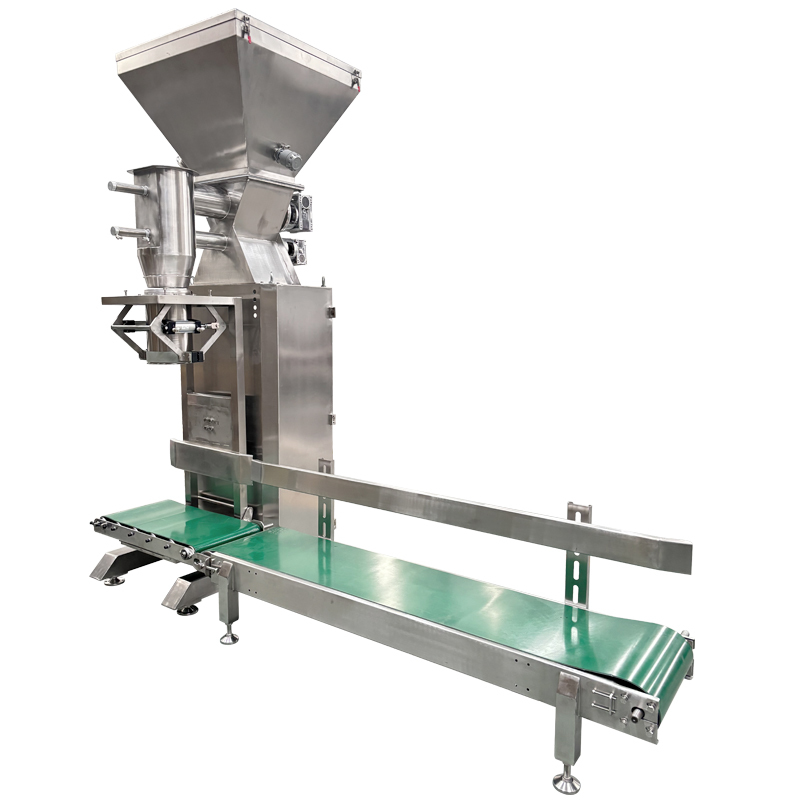

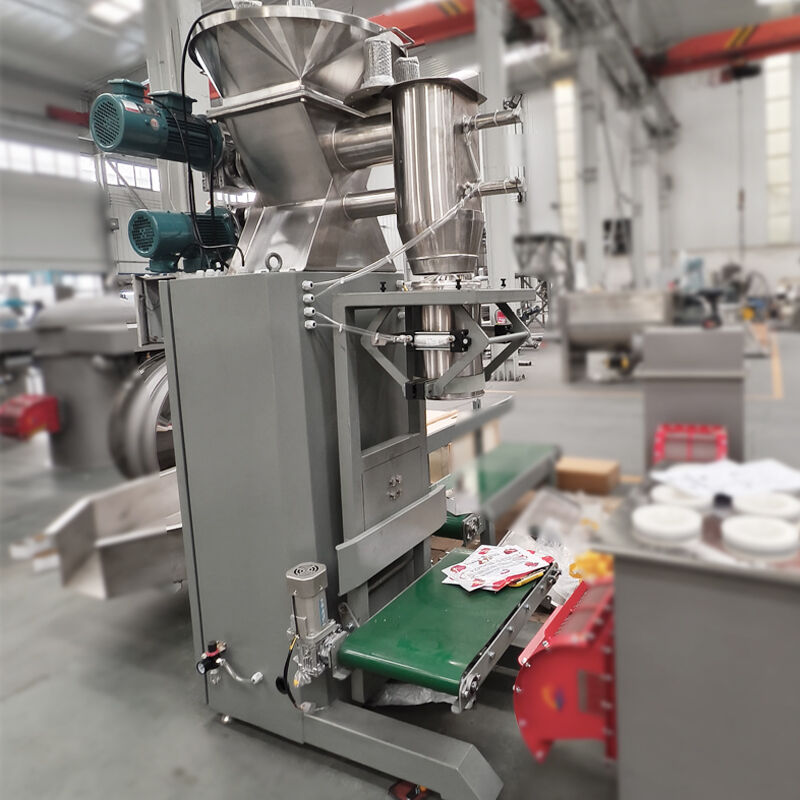

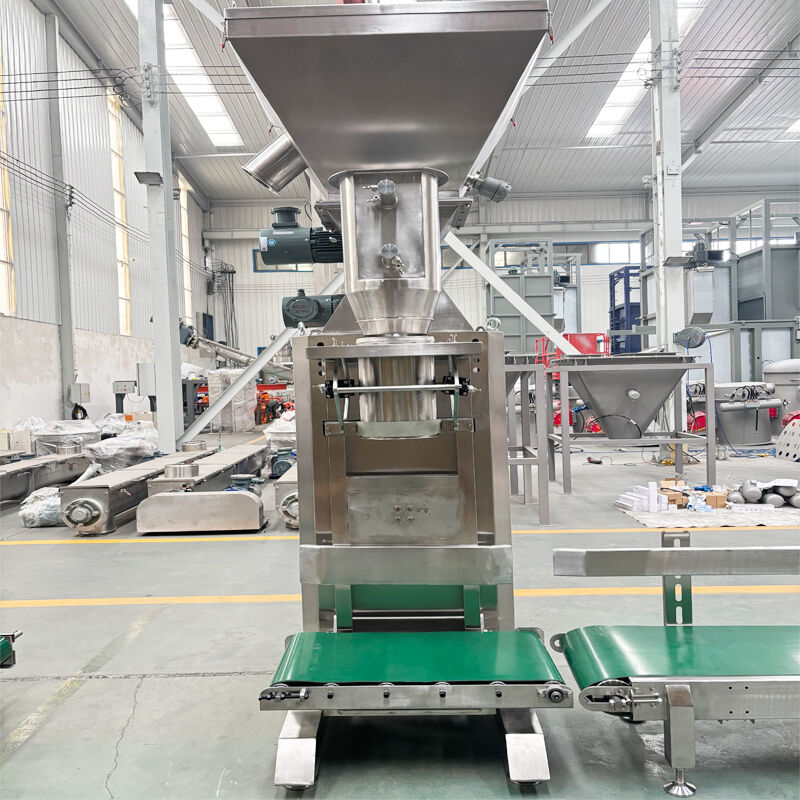

The 25kg powder packaging machine is designed for precise quantitative packing of powdered materials, featuring high-accuracy weighing and a dust-proof, sealed design. It automatically completes metering and bagging operations, suitable for 25kg powder bagging in industries such as chemicals, food, and building materials, and can be integrated into complete automated powder production lines.

Working Principle

The equipment uses a screw conveyor to precisely meter powder, with load cells providing real-time weight feedback and dual-stage feeding for improved accuracy. It automatically stops discharging when the preset 25 kg is reached. A sealed design combined with a dust collection system minimizes dust leakage, enabling automatic quantitative bagging of powders.

Features & Advantages

1.High weighing precision, adopts coarse and fine two-stage feeding to ensure stable 25kg quantitative packaging.
2.Stainless steel contact parts, optional 304/316, suitable for food, chemical and other powder materials.
3.Automatic bag clamping design, equipped with dust collection device to effectively prevent powder flying.
4.PLC intelligent control system, easy parameter setting and simple operation.
5.Wide adaptability, compatible with woven bags, paper bags and other packaging bags.
6.Compact structure, stable operation, low failure rate, suitable for continuous production line work.

Production Line Diagram

1.The bucket elevator transports the material into a storage hopper
2.The hopper has 2 outlets, each outlet connect with a screw conveyor
3.The screw conveyor transport the material to the bag-filling machine, the filling weight can be adjustable/customized
4.The filled bag will be sealed by the bag-sealing machine
