5-50kgs Bag Packing Machine

Product Shows

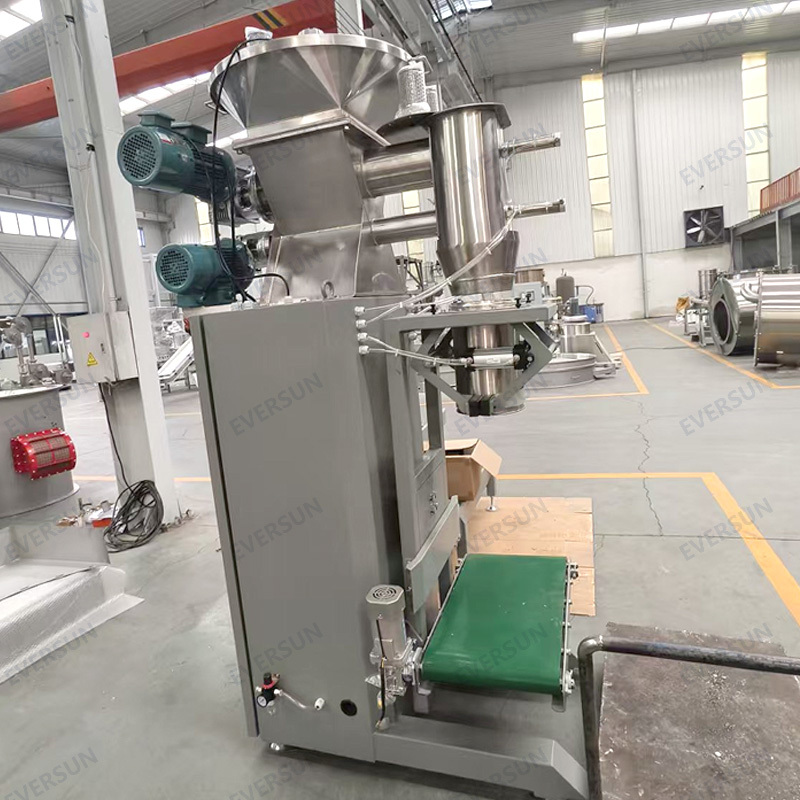

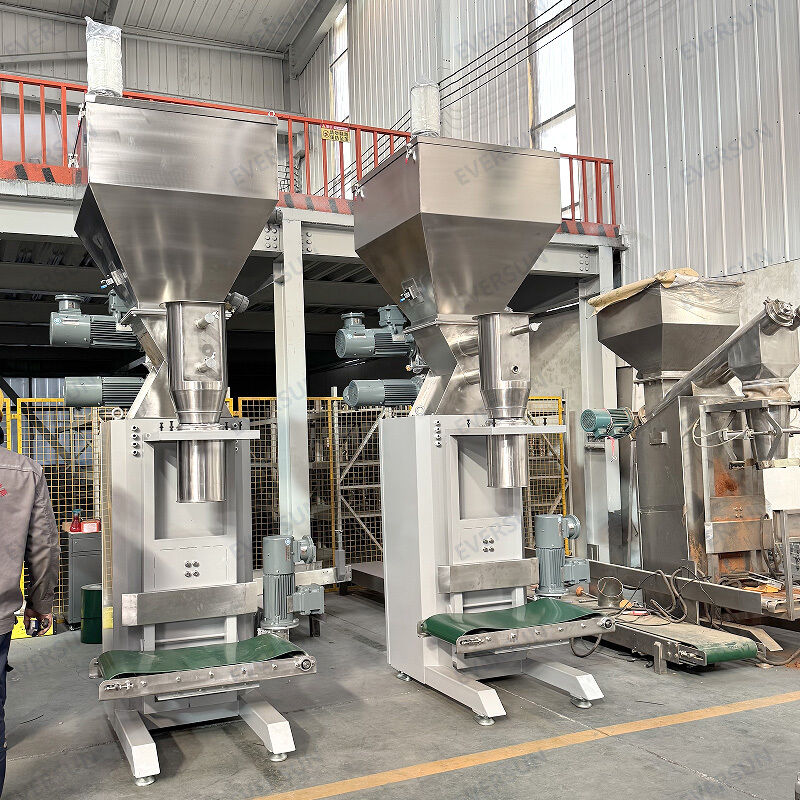

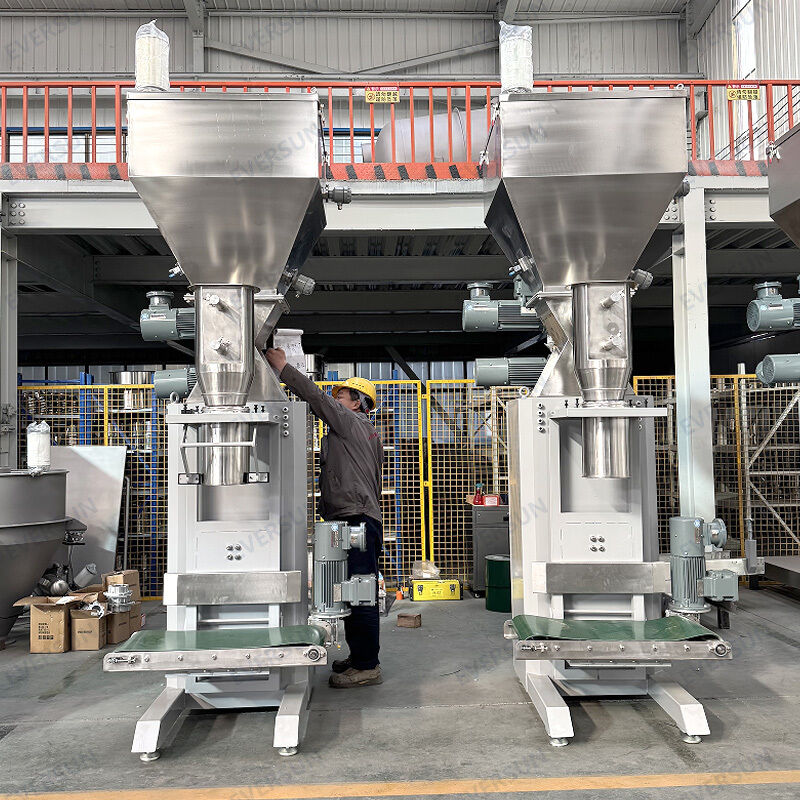

The 25KG powder packaging machine is suitable for quantitative packaging of various powdered materials. Constructed primarily from 304 stainless steel, it features a precise weighing control system that automatically completes the entire process including feeding, metering, bag clamping, discharging, and sealing. It effectively addresses dust generation during powder handling, offering excellent sealing performance and stable measurement accuracy. Ideal for packaging chemical raw materials, food additives, feed, mineral powders, and other materials in 25-kilogram woven or paper bags, the machine supports dust-free operation and is easy to use, significantly reducing labor intensity. It is widely used in powder processing plants, chemical, and building materials production lines.

Working Principle

Materials enter the weighing hopper for gravity feeding. It uses coarse & fine feeding to guarantee precise 25kg weighing. After bag clamping, materials discharge automatically. Real-time signal feedback from weighing sensors realizes closed-loop control. The built-in dust-proof structure avoids powder leakage for continuous powder bagging.

Features & Advantages

1.High weighing precision, adopts coarse and fine two-stage feeding to ensure stable 25kg quantitative packaging.
2.Stainless steel contact parts, optional 304/316, suitable for food, chemical and other powder materials.
3.Automatic bag clamping design, equipped with dust collection device to effectively prevent powder flying.
4.PLC intelligent control system, easy parameter setting and simple operation.
5.Wide adaptability, compatible with woven bags, paper bags and other packaging bags.
6.Compact structure, stable operation, low failure rate, suitable for continuous production line work.

Production Line Diagram

1.The bucket elevator transports the material into a storage hopper
2.The hopper has 2 outlets, each outlet connect with a screw conveyor
3.The screw conveyor transport the material to the bag-filling machine, the filling weight can be adjustable/customized
4.The filled bag will be sealed by the bag-sealing machine
