5-50kgs Bag Packing Machine

Product Shows

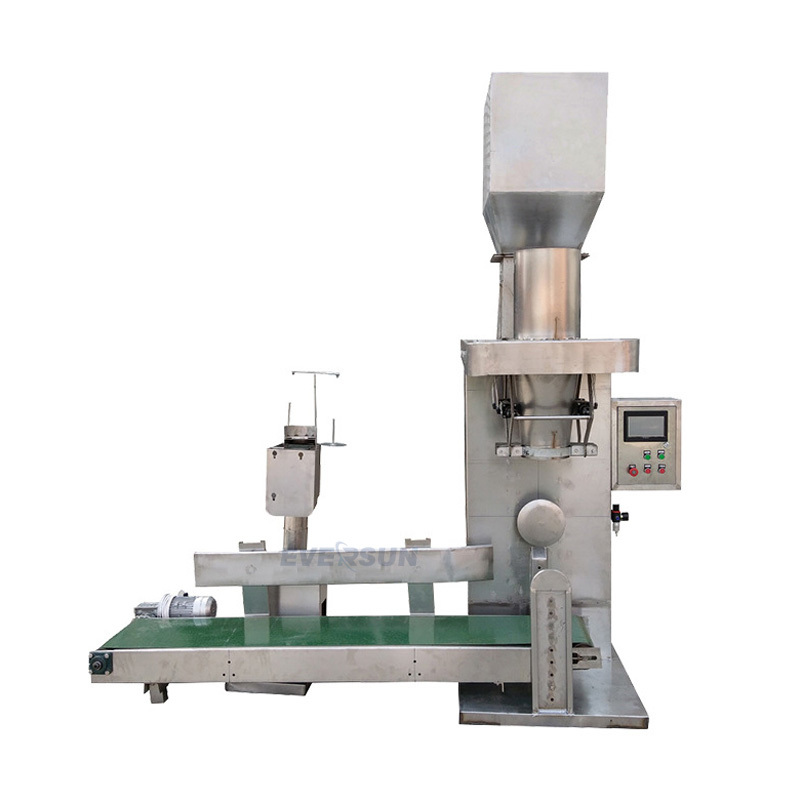

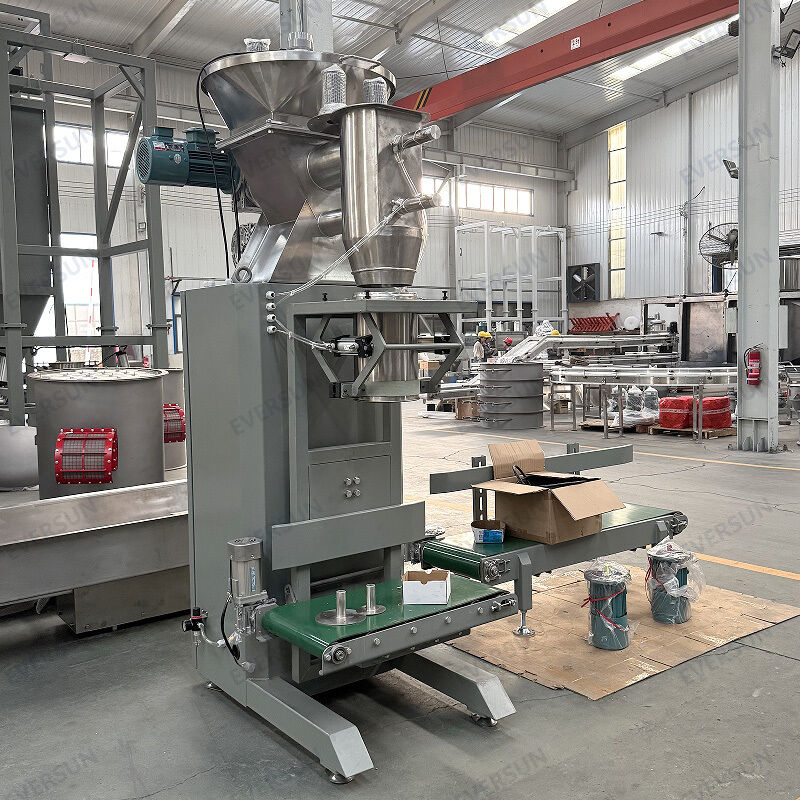

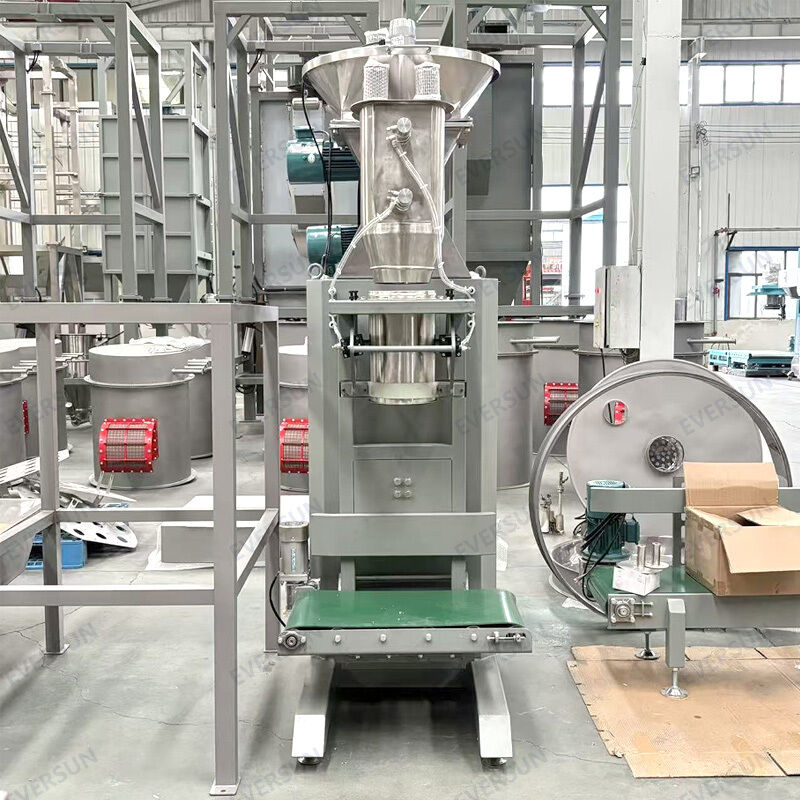

The 25KG powder packaging machine is suitable for various powdered materials and enables 25-kilogram quantitative bagging operations. Constructed primarily from 304 stainless steel, the machine features high-precision weighing, automatic material discharge, and automatic sealing functions. It can be equipped with a dust collection system to suppress dust dispersion, effectively improving workshop conditions. The equipment operates stably and is compatible with chemical powders, food ingredients, building materials, feed powders, and other similar materials. It supports automatic packaging of open bags, offering simple operation and convenient maintenance. This significantly enhances packaging efficiency and reduces manual feeding errors, making it widely used in powder production lines.

Working Principle

The equipment is preset with a target weight of 25kg. The materials are conveyed by a screw conveyor into the metering bin. First, coarse feeding is carried out, followed by fine feeding. The weighing sensor continuously monitors the weight. Once the set value is reached, the feeding stops automatically. The powder falls into the packaging bag. The dust removal device simultaneously suppresses dust. After the discharging is completed, the bag is sewn, achieving precise and quantitative filling of the powder.

Features & Advantages

1.High weighing precision, adopts coarse and fine two-stage feeding to ensure stable 25kg quantitative packaging.
2.Stainless steel contact parts, optional 304/316, suitable for food, chemical and other powder materials.
3.Automatic bag clamping design, equipped with dust collection device to effectively prevent powder flying.
4.PLC intelligent control system, easy parameter setting and simple operation.
5.Wide adaptability, compatible with woven bags, paper bags and other packaging bags.
6.Compact structure, stable operation, low failure rate, suitable for continuous production line work.

Production Line Diagram

1.The bucket elevator transports the material into a storage hopper
2.The hopper has 2 outlets, each outlet connect with a screw conveyor
3.The screw conveyor transport the material to the bag-filling machine, the filling weight can be adjustable/customized
4.The filled bag will be sealed by the bag-sealing machine

Product Parameters

Product details

Product Display

Packaging & Shipping

Why Choose Us

About Us
