5-50kgs Bag Packing Machine

Product Shows

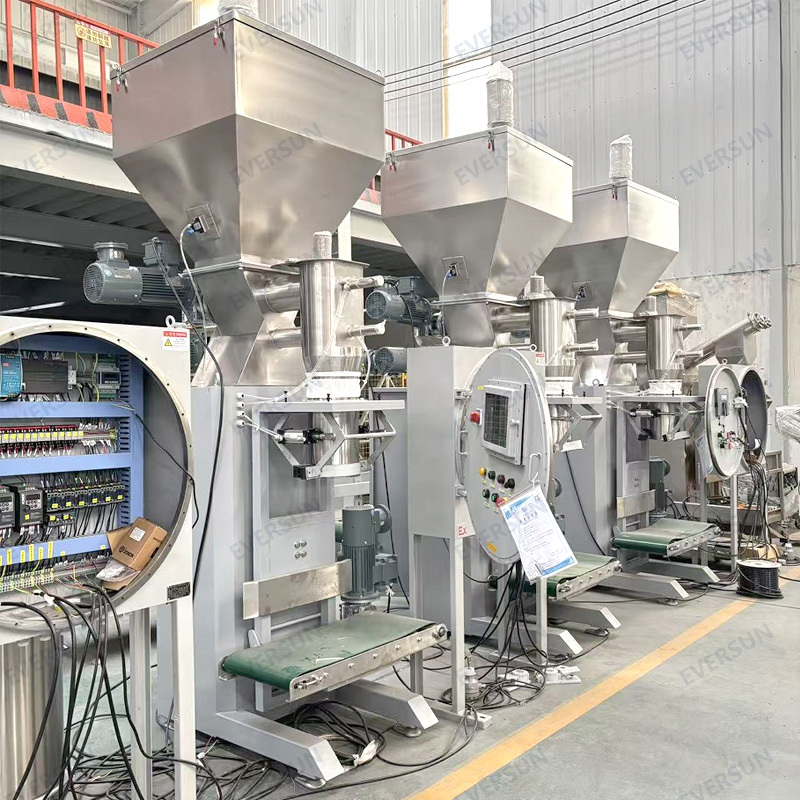

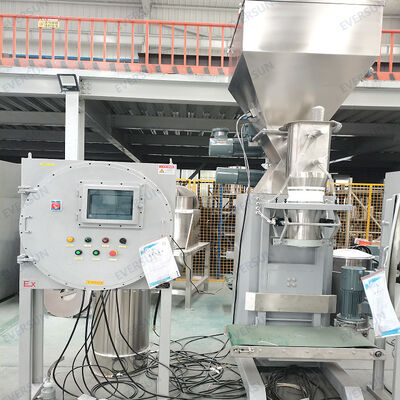

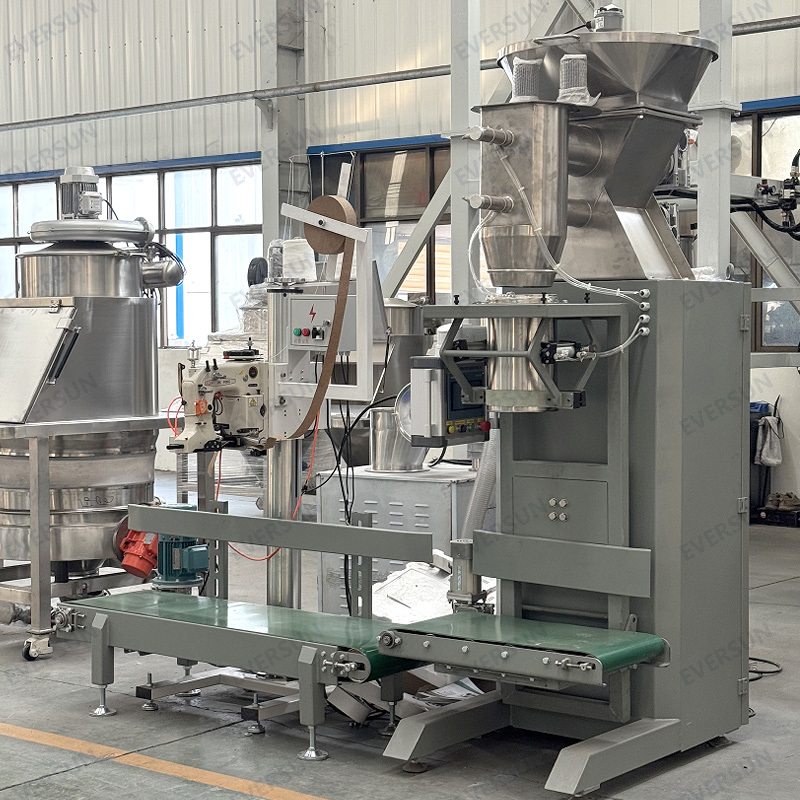

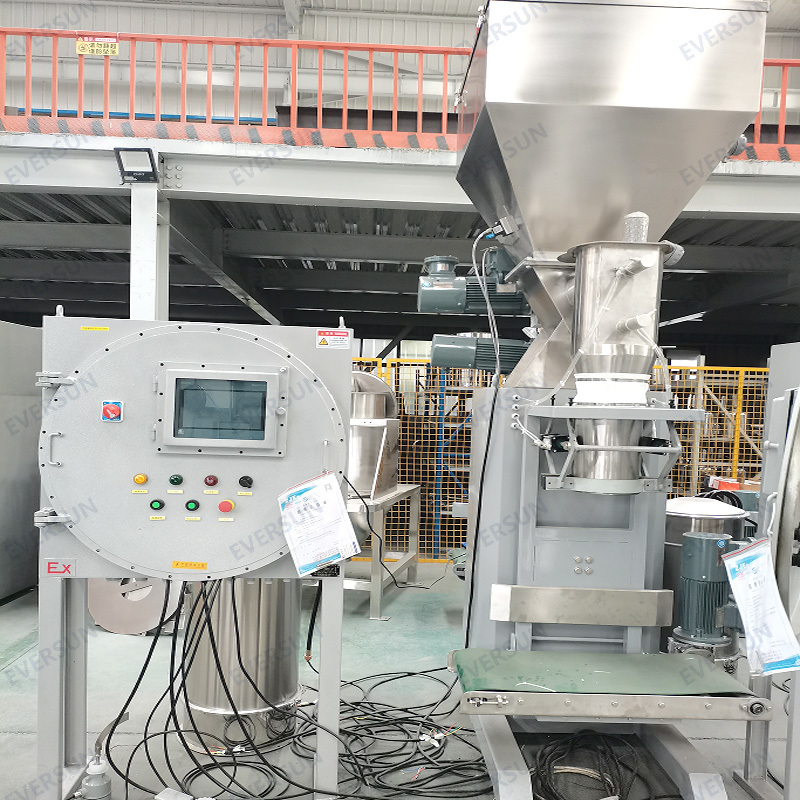

The 25KG powder packaging machine features a stainless steel body, suitable for materials such as starch, calcium powder, feed, and chemical powders. It offers precise dosing, comes with built-in dust collection and anti-dust design, and integrates automatic filling and sealing in one unit. Simple to operate, it is ideal for continuous factory production, significantly reducing labor requirements. It is widely used in the food, chemical, and building materials industries.

Working Principle

The equipment is set to target a weight of 25kg by using a weighing sensor system. The materials are discharged from the silo into the packaging bags. Real-time weight data is collected. When the set value is reached, the feeding stops automatically. A dust removal device is also provided to simultaneously absorb dust. After filling, it is transported to the bag-sealing workstation for automatic bag sealing. The entire process is controlled by an electronic control system to complete continuous packaging.

Features & Advantages

1. Precise weighing with minimal error, ensuring each bag dispenses 25kg of standard output.
2. Available in 304/316 stainless steel, resistant to corrosion, suitable for both food and chemical industries.
3. Equipped with dust removal structure, resulting in less dust and a clean workshop environment.
Integrated filling, conveying, and bag sealing, with high automation level and reduced need for manual labor.
4. Simple operation panel, parameter adjustment can be done with one click, easy to operate.
The body is sturdy and wear-resistant, capable of long-term continuous stable operation.
5. Compatible with various fine powders such as starch, calcium powder, feed, and chemicals.
6. Compact in size, can be paired with feeding machines, conveyors to form a continuous production line.

Production Line Diagram

1.The bucket elevator transports the material into a storage hopper
2.The hopper has 2 outlets, each outlet connect with a screw conveyor
3.The screw conveyor transport the material to the bag-filling machine, the filling weight can be adjustable/customized
4.The filled bag will be sealed by the bag-sealing machine
