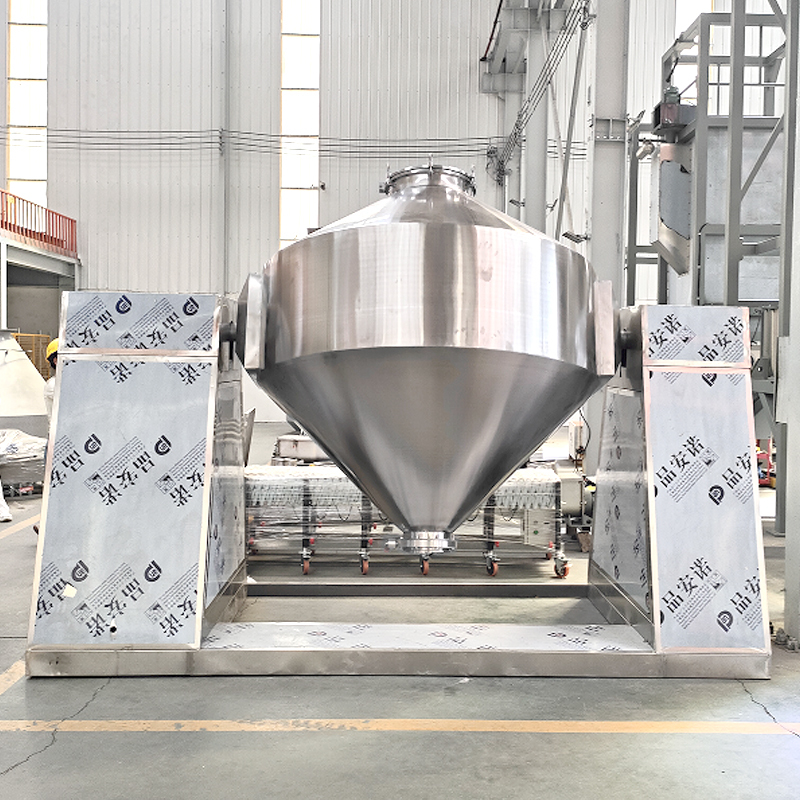

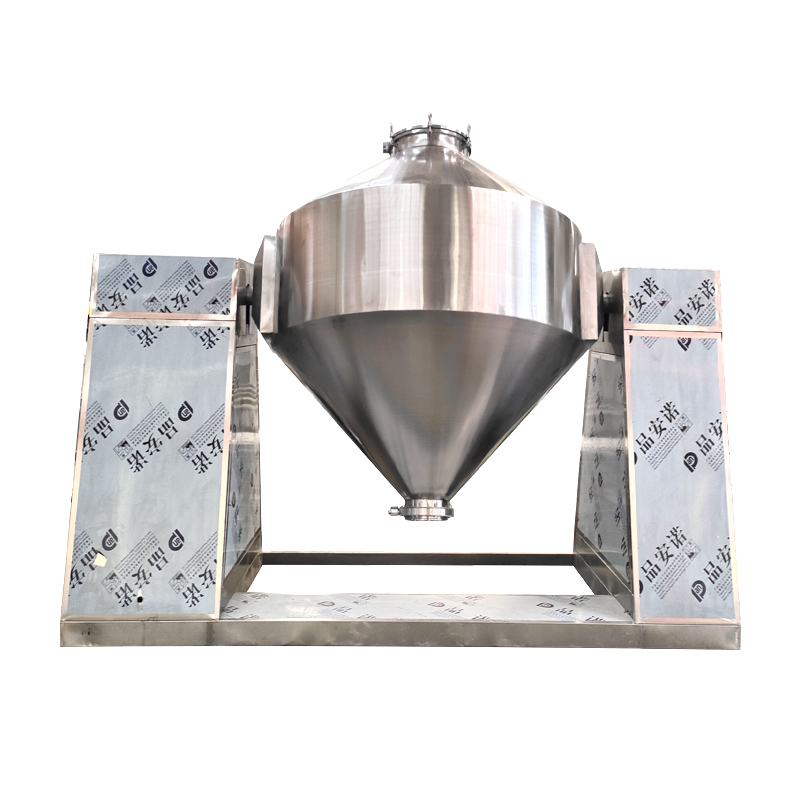

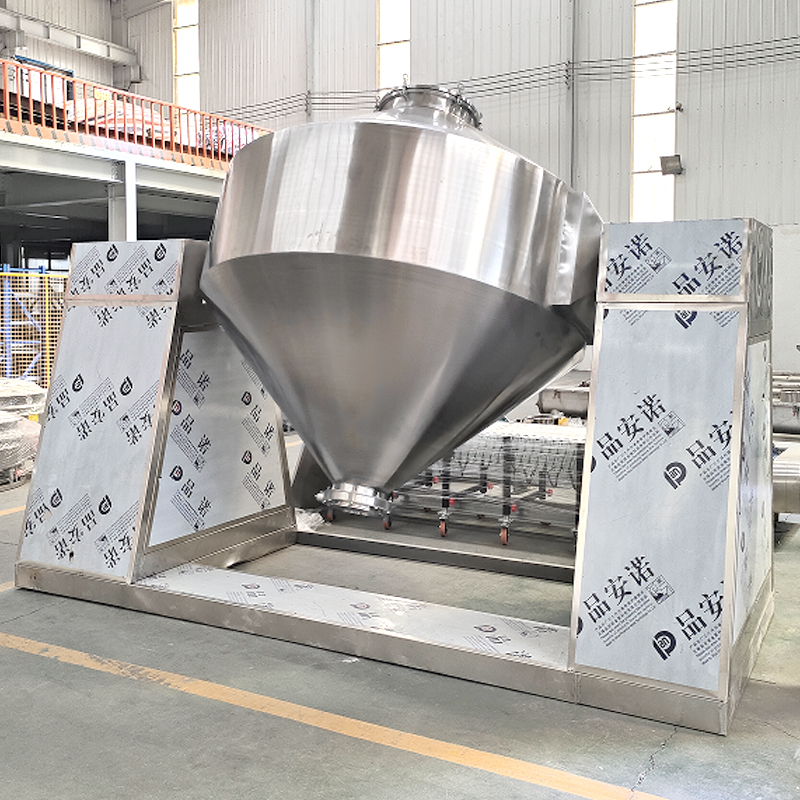

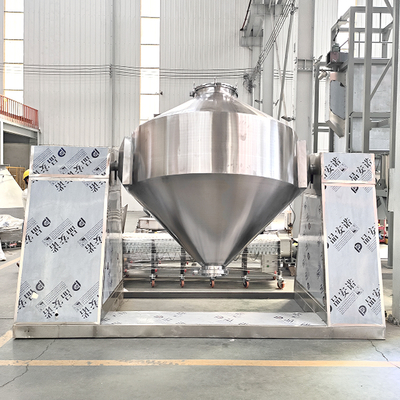

Double Cone Mixer

Product description

The double-cone mixer is an efficient powder mixing equipment. Its main body is composed of two conical cylinders connected together and is driven by a motor to rotate around a horizontal axis. Its sealing design effectively reduces dust leakage and is widely used for mixing powder and granular materials in industries such as medicine, food, and chemical engineering. The capacity selection of the equipment is flexible, the operation is simple, the mixing uniformity is high, the residual material amount is low, and the structural design is convenient for cleaning and maintenance, meeting the dual requirements of high mixing efficiency and high cleanliness in batch production.

Working principle

The working principle of the double-cone mixer is based on the dynamic movement of the materials within the rotating cylinder to achieve mixing. When the equipment is running, the motor drives the double-conical cylinder to rotate at a constant speed around the horizontal axis. The materials inside the cylinder are lifted to a higher position as the cylinder rotates and then fall under the influence of gravity. During the continuous rotation process, the materials continuously undergo actions such as convergence, dispersion, interlaced flow, and flipping within the two cones. Through repeated changes in spatial positions, the initial stratified state of the materials is broken, and finally, different powders or granular materials are uniformly mixed.

Product characteristics

1. High uniformity of mixture: Through the rotation of the cylinder, the materials are flipped and mixed by convection, reducing local stagnation. It is particularly suitable for the uniform mixing of multi-component powders or granular materials.
2. Little residue, easy to clean: The conical structure design reduces dead corners, and the inner wall is polished, resulting in less material adhesion. The subsequent cleaning is more convenient, meeting the hygiene requirements of industries such as pharmaceuticals and food.
3. Strong adaptability: It can handle dry powders, granules and low-viscosity materials. Some models, when equipped with a vacuum system, can also be used for drying and mixing of heat-sensitive materials, providing a wider range of applications.
4. Stable operation, low energy consumption: The structure is simple, without complex stirring components. During operation, it has low vibration and low noise, and the energy consumption is relatively more economical compared to traditional stirring-type equipment.

Application

1. High uniformity of mixture: The conical structure enables the materials to flow freely, reducing stagnation, especially suitable for powders/particles with similar densities. High uniformity of mixture: The conical structure enables the materials to flow freely, reducing stagnation, especially suitable for powders/particles with similar densities. High uniformity of mixture: The conical structure enables the materials to flow freely, reducing stagnation, especially suitable for powders/particles with similar densities.
2. Low residual content: Smooth inner wall + no dead corner design, the residual after discharging is much lower than that of equipment with stirring paddles, suitable for high-value materials.
3. Good sealing performance: The fully enclosed structure reduces dust leakage, meeting the clean production standards of industries such as medicine and food.
4. Simple maintenance: No complex components, low failure rate, and lower maintenance cost than paddle or blade type equipment.
5. Lower energy consumption: Mixed by gravity and rotation, no need for high-power motor, and the operating cost is more economical.
6. Wide applicability: Suitable for drying powders/particles and small amounts of liquid mixing, with little damage to fragile materials.

Product parameter

Detail display

Product display

Packaging & Shipping

 Why choose us

About us

Company Profile
