Double Cone Mixer
Product description
The double-cone mixer is a commonly used powder mixing equipment in the industrial field, named for its unique double-cone cylinder. During operation, the cylinder rotates around the central axis. Under the action of gravity and centrifugal force, the materials are continuously lifted, flipped and thrown off, achieving efficient and uniform mixing. This equipment is easy to operate. Just set the parameters and it can run automatically. It is convenient to load and unload materials. Moreover, its internal structure is simple with no dead corners, which is convenient for cleaning and maintenance. It can effectively avoid material residue and cross-contamination. It features high mixing efficiency, low energy consumption and wide application range. In industries such as chemical engineering, food and medicine, it can achieve large-scale continuous or intermittent mixing operations of materials with small differences in particle size and density, effectively ensuring the stability of product quality.
Working principle
When the double-cone mixer is in operation, the double-cone cylinder continuously rotates around the central axis, driving the materials inside the cylinder to rotate along with it. Under the combined effect of gravity and centrifugal force, the materials are constantly thrown to the edge of the cylinder and then fall due to gravity, forming a complex movement trajectory of up and down flipping and left and right movement. During this process, convective mixing enables the overall regional exchange of materials within the cylinder. Shear mixing breaks agglomeration and promotes uniform distribution through the shear force generated by the speed differences between materials. Diffusion mixing enhances the degree of mixing at the microscopic level by utilizing the random movement of material particles. Multiple mixing methods operate in coordination to quickly mix materials of different components and properties evenly. Meet the demands of industrial production.
Product characteristics
1. Structure: The double-conical cylinder body is uniquely designed, compact in structure, occupies a small area, and is convenient for installation and layout.
2. Performance: High mixing efficiency, multiple mixing methods work in coordination, uniformity exceeds 99%, and material segregation is avoided.
3. Scope of application: Widely used in multiple industries such as chemical engineering, food, and medicine, it is suitable for powdery and granular materials.
4. Operation and Maintenance: The operation is automated. It runs automatically after parameter setting, and the loading and unloading of materials are convenient. The interior has no dead corners, is easy to clean and meets hygiene standards.
5. Operation: Smooth operation with low vibration and noise; It has low energy consumption, saving about 30% energy compared with similar equipment, reducing costs and increasing efficiency.
Application
The double cone blender, with its excellent structure and reasonable design concept, features rapid mixing, uniform mixing, ease of operation, convenient cleaning,urdiness, compact structure, and high technological content. It is widely used in industries such as pharmaceuticals, food, pesticides, zinc oxide, detergents medicine, compound fertilizers, feed, oil, metallurgy, building materials, coatings,
dye pigments, additives, calcium carbonate, biology, ceramics, chemicals fragrance, chicken essence, seasonings, tea, chemical building materials, coatings, plastics and rubbers, seasonings, etc., for mixing powdered materials.
Product parameter
| Model |
W-300 |
W-500 |
W-1000 |
W-1500 |
W-2500 |
W-4000 |
W-6000 |
W-8000 |
|
Production capacity
(kg/time)
|
150 |
250 |
500 |
750 |
1250 |
2000 |
3000 |
4000 |
|
Full volume
(cubic meter)
|
0.3 |
0.5 |
1 |
1.5 |
2.5 |
4 |
6 |
8 |
|
Mixing time
(min)
|
4-8 |
4-8 |
6-12 |
6-12 |
6-12 |
6-15 |
6-15 |
6-15 |
|
Motor power
(KW)
|
1.1 |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
| Cylinder speed (RPM) |
15 |
15 |
12 |
12 |
12 |
10 |
10 |
10 |
|
Dimension
(L*W*H)
|
1680*650
*1600
|
2080*750
*1900
|
2150*850
*2100
|
2300*1600
*3100
|
2500*1000
*2450
|
2980*1580
*2800
|
3500*1800
*3000
|
3980*2000
*3200
|
| Weight (kg) |
310 |
550 |
800 |
950 |
1650 |
1880 |
2350 |
2680 |

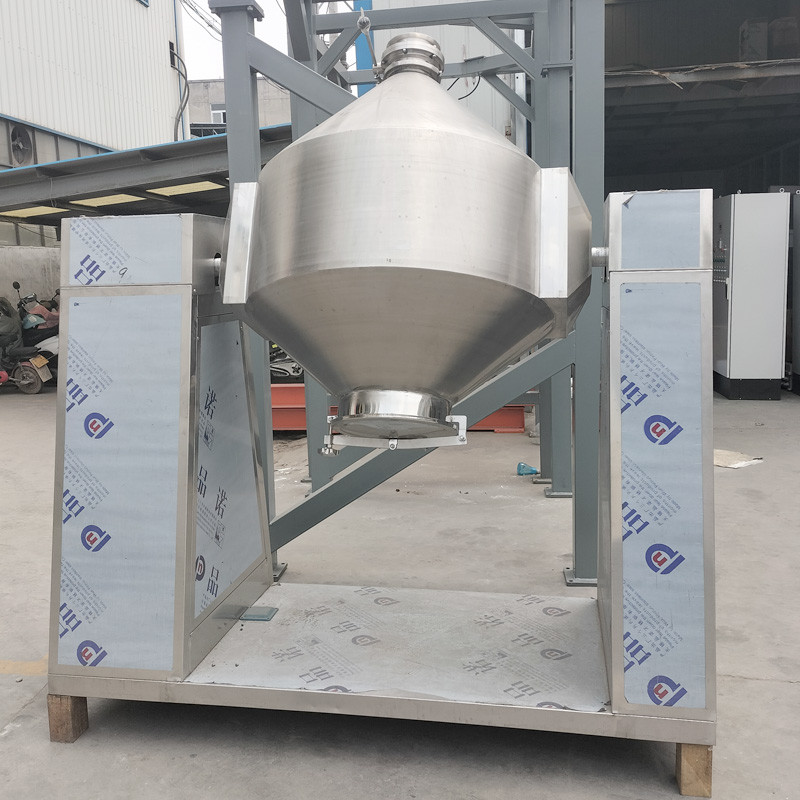

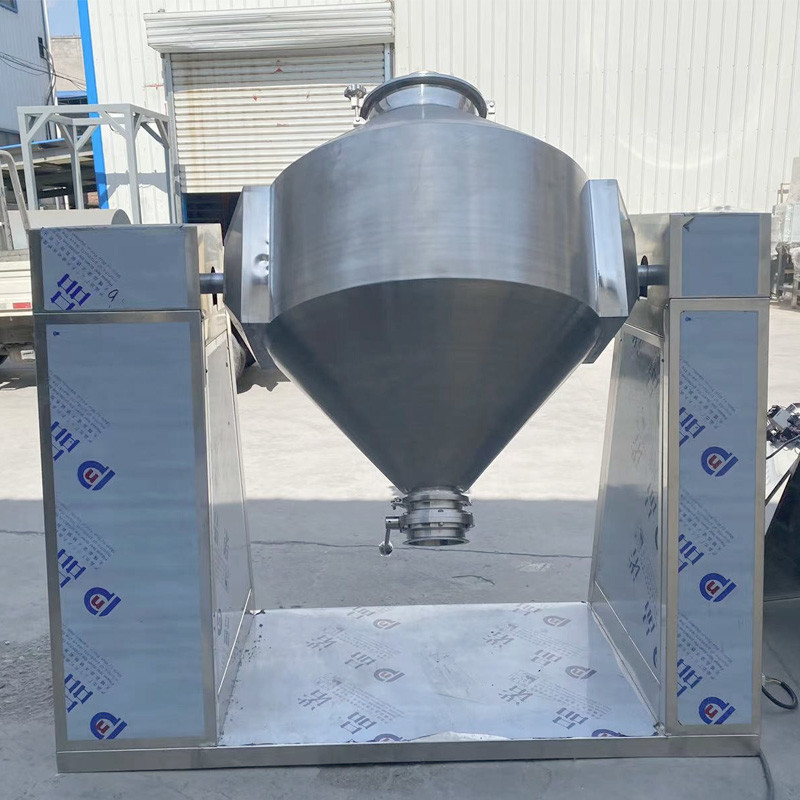

Detail display

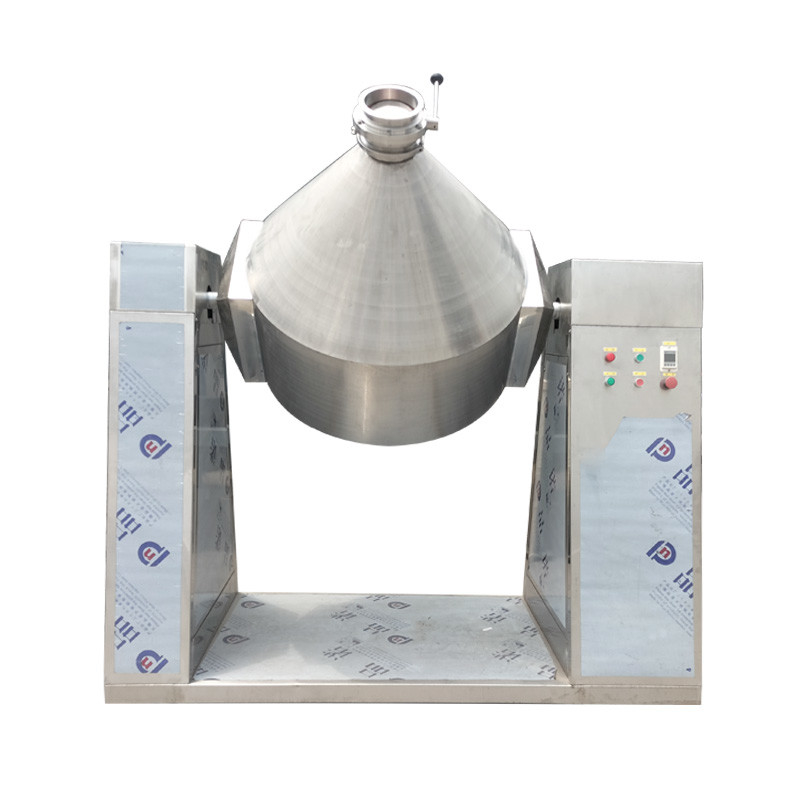

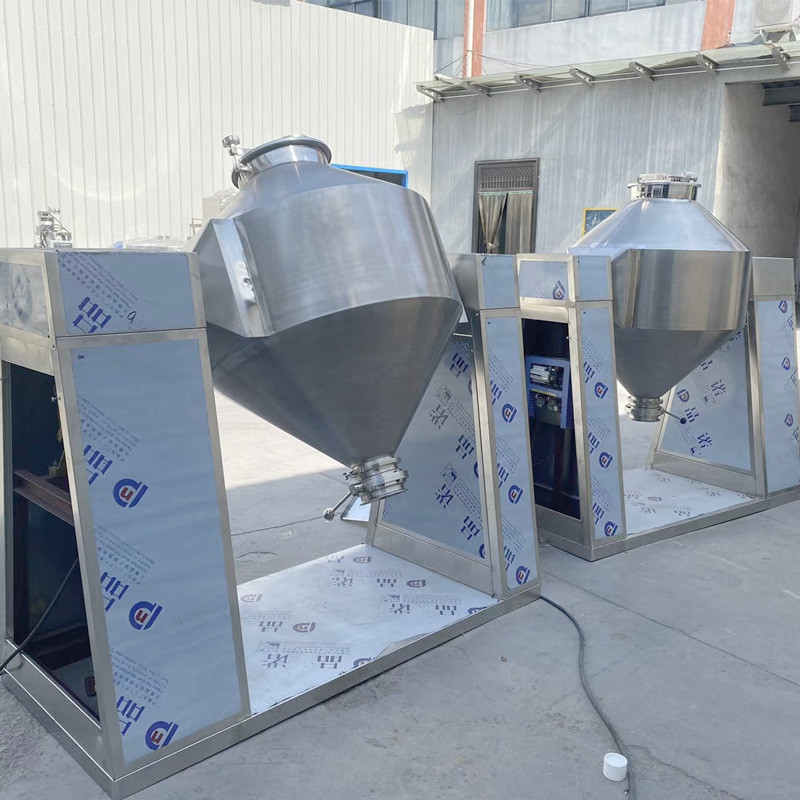

Product display
