Double Cone Mixer
Product description
The double-cone mixer is a common and highly efficient mixing equipment. Its unique double-cone cylinder structure rotates around a horizontal axis driven by a motor. Materials simultaneously undergo up and down flipping, internal and external circulation, and convection movement inside the cylinder. Through diffusion, shearing, and convection, it can uniformly mix powdery and granular materials of different proportions and particle sizes in a relatively short time. It features high mixing efficiency, good mixing accuracy and convenient unloading, and is widely used in the chemical, food, pharmaceutical, feed and other industries.
Working principle
The working principle of the double-cone mixer is based on the combination of mechanical motion and material properties. When the equipment is in operation, the unique double-conical cylinder continuously rotates around a horizontal axis. Relying on the friction between the inner wall of the cylinder and the material, it drives the material to rise along the cylinder wall. When the materials reach a certain height, they naturally fall under the action of gravity, causing the materials to flip up and down.
Meanwhile, due to the special structure of the double cone, the materials inside the cylinder will generate bidirectional convection. Some materials flow from one end of the cone to the other, while the other part flows in the opposite direction, promoting the exchange of materials at different positions. During the rotation process, the material particles are subjected to the combined action of gravity, inertial force and frictional force, interpenetrating and diffusing with each other. Small particles fill the gaps between large particles, achieving diffusion and mixing. The shear force generated between the material particles and between the material and the cylinder wall will also break the material clumps, further enhancing the uniformity of the mixture. Through the synergy of these effects, the double-cone mixer can efficiently and evenly mix powdery and granular materials with different properties.
Product characteristics
1. High mixing efficiency. The special double-cone structure enables the materials to move in multiple directions, achieving highly uniform mixing in a short time.
2. The structure is simple, with few components, convenient maintenance and a low failure rate.
3. It has a wide range of applications and is suitable for powder and granular materials in multiple industries. It also has good adaptability to special materials.
4. The unloading is thorough. The conical design ensures minimal material residue and prevents cross-contamination among batches.
5. It is easy to operate. After setting parameters, it can run automatically, lowering the skill threshold for personnel.
Application
The double cone blender, with its excellent structure and reasonable design concept, features rapid mixing, uniform mixing, ease of operation, convenient cleaning,urdiness, compact structure, and high technological content. It is widely used in industries such as pharmaceuticals, food, pesticides, zinc oxide, detergents medicine, compound fertilizers, feed, oil, metallurgy, building materials, coatings,
dye pigments, additives, calcium carbonate, biology, ceramics, chemicals fragrance, chicken essence, seasonings, tea, chemical building materials, coatings, plastics and rubbers, seasonings, etc., for mixing powdered materials.
Product parameter
| Model |
W-300 |
W-500 |
W-1000 |
W-1500 |
W-2500 |
W-4000 |
W-6000 |
W-8000 |
|
Production capacity
(kg/time)
|
150 |
250 |
500 |
750 |
1250 |
2000 |
3000 |
4000 |
|
Full volume
(cubic meter)
|
0.3 |
0.5 |
1 |
1.5 |
2.5 |
4 |
6 |
8 |
|
Mixing time
(min)
|
4-8 |
4-8 |
6-12 |
6-12 |
6-12 |
6-15 |
6-15 |
6-15 |
|
Motor power
(KW)
|
1.1 |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
| Cylinder speed (RPM) |
15 |
15 |
12 |
12 |
12 |
10 |
10 |
10 |
|
Dimension
(L*W*H)
|
1680*650
*1600
|
2080*750
*1900
|
2150*850
*2100
|
2300*1600
*3100
|
2500*1000
*2450
|
2980*1580
*2800
|
3500*1800
*3000
|
3980*2000
*3200
|
| Weight (kg) |
310 |
550 |
800 |
950 |
1650 |
1880 |
2350 |
2680 |

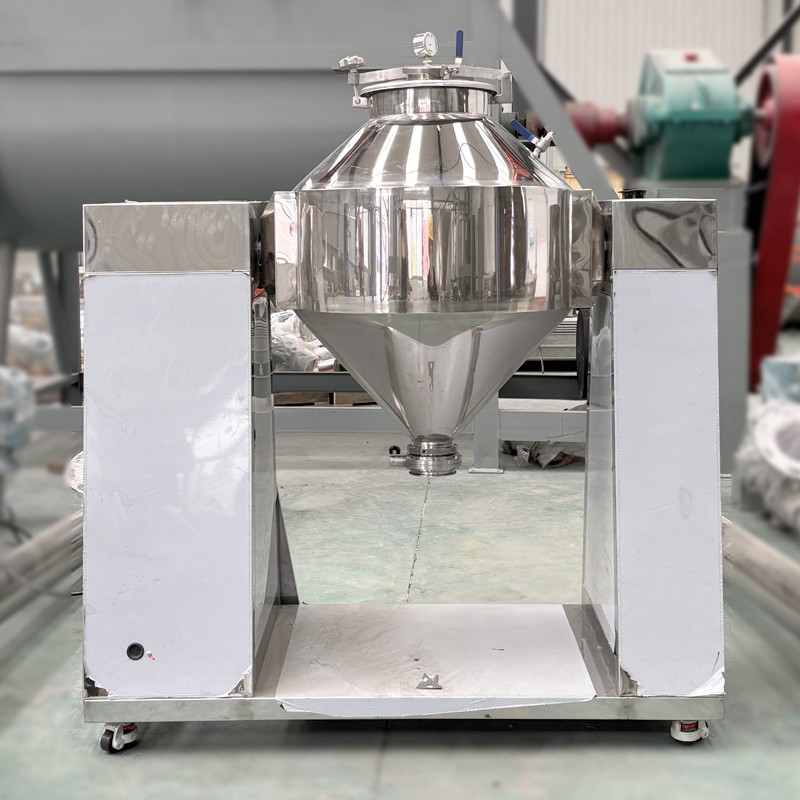

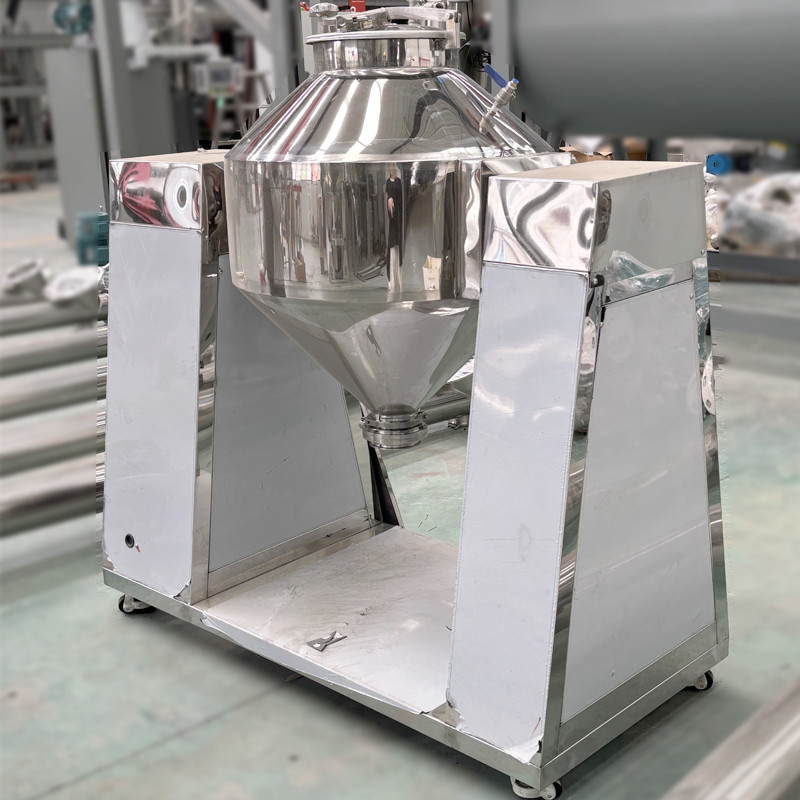

Detail display

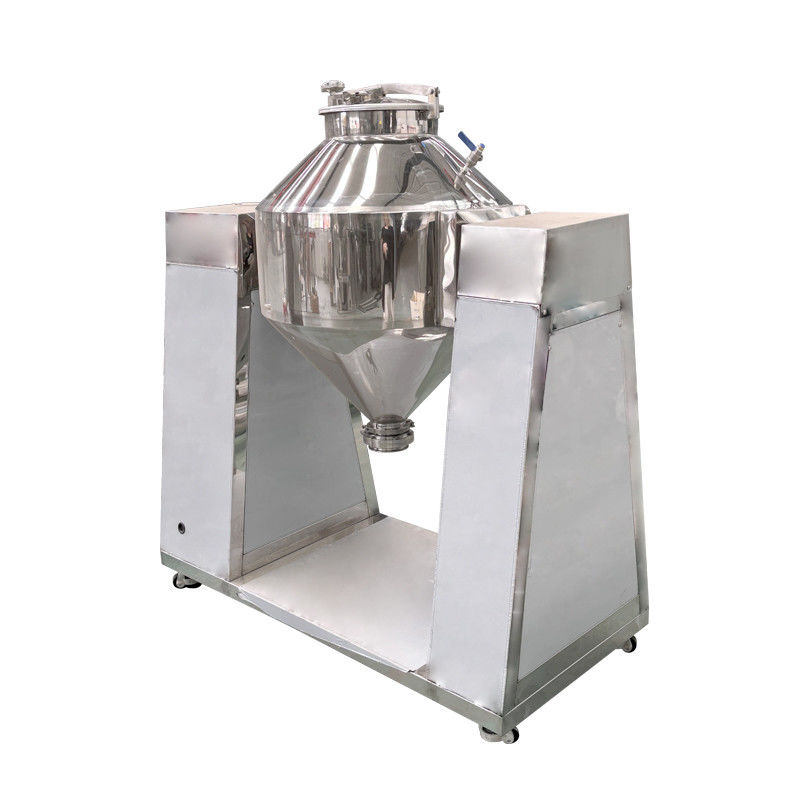

Product display
