Double Cone Mixer
Product description
The main body of the double cone mixer is formed by welding two cone cylinders and a short cylindrical cylinder into a double cone shape. It features high mixing efficiency, low material residue and compact structure. It is suitable for the mixing of various powder and granular materials and is widely used in the chemical, pharmaceutical, food and other industrial fields.
Working principle
When the double-cone mixer is in operation, the equipment rotates around a horizontal axis, driving the materials inside the cone cylinder to constantly roll up and down and fall. At the same time, under the geometric structure of the double-cone cylinder, the materials move in a circular motion along the cylinder wall and generate cross-flow in the radial and axial directions. This compound movement enables the materials to continuously undergo diffusion, convection and shear mixing in three-dimensional space. Coupled with the alternating effect of centrifugal force and gravity generated by the rotation of the conical cylinder, it promotes the interpenetration and position change of different material particles, ultimately achieving uniform mixing. Moreover, during the mixing process, the materials are less affected by mechanical force, making it suitable for scenarios with high requirements for the uniformity of mixing.
Product characteristics
- High mixing efficiency: Materials roll and flow cross-in three-dimensional space, with high uniformity and short mixing time.
- Low residue: The double-cone cylinder structure design is smooth, making it easy for materials to be discharged and reducing residue and contamination.
- Wide applicability: Suitable for powder and granular materials, and also has a good mixing effect on heat-sensitive and easily agglomerated materials.
- Compact structure: Small floor space, easy installation, and flexible connection with production lines.
- Low mechanical damage: The mixing process is gentle, and the material is subjected to less shear force, maintaining its original physical properties.
- Easy operation: It has good sealing performance and can be automatically controlled, reducing manual intervention.
Application
The double cone blender, with its excellent structure and reasonable design concept, features rapid mixing, uniform mixing, ease of operation, convenient cleaning,urdiness, compact structure, and high technological content. It is widely used in industries such as pharmaceuticals, food, pesticides, zinc oxide, detergents medicine, compound fertilizers, feed, oil, metallurgy, building materials, coatings,
dye pigments, additives, calcium carbonate, biology, ceramics, chemicals fragrance, chicken essence, seasonings, tea, chemical building materials, coatings, plastics and rubbers, seasonings, etc., for mixing powdered materials.
Product parameter
| Model |
W-300 |
W-500 |
W-1000 |
W-1500 |
W-2500 |
W-4000 |
W-6000 |
W-8000 |
|
Production capacity
(kg/time)
|
150 |
250 |
500 |
750 |
1250 |
2000 |
3000 |
4000 |
|
Full volume
(cubic meter)
|
0.3 |
0.5 |
1 |
1.5 |
2.5 |
4 |
6 |
8 |
|
Mixing time
(min)
|
4-8 |
4-8 |
6-12 |
6-12 |
6-12 |
6-15 |
6-15 |
6-15 |
|
Motor power
(KW)
|
1.1 |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
| Cylinder speed (RPM) |
15 |
15 |
12 |
12 |
12 |
10 |
10 |
10 |
|
Dimension
(L*W*H)
|
1680*650
*1600
|
2080*750
*1900
|
2150*850
*2100
|
2300*1600
*3100
|
2500*1000
*2450
|
2980*1580
*2800
|
3500*1800
*3000
|
3980*2000
*3200
|
| Weight (kg) |
310 |
550 |
800 |
950 |
1650 |
1880 |
2350 |
2680 |

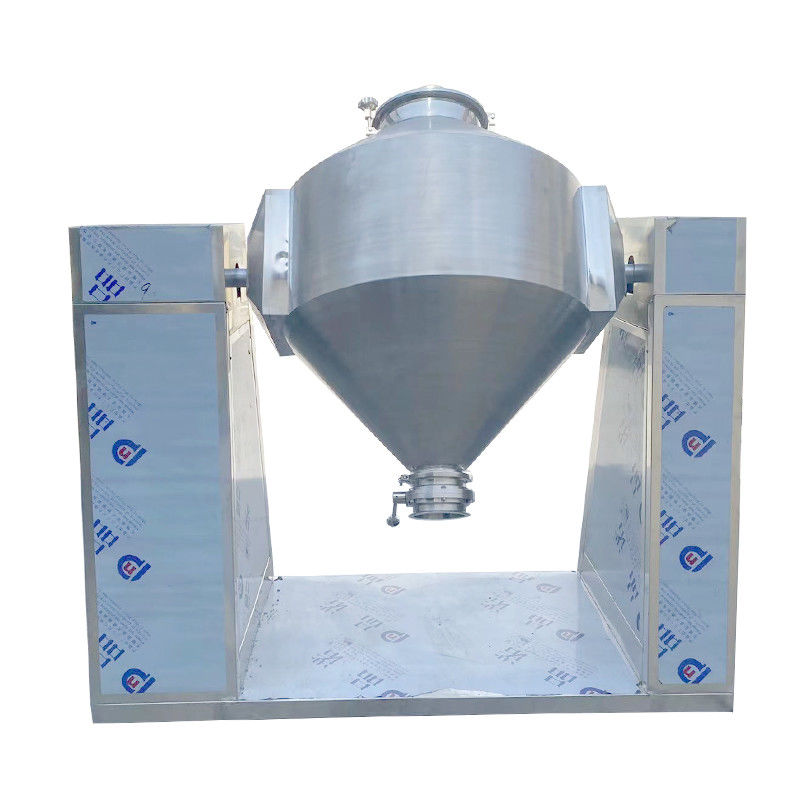

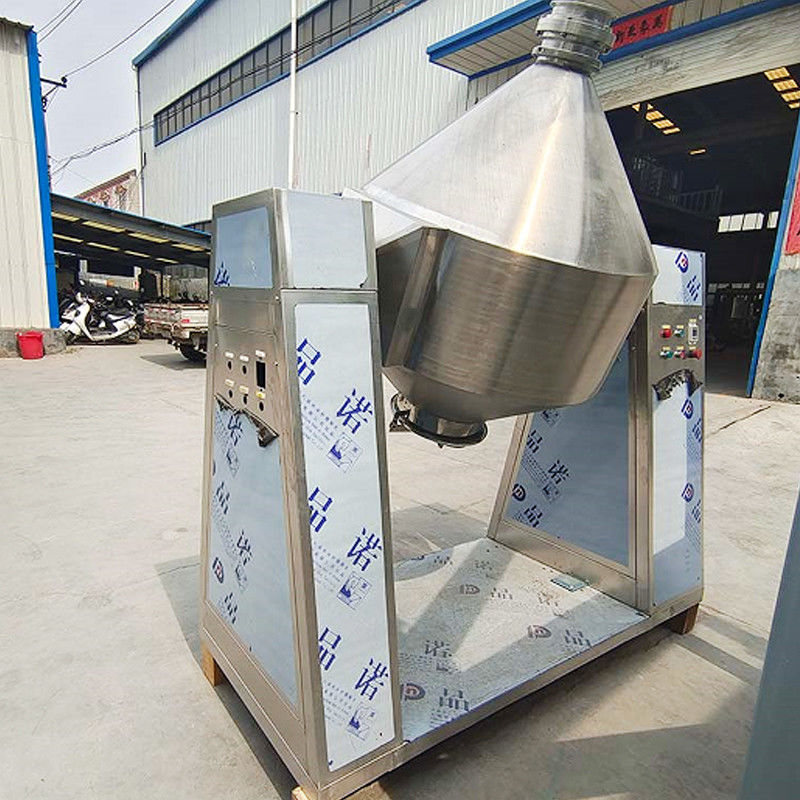

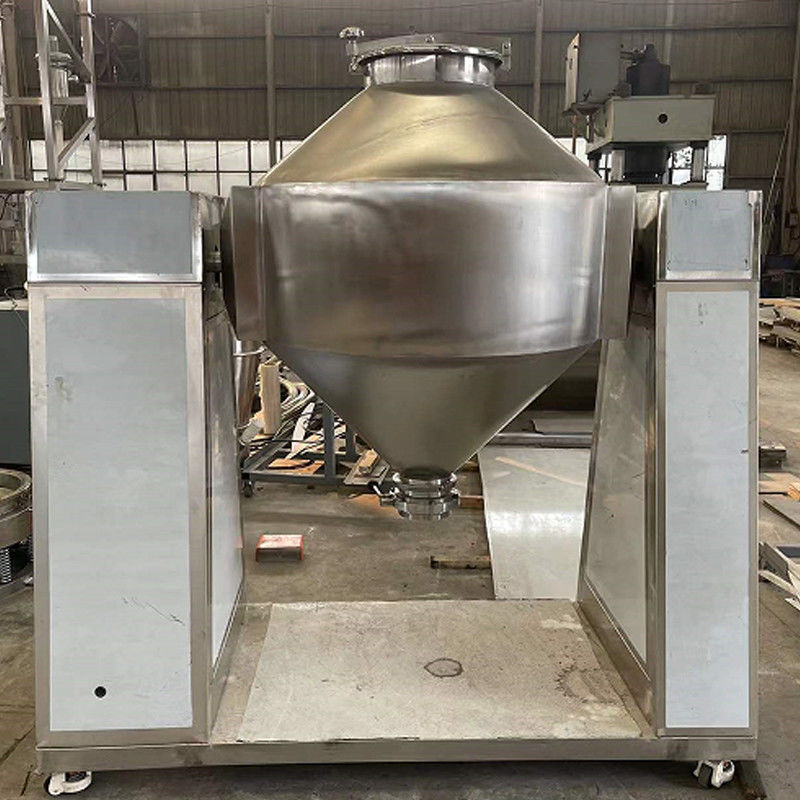

Detail display
