Vibratory Screening Machine
Product description
The rotary vibrating screen is a screening equipment that uses a vertical vibrating motor to generate three-dimensional rotary vibrating force, causing materials to spread in a spiral shape from the center to the periphery on the screen surface. Its screen mesh can be set up in grades according to requirements, and it can efficiently achieve fine screening, filtration or classification of materials of different particle sizes. It features a compact structure, high screening accuracy, large processing capacity, low noise and easy screen mesh replacement. It is widely applied in material separation scenarios in industries such as chemical engineering, food, medicine, and mining.
Working principle
The rotary vibrating screen relies on the three-dimensional compound vibration (horizontal circular motion, vertical jumping and inclined thrust) generated by the rotation of the eccentric weights at the upper and lower ends of the vertical vibrating motor, causing the material to perform a spiral diffusion movement from the center to the periphery on the screen surface. Particles smaller than the screen holes pass through the screen mesh to become the underscreen material, while particles larger than the screen holes are discharged along the edge. By adjusting the eccentricity Angle of the weights, the screening efficiency can be precisely controlled. It is applicable to the fine classification and filtration of materials in the chemical, food and other industries.
Features & Benefits
1.It features both high screening efficiency and high precision
- Three-dimensional vibration trajectory: The vertical motor drives the material to perform spiral diffusion motion, increasing the contact area and time between the material and the screen. The screening efficiency is improved by more than 30% compared with traditional screens, especially suitable for the classification of fine particle materials ranging from 0.074 to 5mm.
- Precise adjustability: By adjusting the eccentric angles (0-90 °) of the upper and lower weights and the counterweights, the movement speed and trajectory of the materials can be flexibly changed to meet the screening requirements of materials of different particle sizes, with an accuracy of over 95%.
2. Compact structure and practical functions
- Small floor space: The circular screen body design usually has a diameter of 0.4 to 2 meters, requiring low installation space and being suitable for compact layout of production lines.
- Screen cleaning and anti-clogging design: Standard equipped with bouncing balls, ultrasonic waves and other screen cleaning devices, effectively solving the problem of screen clogging caused by easily clogging materials such as flour and paint, and reducing the frequency of machine shutdowns for cleaning.
- Strong sealing performance: The fully enclosed screen frame is equipped with rubber sealing rings, ensuring no dust leakage during operation and meeting the hygiene standards of the food and pharmaceutical industries.
3. It is convenient to maintain and has excellent durability
- Easy screen replacement: With a quick-release screen frame structure, it only takes 5 to 10 minutes to replace the screen, reducing maintenance costs.
Long-life components: The vibration motor adopts an aluminum alloy casing for heat dissipation, combined with a spring shock absorption system. The operating noise of the equipment is ≤75dB, and the overall service life of the machine can reach 5 to 8 years.
4. Wide industry applicability
- Strong material compatibility: It can handle materials in different forms such as granules (such as quartz sand), powders (such as milk powder), and slurries (such as paint), and supports both dry screening and wet screening modes.
- Multi-scenario application: Covering fields such as chemical engineering (pigment grading), food (starch filtration), medicine (raw material screening), and mining (quartz sand impurity removal), it is suitable for special material environments such as flammable, explosive, and corrosive materials (explosion-proof motors and stainless steel materials are optional).
Product parameter
| Model |
Equipment diameter |
Power(KW) |
Deck |
Effective screening area(m2) |
Screen mesh |
| EXZS-600 |
600mm/24inch |
0.25 |
1-5 |
0.2289 |
20 microns to 20 mm |
| EXZS-800 |
800mm/32inch |
0.55 |
0.4183 |
| EXZS-1000 |
1000mm/40inch |
0.75 |
0.6359 |
| EXZS-1200 |
1200mm/48inch |
1.1 |
0.9499 |
| EXZS-1500 |
1500mm/60inch |
1.5 |
1.5386 |
| EXZS-1800 |
1800mm/70inch |
3 |
1-4 |
2.2687 |
| EXZS-2000 |
2000mm/78inch |
4.5 |
2.8893 |
Design Drawing Display
Detail display

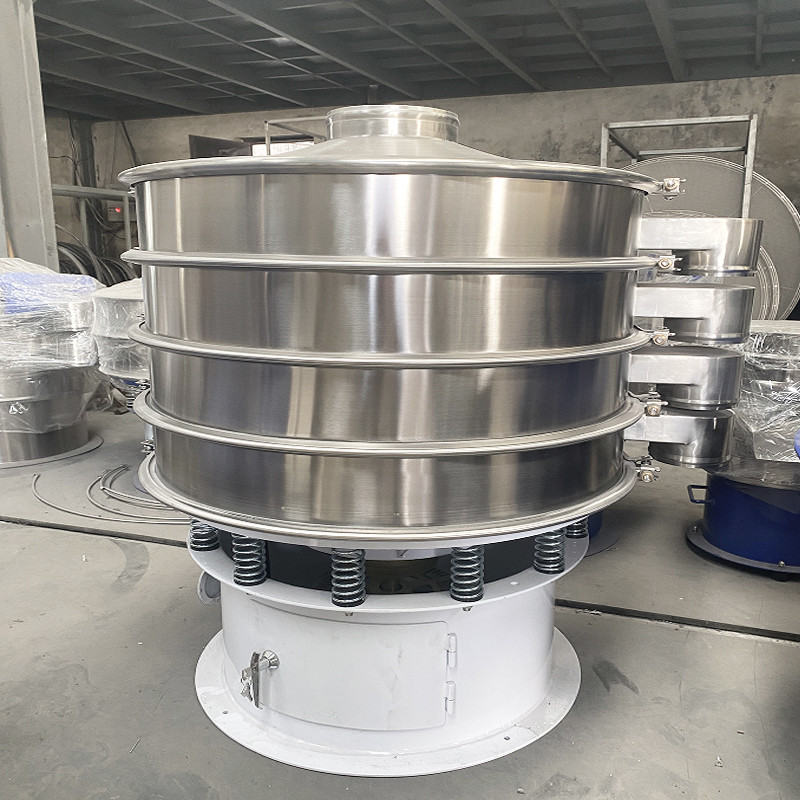

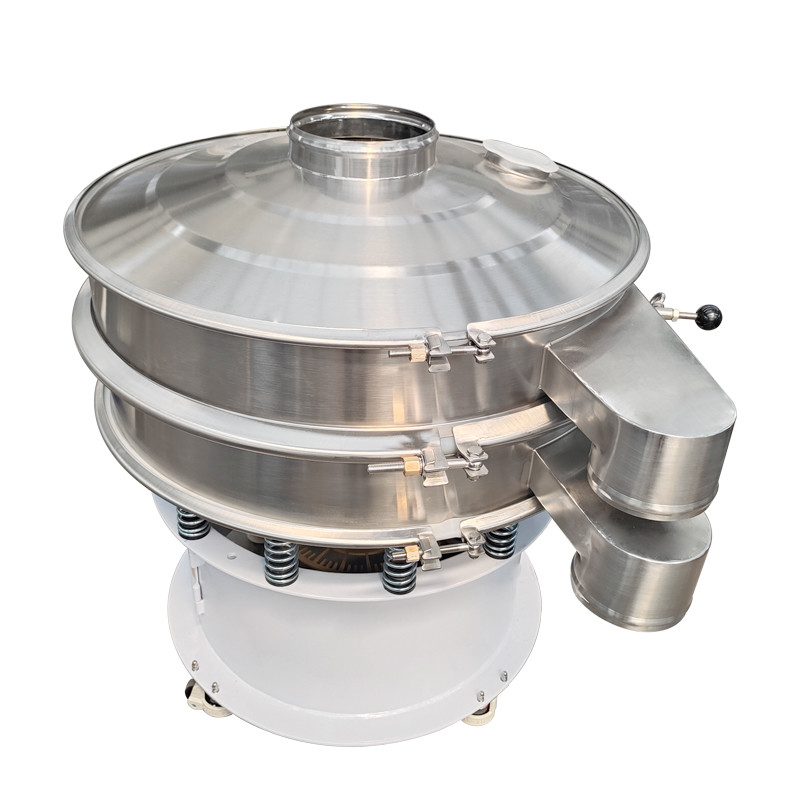

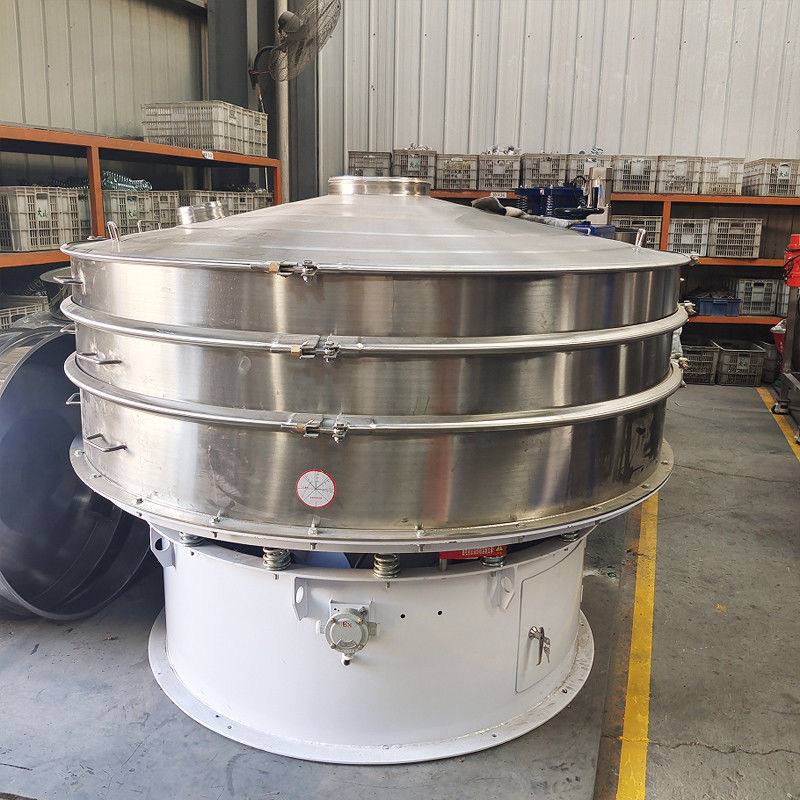

Product display
Application
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
