Vibratory Screening Machine

Product description

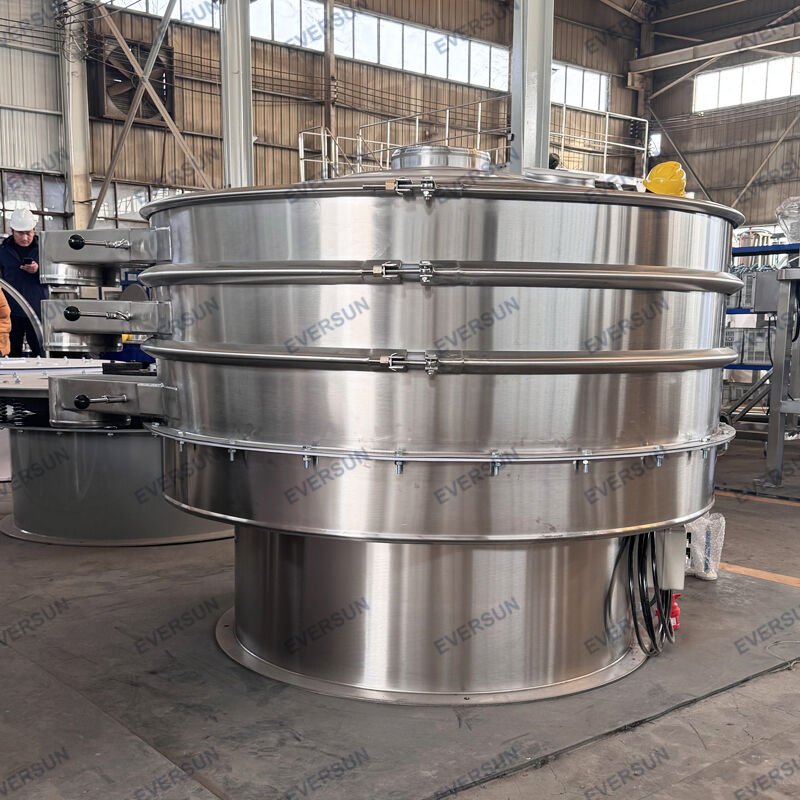

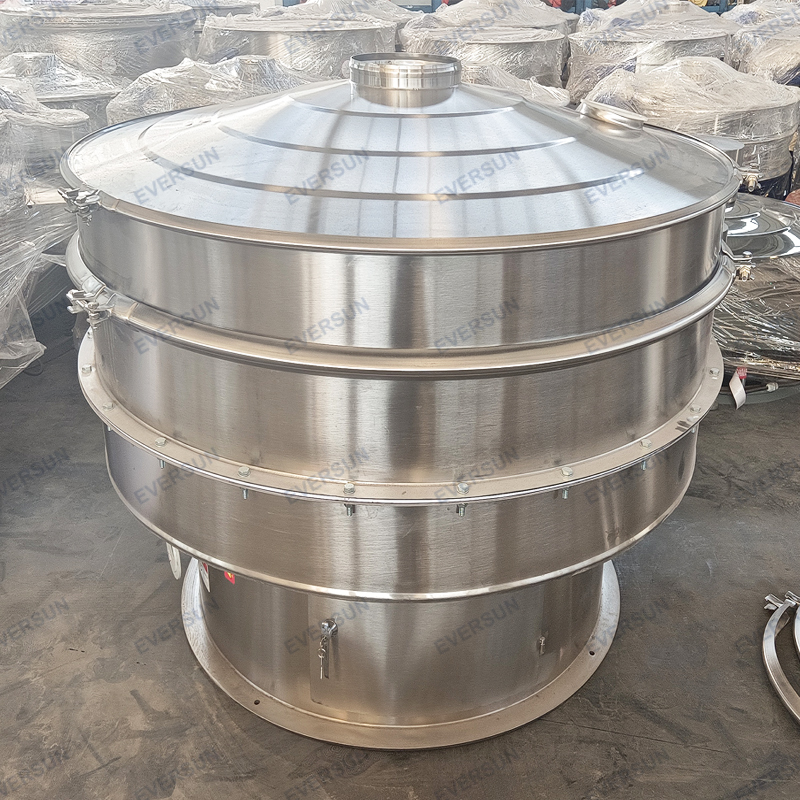

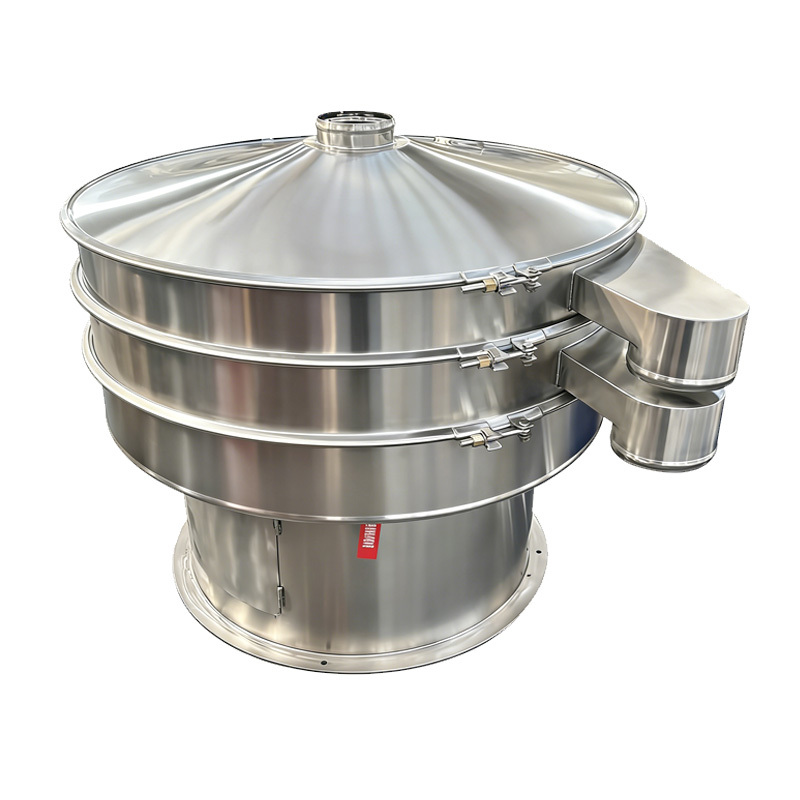

The rotary vibrating screen is a highly efficient and versatile vibrating screening equipment, widely used in various industries such as food, chemical, and metal powder for particle classification, solid-liquid separation, and impurity filtration. Its compact body structure and closed design make it easy to clean and effectively prevent dust from escaping. The equipment operates smoothly with low noise and can flexibly adjust the amplitude and vibration trajectory according to the characteristics of the materials to meet different screening precision and output requirements. With its high screening efficiency and simple operation and maintenance, the rotary vibrating screen has become one of the key equipment for fine screening and filtration in production lines.

Working principle
The rotary vibrating screen is an efficient screening device.The rotary vibrating screen is an efficient screening device. It relies on the three-dimensional vibration force generated by the vibration motor at the top to create a spiral vibration trajectory on the screen surface. Materials are evenly spread, rolled and move forward on the screen surface. It relies on the three-dimensional excitation force generated by the vibration motor at the top to make the screen surface produce a spiral vibration trajectory. Small particles quickly pass through the mesh and separate, while large particles are discharged along the edge, thus achieving rapid and precise screening, filtration or classification. Its structure is compact and operation is stable, and it is widely used in the particle processing links of various industries.

Features & Benefits

1. Efficient screening, high precision: The three-dimensional vibration enables the materials to fully roll and spread, resulting in high screening efficiency and good precision.
2. Fully enclosed dust prevention: The sealed design effectively prevents dust from escaping, meeting the requirements of clean production.
3. Smooth operation and low noise: Excellent dynamic balance, stable equipment operation, and low working noise.
4. Easy mesh replacement, long service life: The mesh is easy to install and remove, and is equipped with a cleaning device to extend service life.
5. Flexible adjustment, universal strength: Adjustable excitation force and movement trajectory, suitable for various material screening.
6. Compact structure, easy maintenance: Simple design, small space occupation, and convenient daily maintenance.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening
