Vibratory Screening Machine

Product description

The rotary vibrating screen is a highly efficient and practical screening equipment. It uses a vibrating motor as the power source and generates centrifugal force through the rotation of eccentric blocks, causing the screen surface to form a three-dimensional vibration. During operation, the materials diffuse in a spiral motion on the screen surface. Particles smaller than the screen holes pass through the mesh and fall down, while those larger than the screen holes are discharged from the edge, achieving precise classification and screening. It features high screening accuracy, large processing capacity, flexible adjustment, good sealing performance and easy maintenance. It is widely used in multiple industries such as chemical engineering, food and medicine, and can quickly and with high quality complete the screening of various granular and powdered materials.

Working principle

The rotary vibrating screen uses a vibrating motor as the power source. The eccentric blocks at both ends rotate at high speed to generate centrifugal force, which is transmitted to the screen box through the motor mounting base and then drives the screen body to produce three-dimensional vibration through the support spring. The vibration of the screen surface is a combination of horizontal circular diffusion, vertical jumping and torsional motion. After the material is added from the center of the screen surface, it is rapidly dispersed under the action of the combined vibration. Fine particles keep jumping and pass through the screen as under-screen material and are discharged, while larger particles spiral along the screen surface to the edge discharge port and are discharged.

Meanwhile, by adjusting the Angle between the eccentric blocks at both ends of the vibrating motor, the magnitude and direction of the centrifugal force can be changed, and the vibration amplitude and frequency of the screen body can be adjusted. This adjustment mechanism enables the rotary vibrating screen to adapt to different materials. Whether it is large particles or fine powders, it can achieve efficient screening in multiple fields such as chemical engineering, food, and medicine.


Features & Benefits

Excellent screening effect: The three-dimensional vibration ensures uniform dispersion of materials, with high screening accuracy. It can precisely separate materials of different particle sizes, effectively avoiding agglomeration and clogging, and can meet the high-precision screening requirements for fine materials.

High production efficiency: The materials move rapidly in a spiral shape on the screen surface, increasing the contact area and frequency with the screen mesh. It has a large processing capacity and can handle a large amount of materials within a unit of time, which helps to improve the overall production efficiency.

Strong adaptability: By adjusting the parameters of the vibration motor, such as the Angle of the eccentric block, the magnitude of the excitation force can be flexibly changed, thereby adapting to the characteristics of various materials and different screening process requirements, and having a wide range of applications.

Excellent environmental performance: The overall structure is compact and well-sealed, which can prevent material leakage and dust flying. It not only keeps the working environment clean but also reduces material waste, meeting environmental protection requirements. It is particularly suitable for the pharmaceutical, food and other industries.

Low maintenance cost: The screen mesh is easy to replace, the equipment structure is simple, and daily inspection, maintenance and repair are easy, which can reduce maintenance costs and downtime, and ensure the continuity and stability of production.

Product parameter

Design Drawing Display

Detail display

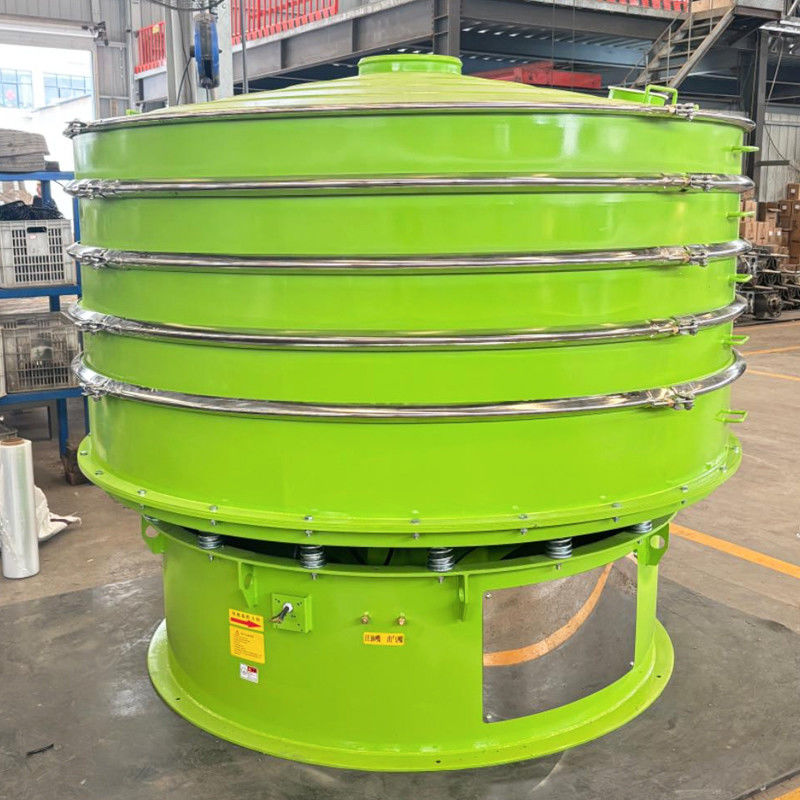

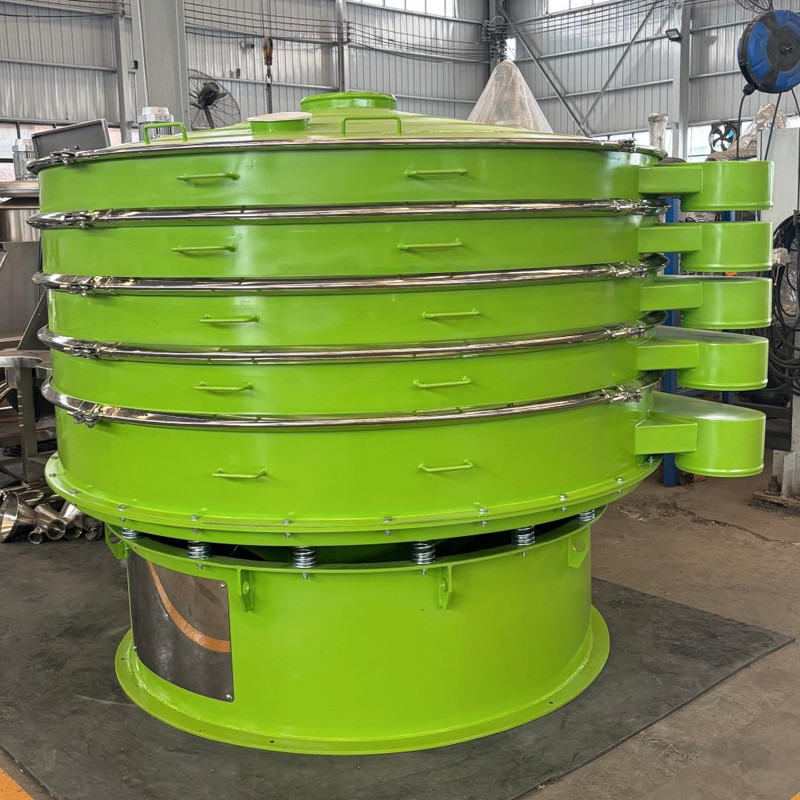

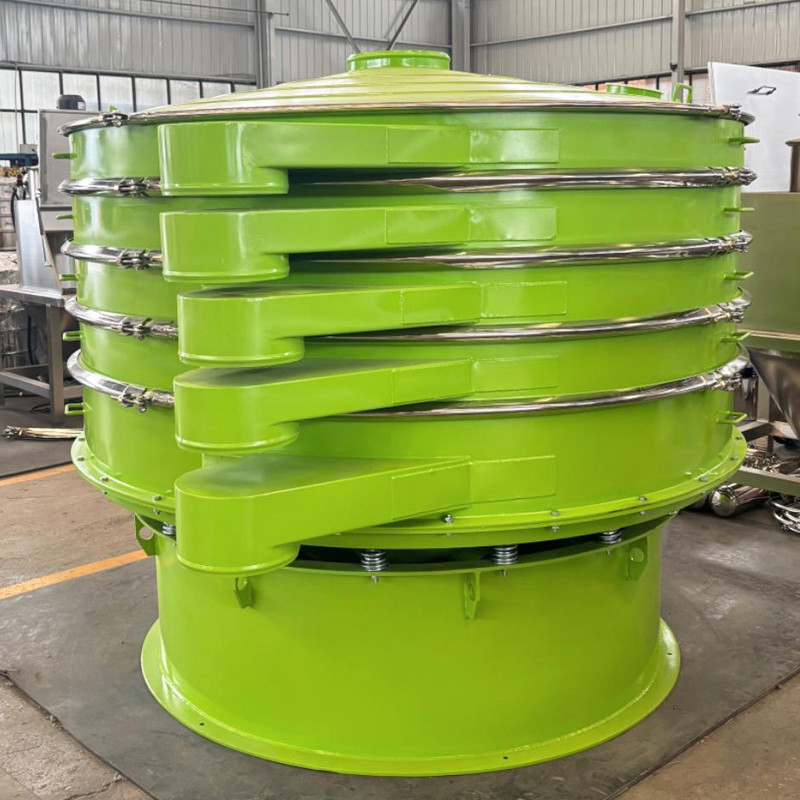

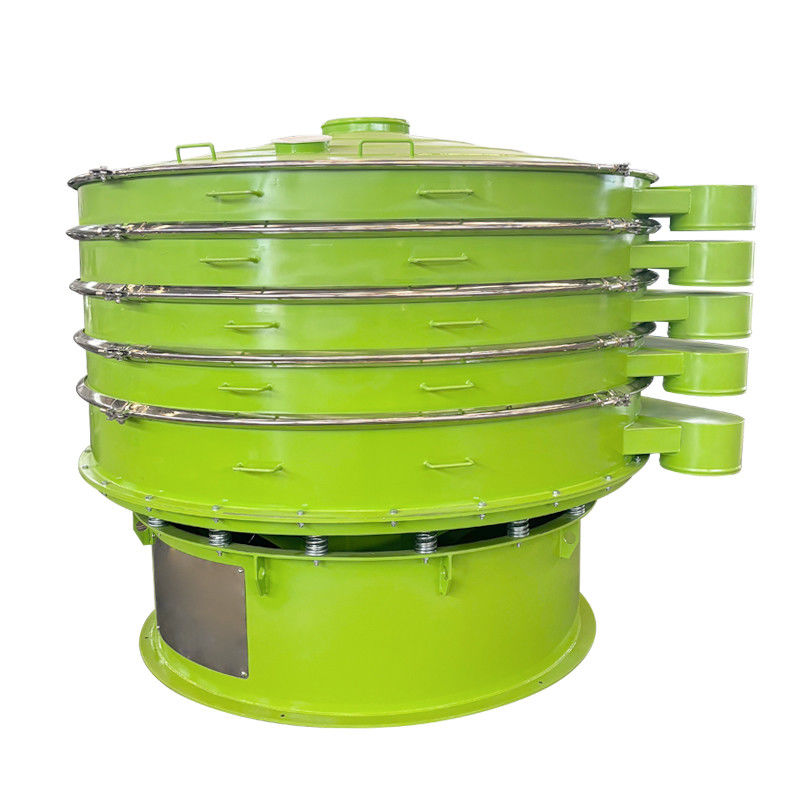

Product display
