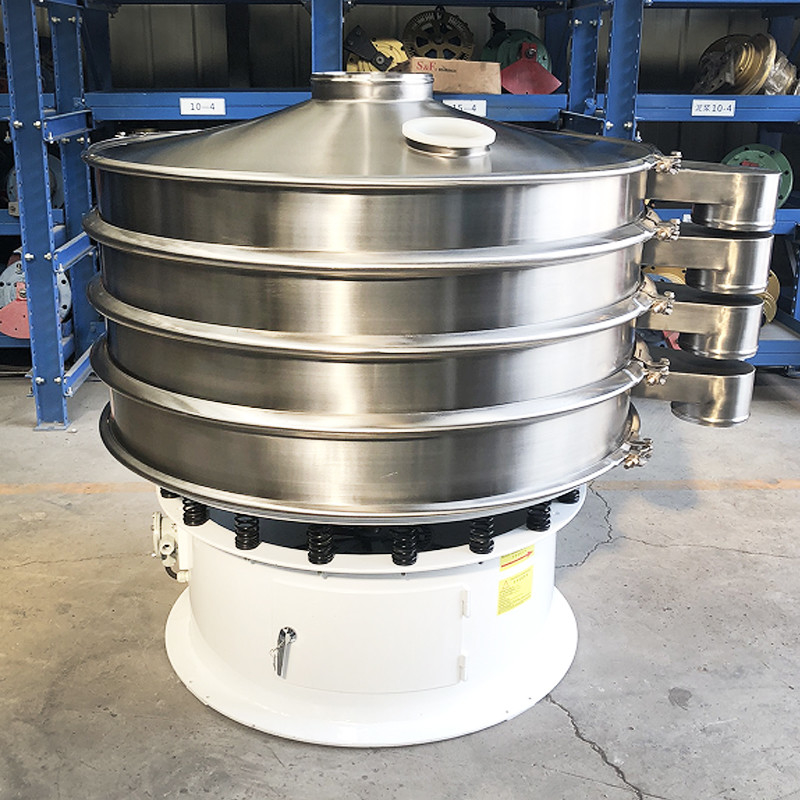

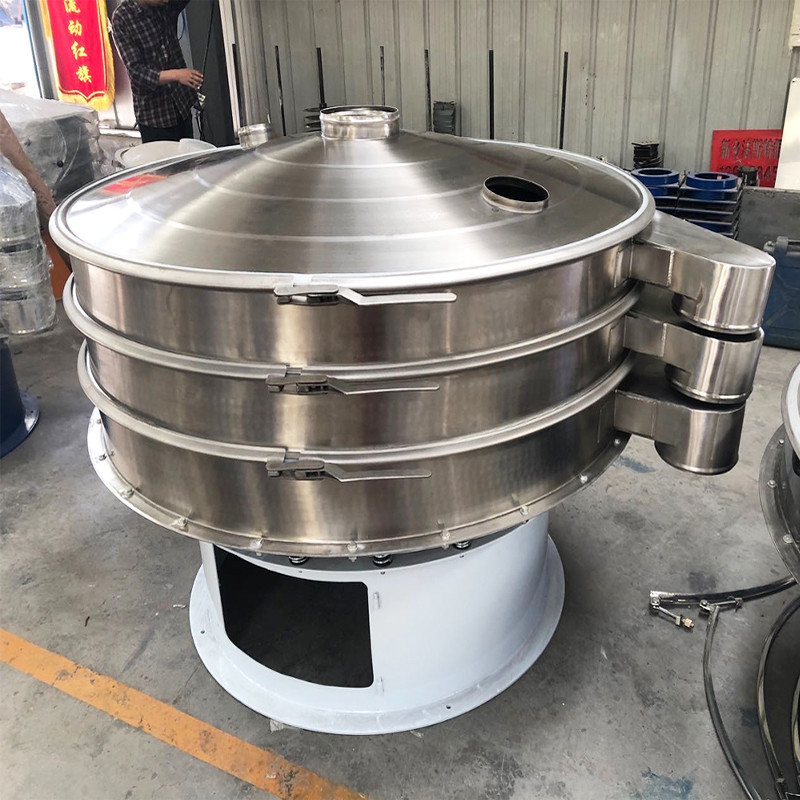

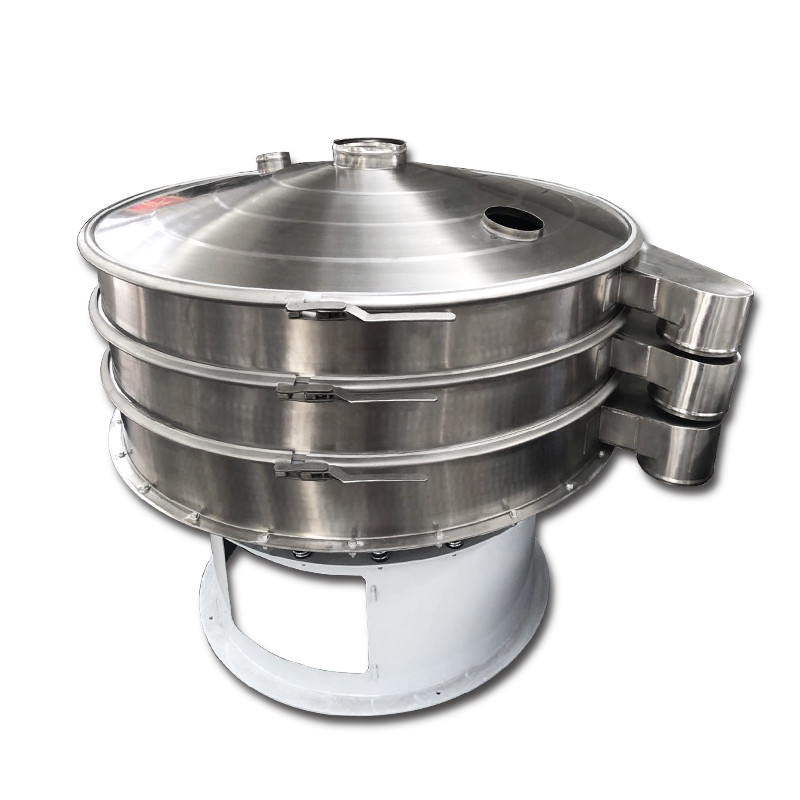

Vibratory Screening Machine
Product description
The vibrating screen is a widely used screening device. It is driven by a vibrating motor and uses an eccentric heavy hammer to produce three-dimensional vibration which makes the material on the screen mesh vibrate at high frequency and move in a circular motion to achieve screening. It has the characteristics of high screening accuracy, large capacity, compact structure, low noise, and simple maintenance. It can efficiently classify and screen powdery and granular materials in the chemical, food, and pharmaceutical, accurately separate materials of different particle sizes, improve product quality, and play an important role in the production process of various industries. It is one of the key equipment realizing the fine processing of materials.
Working principle
The working principle of the vibrating screen is based on the action of the vibration motor. There are eccentric blocks at the upper and lower ends of the motor, and during operation, the centrifugal force generated by the upper and lower eccentric blocks is synthesized and decomposed in different directions, causing the screen body to produce-dimensional vibration in the horizontal, vertical, and inclined directions. The materials entering the screen surface are subjected to this composite vibration, and the small particle materials quickly pass the screen holes to become screen undersize, while the large particle materials move on the screen surface towards the discharge port to become screen oversize, thus achieving efficient and material screening and grading according to the particle size.
Features & Benefits
1. Efficient sieving: Three-dimensional vibration allows materials to be fully dispersed and jump on the screen surface, greatly improving the sie efficiency. Compared with ordinary sieving equipment, the processing capacity can be increased by 30% - 60%.
2. Excellent precision: By adjusting vibration parameters and the number of screen meshes, the sieving precision can be accurately controlled. It can precisely separate materials with different particle sizes to meet various high-precisionving needs. The sieving precision can reach more than 98%.
3. Strong adaptability: It can be widely used in chemical, food, pharmaceutical metallurgical, building materials and other industries. It can effectively screen powdery and granular materials with different properties, such as flour, quartz sand, metal powder etc.
4. Good sealing: The full sealed structure design and high-quality sealing parts effectively prevent material leakage and dust flying, ensuring a clean production environment and meeting environmental and health requirements.
5. Extremely low noise: Advanced shock-absorbing technology and low-noise vibration motors are used, and the noise during operation is significantly lower that of similar equipment. It can generally be controlled below 75 decibels, improving the working environment and reducing noise pollution.
6. Convenient operation: The is simple, the operation interface is humanized, and it is easy to get started. The screen replacement is convenient and quick, and the daily maintenance workload is small which reduces the labor intensity of operators and maintenance costs.
Product parameter
| Model |
Equipment diameter |
Power(KW) |
Deck |
Effective screening area(m2) |
Screen mesh |
| EXZS-600 |
600mm/24inch |
0.25 |
1-5 |
0.2289 |
20 microns to 20 mm |
| EXZS-800 |
800mm/32inch |
0.55 |
0.4183 |
| EXZS-1000 |
1000mm/40inch |
0.75 |
0.6359 |
| EXZS-1200 |
1200mm/48inch |
1.1 |
0.9499 |
| EXZS-1500 |
1500mm/60inch |
1.5 |
1.5386 |
| EXZS-1800 |
1800mm/70inch |
3 |
1-4 |
2.2687 |
| EXZS-2000 |
2000mm/78inch |
4.5 |
2.8893 |
Design Drawing Display
Detail display
Application
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
