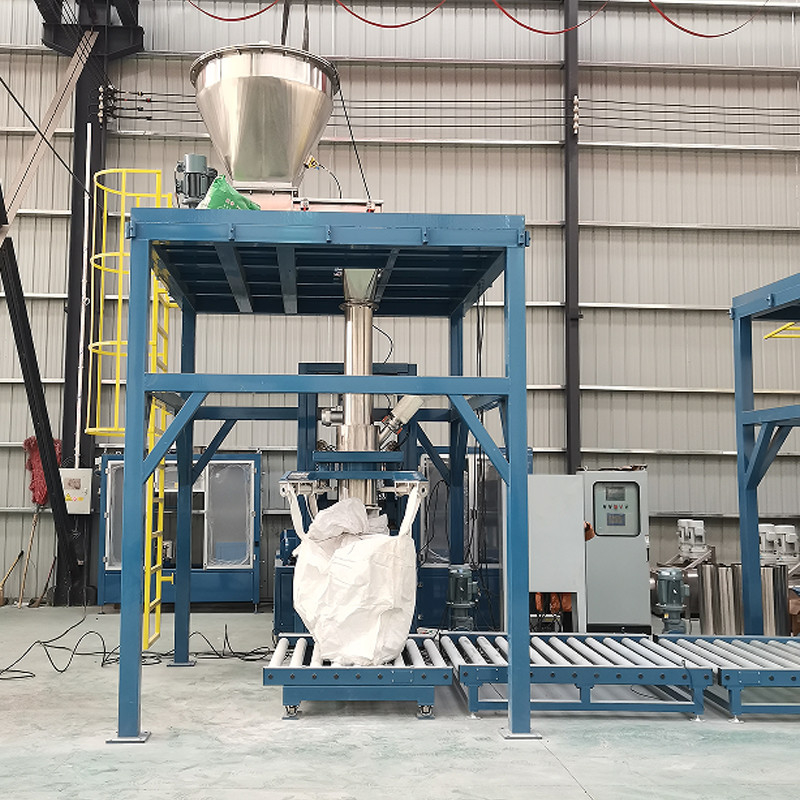

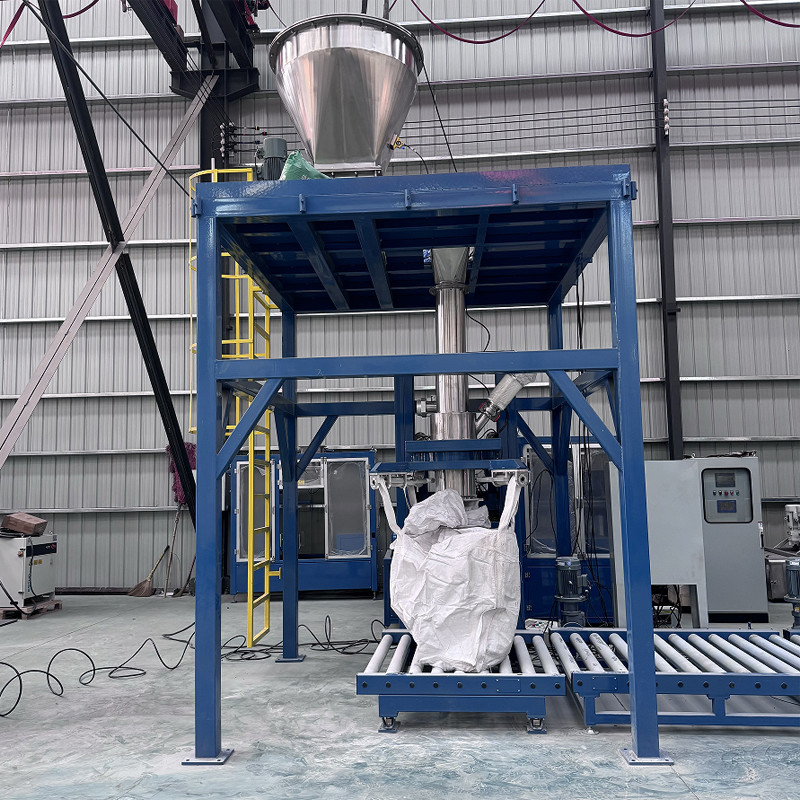

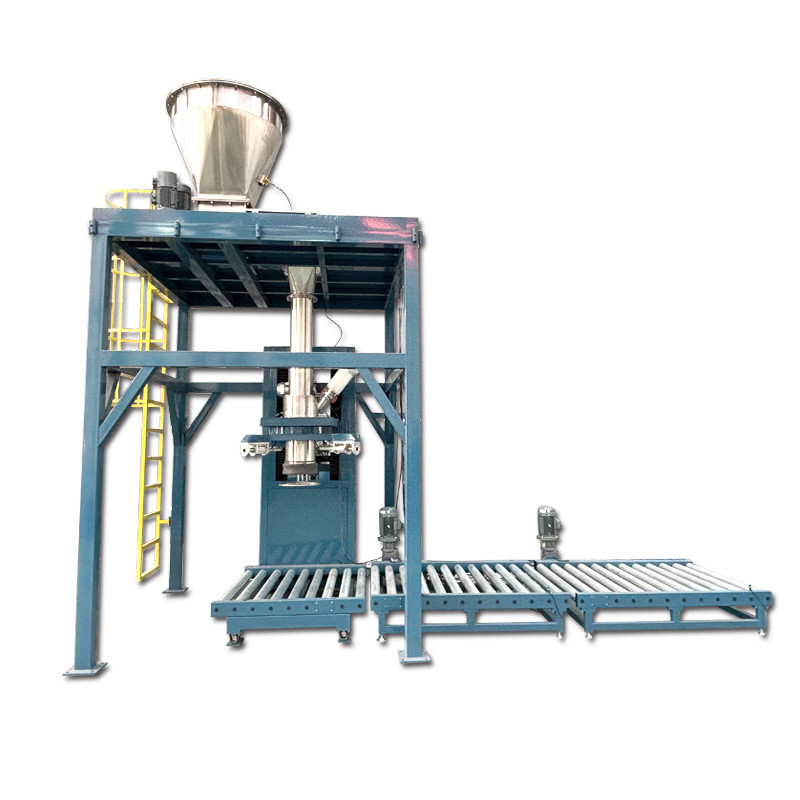

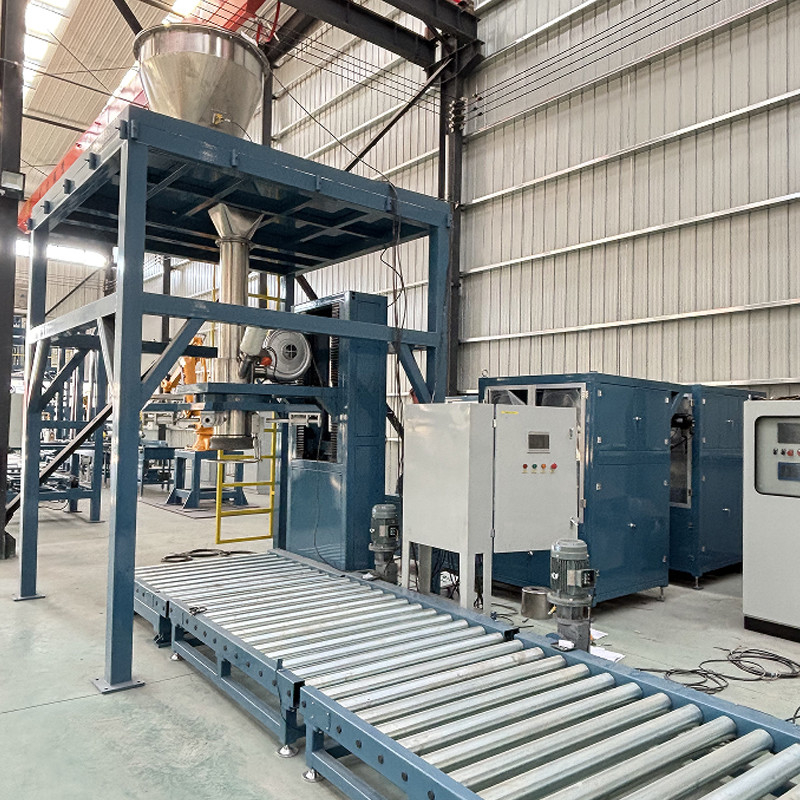

Powder And Granular Multi-functional Ton Bag Packaging Machine Automatic Quantitative Belt-free Large Bag Packaging Machine

The fully automatic ton bag packaging machine has a high degree of automation,
and the whole process of material conveying, metering, and sealing is completed,
reducing human intervention, with less error and high efficiency. It can operate
continuously to meet the needs of large-scale production. Whether it is granular,
powd, or block materials, it can handle them, and it can also quickly adjust
according to the specifications of the ton bag and the packaging weight to adapt to
different production.


When the fully automatic ton bag packaging machine is working, the materials are
first transported from the storage bin to the feeding port through gravity or
mechanical conveying and then accurately measured by the weighing sensor or
volumetric metering device. When the materials reach the preset weight, the
materials are filled into the ton bag by self or pneumatic filling, and finally the
opening of the ton bag is sealed by heat sealing or sewing according to the material
of the ton bag. The whole process is coordinated by the control system to efficiently
complete the packaging operation.


1. High degree of automation: It can automatically complete a series of packaging
processes such as material conveying, metering, filling, and, without the need for a
large amount of manual intervention. This can effectively reduce labor costs,
improve production efficiency, and also reduce errors and mistakes caused by
human operation.

2. Precise metering: Equipped with high-precision weighing sensors or advanced
volumetric metering devices, it can control the error of the weight of the material within
a very small range, ensuring the accuracy and consistency of the weight of each bag
of material, which is conducive to quality control and cost accounting of products.

3. Environmental protection and energy saving: Some advanced fully automatic
ton bag packaging machines adopt energy-saving design, optimize the power system,
and reduce energy consumption. At the time, they are equipped with dust collection
devices and sealed structures, which can effectively reduce the dust and leakage of
materials during the packaging process, and meet environmental protection requirements.

4. High safety performance: It is equipped with multiple safety protection devices, such
as guardrails, safety light curtains, emergency stop buttons, etc., which can effectively
operators from having accidents during the operation of the equipment, and ensure the
safety of personnel and equipment.


Powder: Quantitative packaging of medicines, chemicals, pesticides, rubber, non-metallic
materials, coatings, ceramics, etc. Such as ceramic, calcium carbonate, wettable powder,
carbon black, rubber powder, food additives, pigments, dyes, zinc oxide, medicines, etc.
Granules Medicines, fine chemical particles, plastic particles, PET polyester, rice, feed,
compound fertilizer, etc.
