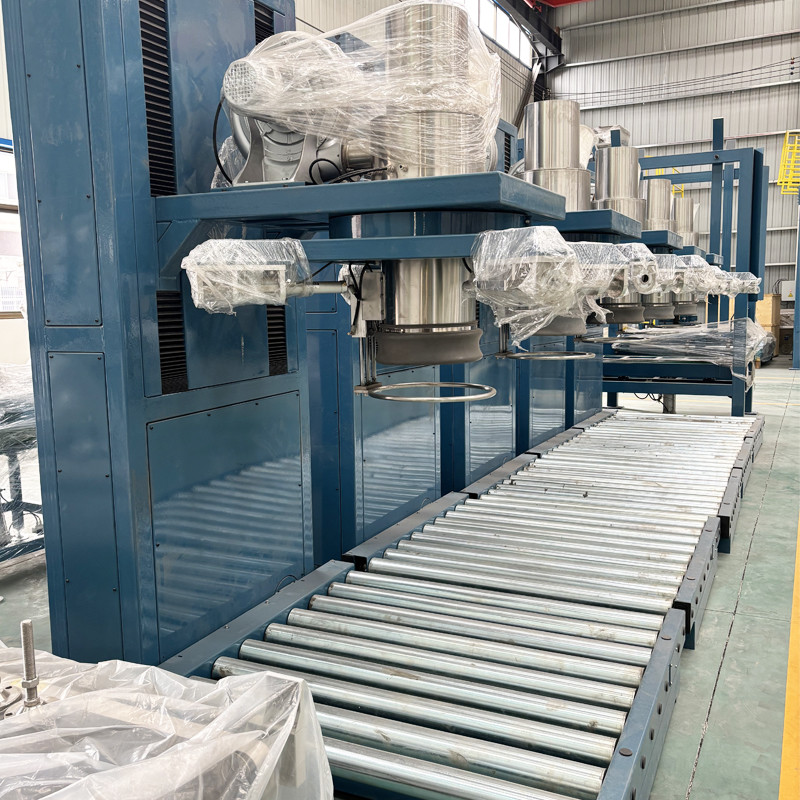

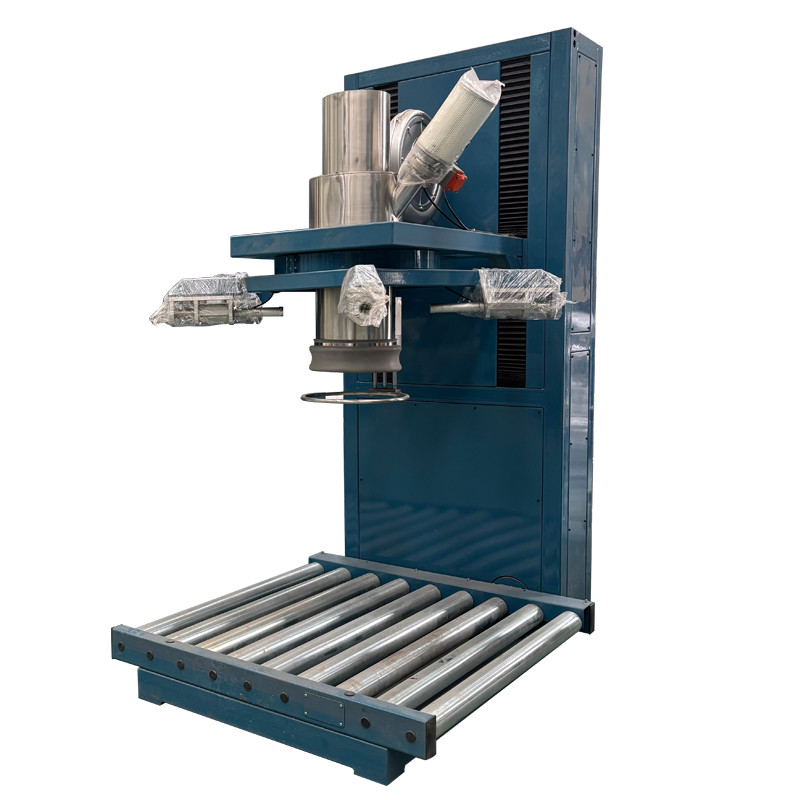

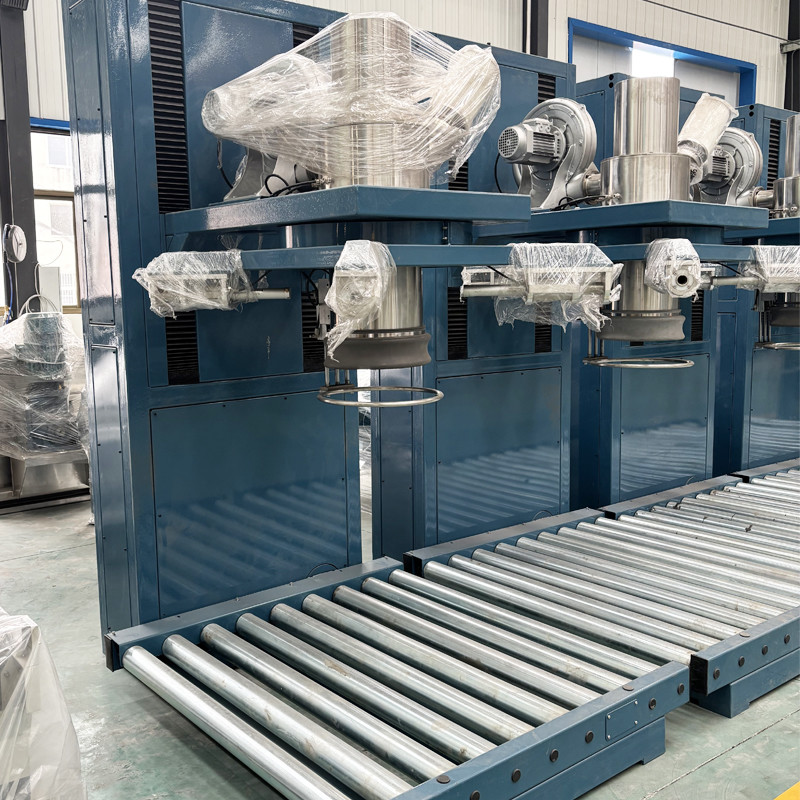

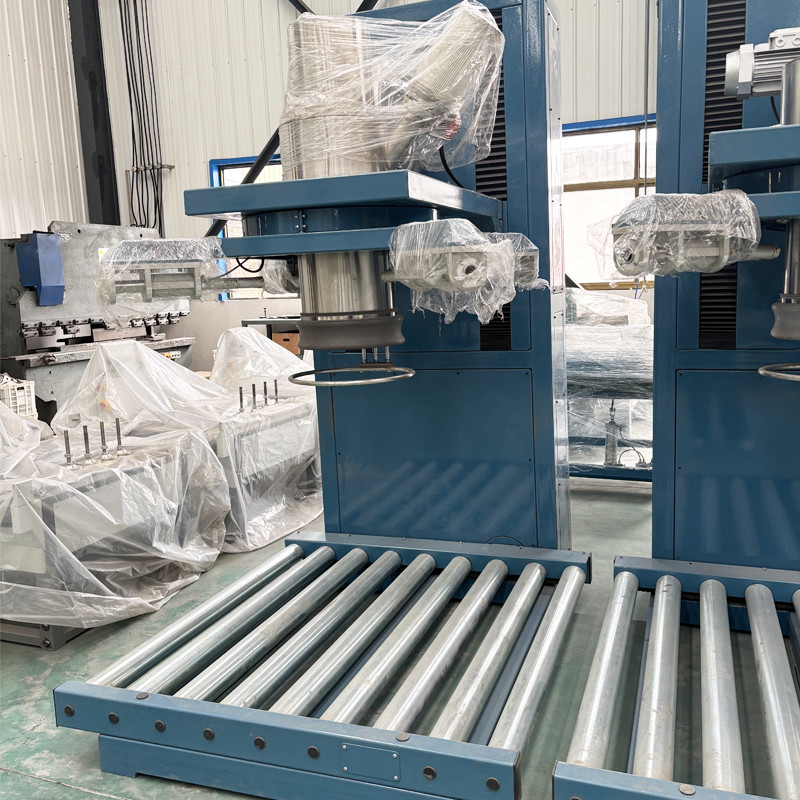

Our Ton Bag Packaging Machine is a high - efficiency and reliable packaging equipment designed to handle large - scale packaging tasks of various materials. It is widely used in industries such as chemicals, building materials, food, and agriculture. With advanced technology and precise manufacturing, this machine can significantly improve packaging efficiency and reduce labor costs.
The working process starts with the material conveying. Materials can be transported to the feeding device of the packaging machine by gravity or mechanical conveyors like screw conveyors, belt conveyors, etc. Then, the weighing system comes into play. High - precision load cells in the weighing mechanism convert the weight of the materials into electrical signals. The control system compares these signals with the
pre - set weight values. When the weight of the materials approaches the set value, the feeding device slows down to ensure accurate weighing. Next, the bag - clamping device firmly holds the mouth of the ton bag. After that, materials are filled into the bag either by gravity or forced filling methods according to their properties. Once the filling is completed, the bag is sealed, usually by stitching or heat - sealing, and then the
finished product is conveyed to the designated location.
High - precision Weighing: Equipped with advanced weighing sensors and control systems, it can achieve high - accuracy weighing, with an error range of ±[X] kg, ensuring the consistency of each package.
Automation: The machine can realize automatic material feeding, weighing, bag - clamping, filling, and sealing, greatly reducing human intervention and improving production efficiency.
Adjustability: It can be easily adjusted to meet the packaging requirements of different materials and bag sizes. The filling speed and weighing range can be flexibly set according to actual needs.
Reliability: Made of high - quality materials and components, the machine has a long service life and stable performance, reducing maintenance frequency and production interruptions.
- Chemical Industry: Suitable for packaging chemical raw materials, fertilizers, pigments, etc.
- Building Materials Industry: Ideal for packaging cement, fly ash, sand, and other building materials.
- Food Industry: Can be used for packaging grains, flour, sugar, and other food products.
- Agriculture Industry: Applied to the packaging of feed, seeds, and other agricultural products.
| Model |
DCS - 1000 |
| Packing Material |
Wooden Boxes |
| Gross Weight |
1640 KG |
| Packing Capacity |
8- 40 bags / h (It depends on the material characteristics and net weight) |
| Packaging error |
≤± 0.2% |
| Weighing Range |
300 - 2000 Kg / bag, customized needs |
| Working air pressure |
0.4 ~ 0.7MPa |
| Application Materials |
Bulk bag packing machine is suitable for all kinds of material, such as chemical, food, feed, hardware, building materials etc. |
