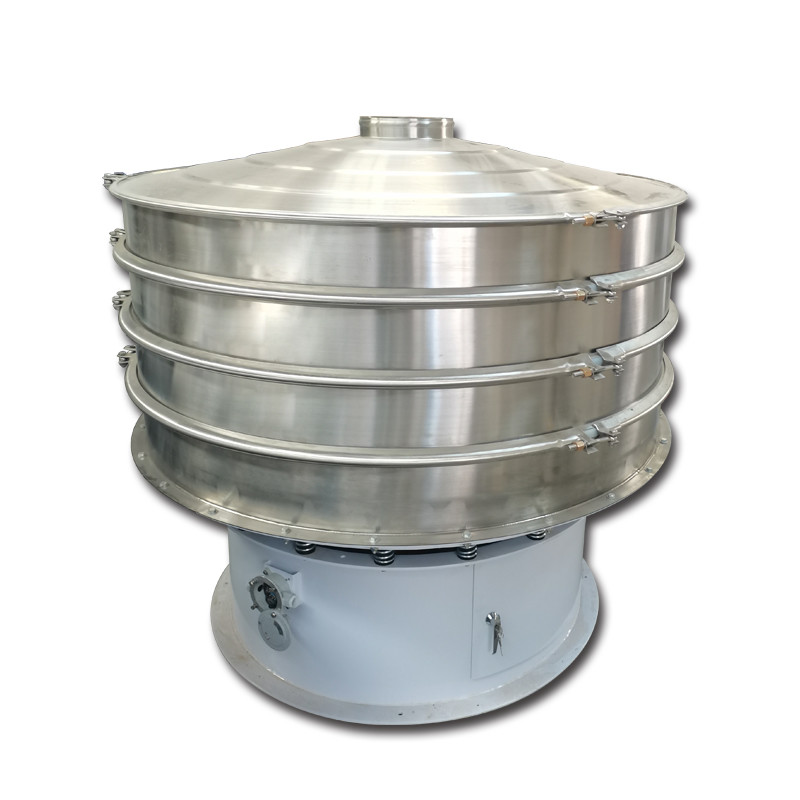

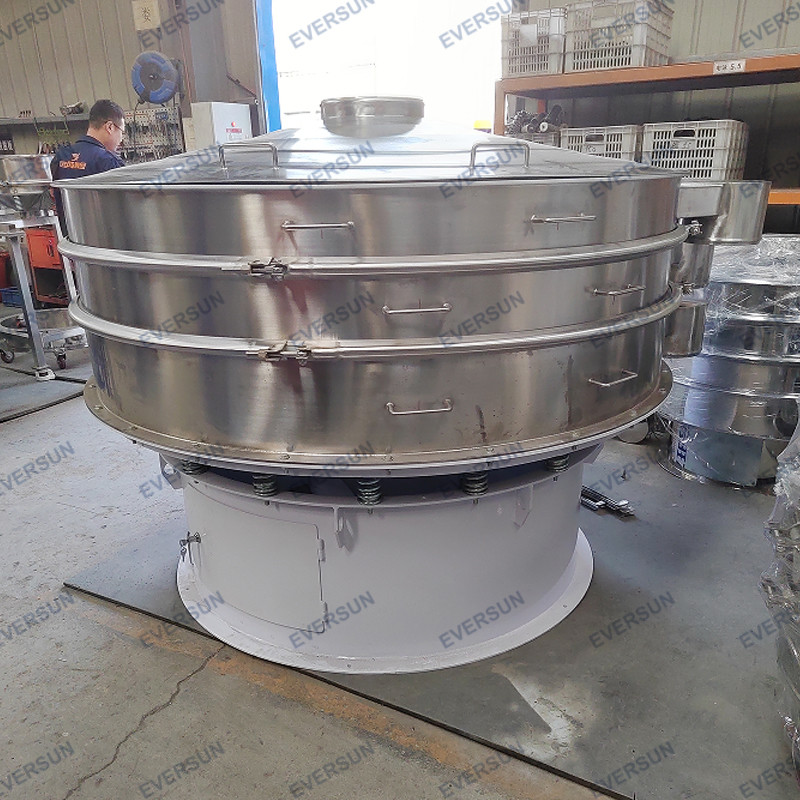

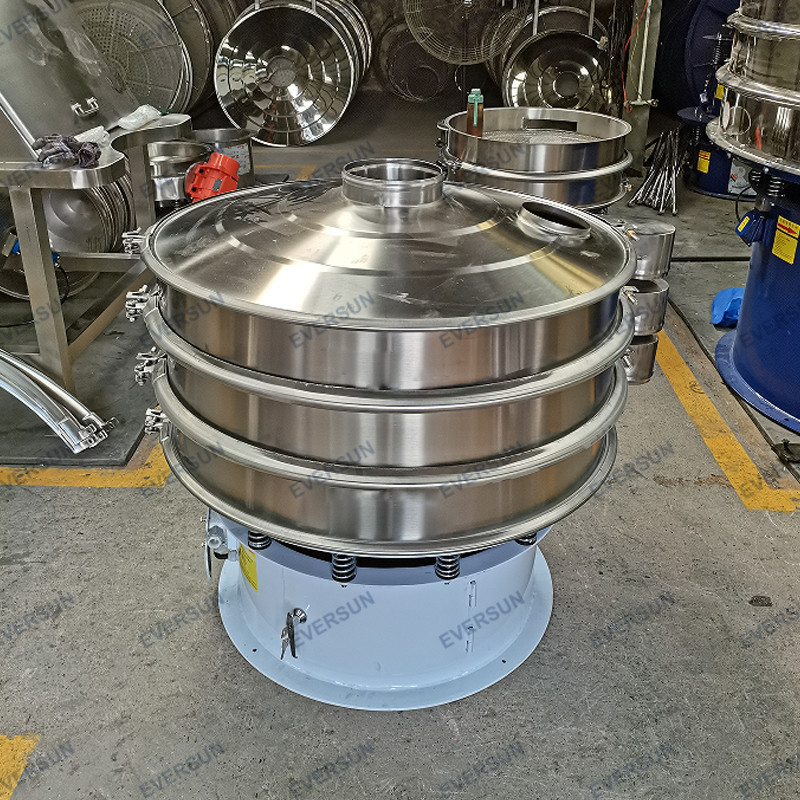

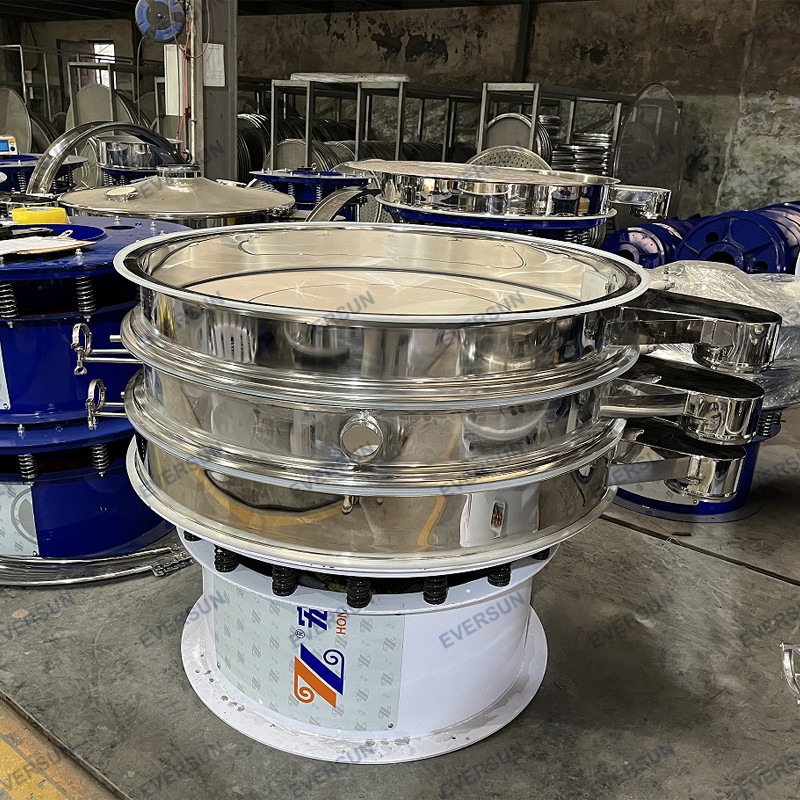

The vibrating screen is a high-precision fine powder screening machine, which works

by using a vertical motor as the excitation source. The upper and ends of the motor

are equipped with eccentric heavy hammers, which transform the motor's rotational

motion into three-dimensional motion in the horizontal, vertical, and inclined directions,

then transmit this motion to the screen surface. By adjusting the phase angle at the

upper and lower ends, the trajectory of the material on the screen surface can be

changed Due to its vibration operation principle, many enterprises also call it a

"three-dimensional vibrating screen separation filter machine".



Exciting force generation: It is usually generated by two motors rotating

synchronously in opposite directions, which makes the exciter produce a reverse

exciting force, forcing the screen body to drive the screen mesh to move.

Material movement process: When the material is on the screen mesh, it will

subjected to a periodic forward throwing force under the action of the exciting force.

Materials of different particle sizes are affected by the exciting force and their own

gravity differently, and movement trajectories and speeds are different.

Sieving realization: Materials with smaller particle size can smoothly pass through

the screen mesh gaps and fall into the collection device below materials with larger

particle size are blocked on the screen mesh and gradually move towards the

discharge port with the vibration of the screen mesh, and finally discharged from the

screen machine realizing the sieving operation of the material.




1. The replacement of the net is convenient and fast, only taking 3 to 5 minutes.

The box adopts a fully enclosed and also has a quick clamping ring design, which

is a high-precision subdividing screening machine.

2. In terms of motor power, the medium flange is used, which makes the horizontal,

vertical, and inclined three-dimensional power more prominent, and the large power

is accompanied by low noise.

3. The range of to be screened is wide. Whether the material is dry or wet, fine or

coarse, heavy or light, it can be screened as long as it is within the range of 0-400

meshes. Even if the material is liquid or paste, it can be easily screened as long as

it is within 600 meshes.

4. It is equipped with a professional cleaning device, which basically will not produce

blockage during the screening process, greatly improving the screening output and

screening efficiency of the machine.

5. For the special needs of different industries, the vibrating screen also has unique

designs, such as gate type, powerful type, sealed type, etc.
