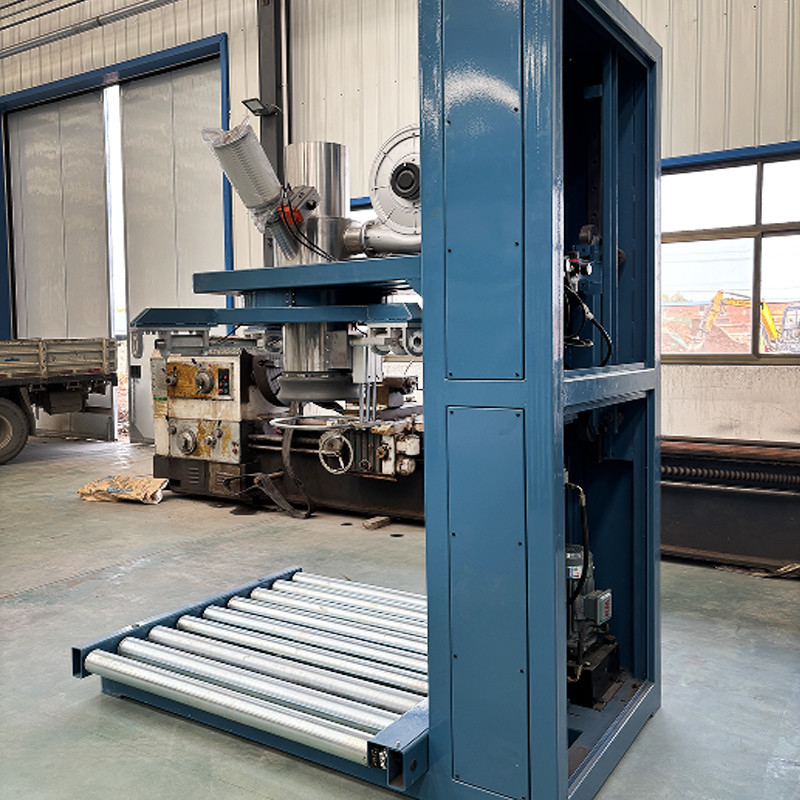

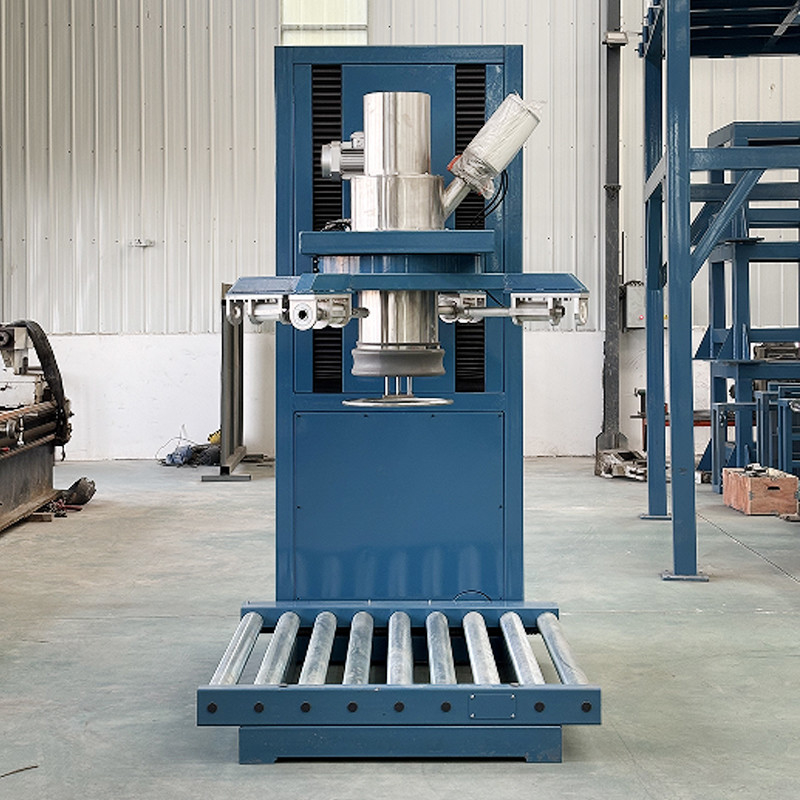

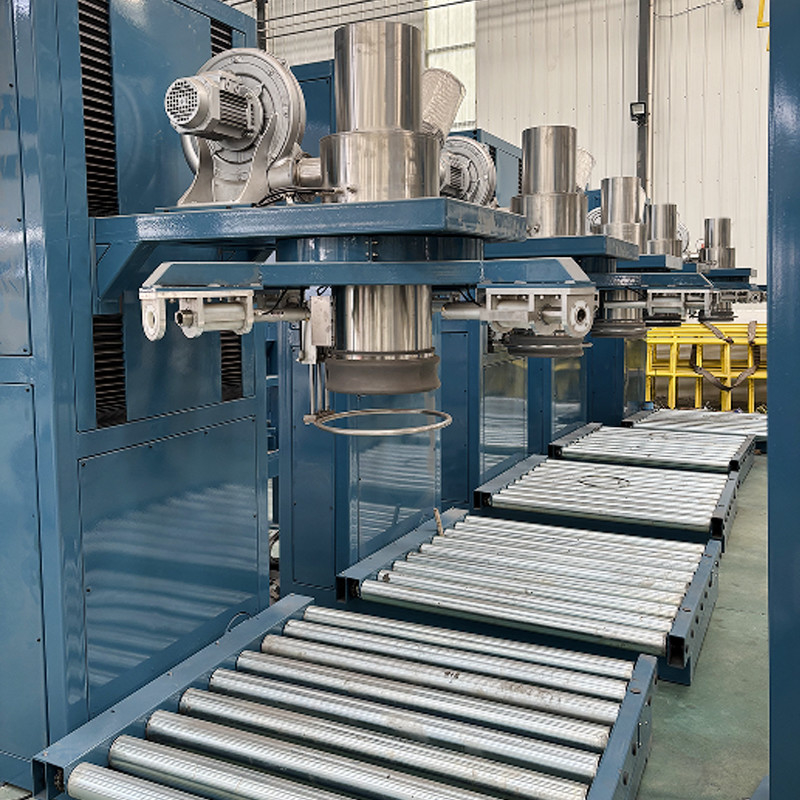

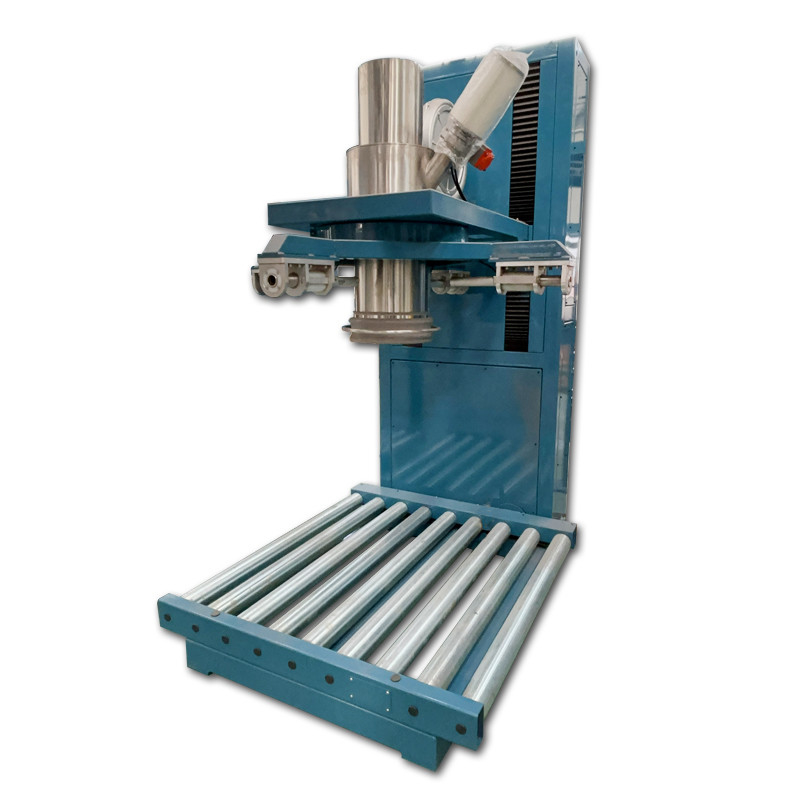

The bulk bag filling machine is a multi-functional packaging machine that integrates
electronic weighing, automatic bag removal, and dust removal. This machine has a
degree of automation, stable equipment performance, high packaging accuracy, and
its packaging speed can be adjusted according to production needs. The equipment
technology is advanced, durable, has fewer consumable parts; the programmable
electrical control system ensures high reliability in the control process. It adopts dust
prevention and removal design, reducing dust pollution in working environment.
It includes pneumatic hanging hook clamping system, air charging and returning
mechanism, feeding metering control mechanism, hydraulic lifting mechanism, conveying
roller bed and electrical control.
The automatic control system of the bulk bag filling machine is the brain of the equipment,
responsible for coordinating the actions of various components to ensure the progress of
the packaging process. The control system typically includes a PLC controller, a touch
screen operation interface, and other components. Operators can set packaging
parameters such as weight and feeding speed through the touch screen. The control
system will automatically control the start and stop of the feeding device, adjust the feeding
speed, and monitor the packaging process based on these parameters.
1. The bulk bag filling machine is custom-designed and manufactured according to the
characteristics of powdered materials and the different requirements of users. The is
advanced in technology, durable, and has fewer consumable parts.
2. The bulk bag filling machine features stepless speed control for both feeding and
packaging, stable performance, high accuracy, and fast speed.
3. The programmable electrical control system ensures highly reliable control processes.
4. The advanced dust prevention and removal reduces dust pollution in the working
environment.
5. The weighing system uses an electronic scale platform for measurement, with full panel
digital calibration and parameter settings. It weight accumulation display, automatic tare,
automatic zero calibration, and automatic error correction, offering high sensitivity and
strong anti-interference capability.
6. The instrument is with a communication interface, facilitating connection and networking,
allowing real-time monitoring and networked management of the packaging machine.
| Model |
DCS - 1000 |
| Packing Material |
Wooden Boxes |
| Gross Weight |
1640 KG |
| Packing Capacity |
8- 40 bags / h (It depends on the material characteristics and net weight) |
| Packaging error |
≤± 0.2% |
| Weighing Range |
300 - 2000 Kg / bag, customized needs |
| Working air pressure |
0.4 ~ 0.7MPa |
| Application Materials |
Bulk bag packing machine is suitable for all kinds of material, such as chemical, food, feed, hardware, building materials etc. |
