| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | HYZT |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 5-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Stainless Steel Z Bucket Elevator | Type: | Bucket Elevator |
|---|---|---|---|
| Conveying Distance: | 1-10（m） | Conveying Capacity: | 10（t/h） |
| Discharge Port: | Single Or Multiple | Application: | Powder, Granules Or Flakes |
| High Light: | Z Bucket Elevator Conveyors,Tipping Z Bucket Elevator Conveyors,Tipping Z Bucket Elevator Conveyors |
||

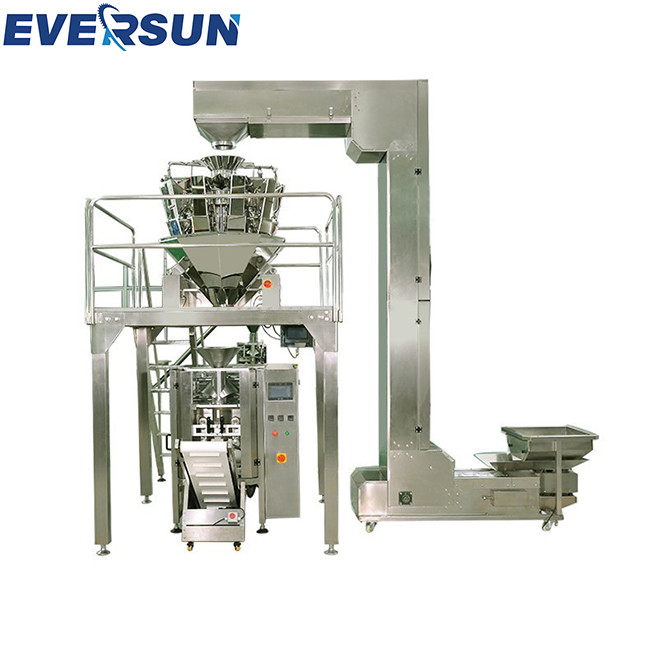

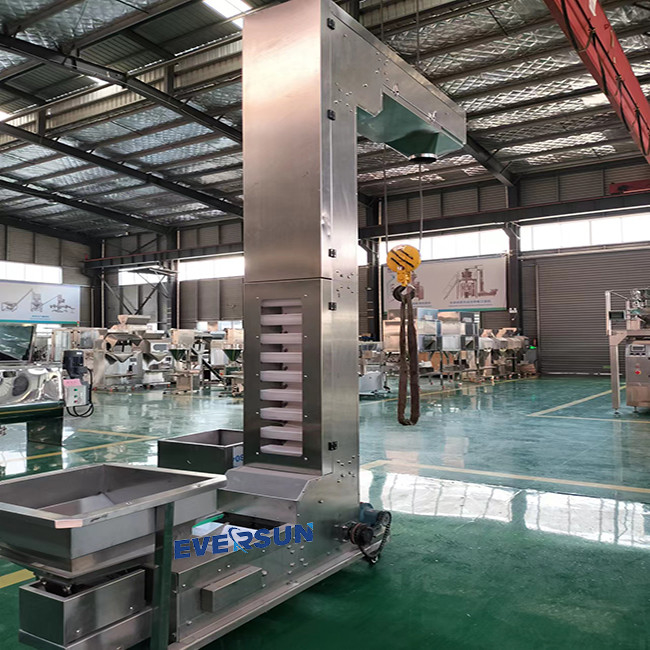

The Z bucket elevator for granule packaging machines is a piece of equipment specially designed for lifting granular materials. It is usually used to lift granular materials from a low place to a high place to meet the material supply needs of the granule packaging machine. It usually has a multi-layer lifting structure, that is, multiple layers of bucket-shaped conveyor belts are set up on the same elevator. This can handle multiple levels of material lifting needs at the same time and improve production efficiency.
The Z bucket elevator realizes the automation and efficient operation of the granular packaging production line by lifting granular materials efficiently and stably. It ensures product quality and consistency.
Product parameter
| Model | HYZT-2L | HYZT-3L | HYZT-5L | HYZT-7L | HYZT-10L |
| Capacity | 0-6m3/h | 0-8m3/h | 0-12m3/h | 0-15m3/h | 0-20m3/h |
| Bucket Volume | 2L | 3L | 5L | 7L | 10L |
| No.s of discharge port | Single | Single or Muti-discharge port | |||
| Lifting Height | Up To 50m | Up To 50m | Up To 50m | Up To 50m | Up To 50m |
| Power | 0.75-22KW | 0.75-22KW | 0.75-22KW | 0.75-22KW | 0.75-22KW |
| Voltage | As per order | ||||
| Construction materials | Carbon steel, SS304/316 | ||||
| Bucket materials | Food grade PP or ABS, SS304/316, Carbon steel | ||||
1. Lifting structure: The bucket-shaped conveyor belt presents a continuous Z shape, allowing the material to move continuously along the height direction of the elevator.
2. Bucket conveyor belt: The speed and inclination angle of the bucket conveyor belt can be adjusted according to the characteristics of the material.
3. Bucket conveyor belt adjustment: The bucket-shaped plates of the conveyor belt can be replaced or adjusted as needed to adapt to different material characteristics.
4. Safety and hygiene: The Z bucket elevator of the granule packaging machine is usually made of food-grade materials and has an easy-to-clean design to comply with hygiene standards. At the same time, it is also equipped with safety devices, such as protective doors, emergency stop buttons, etc.
The Z bucket elevator for granule packaging machines plays a key role in the packaging process of granular materials. It is commonly used in the following areas and applications:
1. Food packaging: Z bucket elevator can be widely used in the food industry for granular food packaging, such as potato chips, nuts, melon seeds, beans, cereals, etc.
2. Candy packaging: The candy manufacturing industry also often uses Z bucket elevators to lift granular candies, such as hard candies, soft candies, jelly beans, etc.
3. Chemical industry: In the chemical industry, Z bucket elevator can be used for packaging of granular chemical raw materials, such as plastic particles, pigments, pharmaceutical raw materials, etc.
4. Pesticide and Fertilizer Packaging: The pesticide and fertilizer industry often requires lifting granular pesticides and fertilizers to packaging machines or batching equipment.
5. Mineral granule packaging: Z bucket elevator can be used to lift ores and mineral granules.
We support customizing various types of bucket elevators to meet your needs.
Q1: What is the working principle of Z bucket elevator?
A: The Z bucket elevator lifts materials from low to high through a bucket-shaped conveyor belt.
Q2: Is the conveyor belt speed of the Z bucket elevator adjustable?
A: Yes, the conveyor belt speed of Z bucket elevator can usually be adjusted by adjusting the transmission device or frequency converter.
Q3: Does Z bucket elevator require regular maintenance?
A: Yes, Z bucket elevators require regular maintenance and upkeep, including lubricating transmission parts, cleaning conveyor belts, and checking safety devices, etc.
Q4: How safe is the Z bucket elevator?
A: Z bucket elevators are designed with safety factors in mind and are usually equipped with safety devices such as protective doors, emergency stop buttons, and safety switches.
