Product Description:

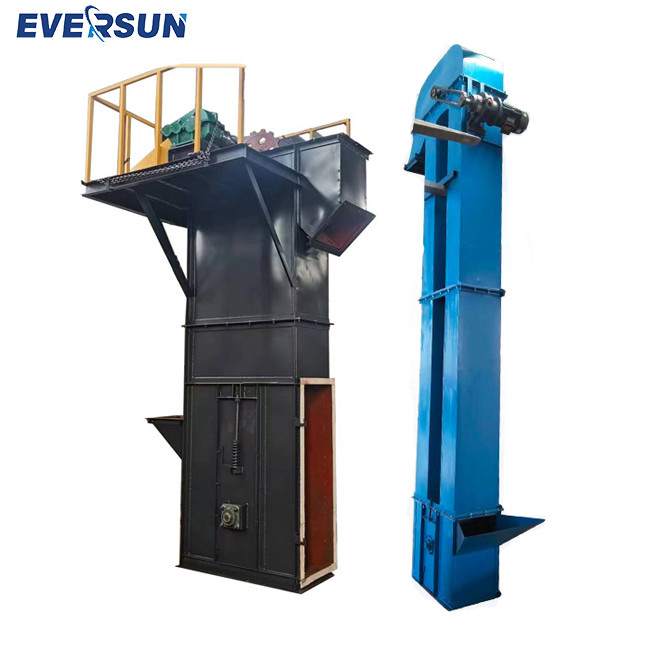

Chain Bucket Elevator Product Overview
Bucket elevator is a commonly used material conveying equipment, used to lift materials from low to high or from horizontal to inclined position. It consists of one or more bucket-type conveyor chains and a series of suspension devices equipped with bucket cups. The material is lifted to the required height through the bucket cup, and then unloaded to the target location by gravity or other conveying methods.
Bucket elevators are suitable for various industries and application scenarios, such as grain processing, ore processing, cement industry, chemical industry, building materials, powder materials, etc. It can handle various types of materials, including granular, lumpy and powdery materials.
With its customizable design, sturdy construction, and efficient performance, the Chain Bucket Elevator is the perfect solution for vertical material handling needs. Contact us today to learn more about our bucket elevator and how it can benefit your business.
Technical Parameters:
| Model |
Conveying capacity |
Bucket speed |
Spindle speed |
Material particle size |
| m3/h |
m/s |
round/min |
mm |
| NE15 |
15 |
0.5 |
15.54 |
<40 |
| NE30 |
32 |
16.45 |
<50 |
| NE50 |
60 |
16.45 |
<50 |
| NE100 |
110 |
14.13 |
<70 |
| NE150 |
170 |
14.13 |
<70 |
| NE200 |
210 |
10.9 |
<100 |
| NE300 |
320 |
10.9 |
<100 |
| NE400 |
380 |
8.3 |
<120 |
| NE500 |
470 |
7.1 |
<120 |
Features:
1. Efficient transportation: Bucket elevators can efficiently lift materials from low to high places, achieving fast and reliable material transportation.
2. Large-capacity processing: The bucket elevator can handle a large amount of materials and is suitable for conveying and lifting large quantities of materials.
3. Flexible layout: Bucket elevators can be flexibly laid out according to the needs of the factory or process flow, adapting to different space constraints and working environments.
4. Reliable and stable: The bucket elevator adopts a solid structure and a reliable transmission system, which can operate stably for a long time and reduce failures and downtime.
5. Automated control: The bucket elevator can be equipped with an automated control system to monitor and adjust the conveying speed, material flow and operating status.
6. Energy saving: The design of the bucket elevator can save energy to the greatest extent and reduce energy consumption and operating costs.
Working principle:
Its working principle is as follows: when the bucket elevator starts, the transmission device driven by the electric motor or other power source starts to operate. The transmission device drives the chain to rotate along the transmission wheel or sprocket on the elevator casing. A series of bucket-shaped containers are connected to the chain.
During the working process, the feed port of the bucket elevator is opened, and the material enters the bottom of the elevator from the feed port. With the movement of the chain, the bucket-shaped container rises vertically along the elevator casing. When the bucket-shaped container reaches the top or target position, the material is affected by centrifugal force and is thrown out of the bucket-shaped container and enters the discharge port.
Once the material is released, the bucket-shaped container continues to descend, passing through the return section, ready for the next cycle. In the return section, the bucket-shaped container passes through the sprocket or transmission wheel at the bottom, and the direction of the chain changes, causing the bucket-shaped container to flip over and prepare to receive new materials.
Applications:
Chain Bucket Elevator
Bucket elevators are widely used in various industries and fields to lift materials from low to high or from horizontal to inclined positions. It is suitable for various application scenarios such as grain processing, ore processing, cement industry, chemical industry, building materials, powder materials, etc. It plays an important role in material conveying and lifting, improves production efficiency, saves labor costs, and adapts to the needs of different industries and applications.
Packing and Shipping:
1. Disassembly and packaging: Bucket elevators often need to be disassembled and packed before shipping. This includes separating individual components, protecting and packaging them to prevent damage.
2. Marking and Identification: Each packaged component should be marked and identified to ensure accurate identification and assembly during shipping and assembly.
3. Transportation method selection: Choose the appropriate transportation method, such as land transportation, sea transportation, or air transportation, based on the size, weight, and destination of the bucket elevator.
4. Transportation safety: Make sure the bucket elevator is properly protected and secured during transportation to prevent damage. Use appropriate packing materials, supports and fixtures to maintain stability.
FAQ:
1. What are the advantages of bucket elevators?
The advantages of bucket elevators include efficient vertical conveying capacity, suitability for a variety of materials, small footprint, simple maintenance, and can be customized to suit different needs.
2. What is the safety performance of bucket elevators?
Bucket elevators are usually equipped with safety protection devices, such as chain break protection, anti-clogging devices, emergency stop buttons, etc., to ensure the safe operation of the equipment.
3. What are the maintenance requirements for bucket elevators?
The maintenance of bucket elevators mainly includes regular inspection and lubrication of the chain, cleaning of impurities in the bucket container, checking the working condition of the transmission device and safety devices, etc.
4. How to choose the size and capacity of bucket elevator?
When selecting the size and capacity of a bucket elevator, factors such as the characteristics of the material, the required conveying volume, and the vertical lifting height should be considered, and the appropriate model should be selected based on actual needs.
