| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | HYZT |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 5-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Stainless Steel Z Bucket Elevator | Type: | Bucket Elevator |
|---|---|---|---|
| Conveying Distance: | 1-10（m） | Conveying Capacity: | 10（t/h） |
| Discharge Port: | Single Or Multiple | Application: | Powder, Granules Or Flakes |
| High Light: | Z Bucket Elevator Conveyors,304 Stainless Steel Z Bucket Elevator,Candy Packaging Z Bucket Elevator |
||

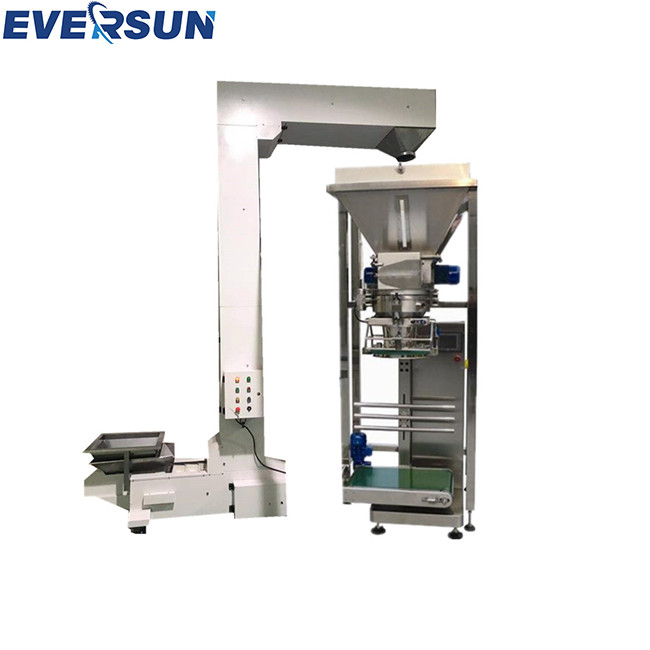

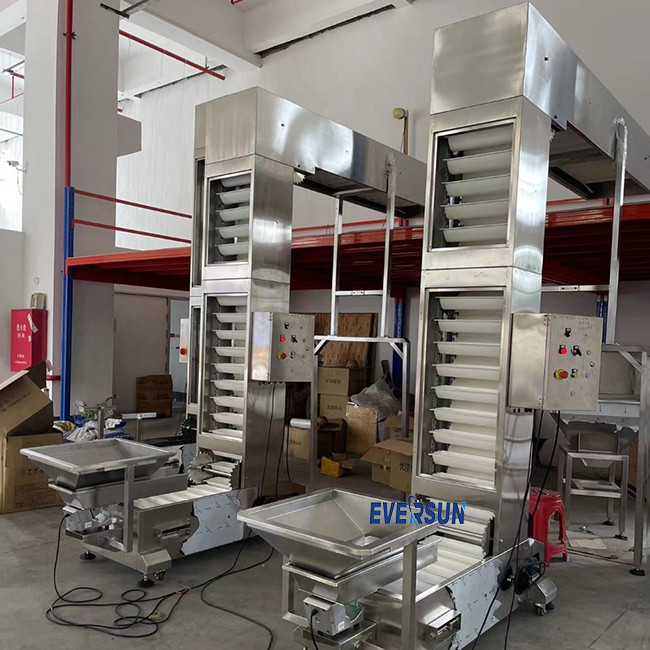

Z bucket elevator is a special type of elevator used for lifting candy packaging. It adopts a Z-shaped lifting structure and uses a series of bucket-shaped conveyor belts to lift candies from low to high places to meet the packaging production line's material lifting needs. It has the characteristics and advantages of high efficiency and stability, multi-layer lifting, flexible adaptability, reliability and durability, safety and hygiene, etc. It provides an efficient and reliable material lifting solution for candy packaging production lines.
The Z bucket elevator can also be used to lift various powder, granular or flake chemical raw materials, such as fertilizers, plastic granules, pigments, pharmaceutical raw materials, etc. It can lift these raw materials from storage areas or conveyor lines of production lines to different process steps or packaging links.
Product parameter
| Model | HYZT-2L | HYZT-3L | HYZT-5L | HYZT-7L | HYZT-10L |
| Capacity | 0-6m3/h | 0-8m3/h | 0-12m3/h | 0-15m3/h | 0-20m3/h |
| Bucket Volume | 2L | 3L | 5L | 7L | 10L |
| No.s of discharge port | Single | Single or Muti-discharge port | |||
| Lifting Height | Up To 50m | Up To 50m | Up To 50m | Up To 50m | Up To 50m |
| Power | 0.75-22KW | 0.75-22KW | 0.75-22KW | 0.75-22KW | 0.75-22KW |
| Voltage | As per order | ||||
| Construction materials | Carbon steel, SS304/316 | ||||
| Bucket materials | Food grade PP or ABS, SS304/316, Carbon steel | ||||
1. Efficient and stable: It can quickly and smoothly transport candies from low to high places, improving the production efficiency of the packaging production line.
2. Multi-layer lifting: Z bucket elevator usually has a multi-layer lifting structure, which can handle multiple levels of candy packaging needs at the same time.
3. Flexible adaptation: The bucket distance and number of buckets of the Z bucket elevator's bucket conveyor belt can be adjusted and customized to accommodate candy packaging of different sizes and shapes.
4. Reliable and durable: Z bucket elevators usually adopt high-quality materials and structural design, and have good wear resistance and durability.
Z bucket elevators are widely used in the candy packaging industry. The following are some application scenarios of Z bucket elevator:
1. Candy packaging production line: It can lift candies from the candy making machine or the conveying line of the previous process to the subsequent packaging machinery.
2. Candy sorting and diversion: Z bucket elevator can separate and lift different types of candies for subsequent packaging or processing.
3. Candy Storage and Conveying: It lifts candy from one storage container or area to another for storage, portioning or further processing.
We support customizing various types of bucket elevators to meet your needs.
Q1: Which industries are Z bucket elevators suitable for?
A: Z bucket elevator is suitable for many industries, including food processing, candy packaging, chemical industry, mining, metallurgy, etc.
Q2: Does Z bucket elevator require regular maintenance?
A: Yes, like other mechanical equipment, the Z bucket elevator requires regular maintenance and upkeep to ensure its normal operation and extend its service life.
Q3: Does the Z bucket elevator meet health standards?
A: Yes, the bucket conveyor belt of Z bucket elevator is usually made of food-grade materials and has an easy-to-clean design that meets hygienic standards.
Q4: How safe is the Z bucket elevator?
A: Z bucket elevators are designed with safety factors in mind, such as protective devices, emergency stop buttons, etc., to ensure the safety of operators.
