Product Description:

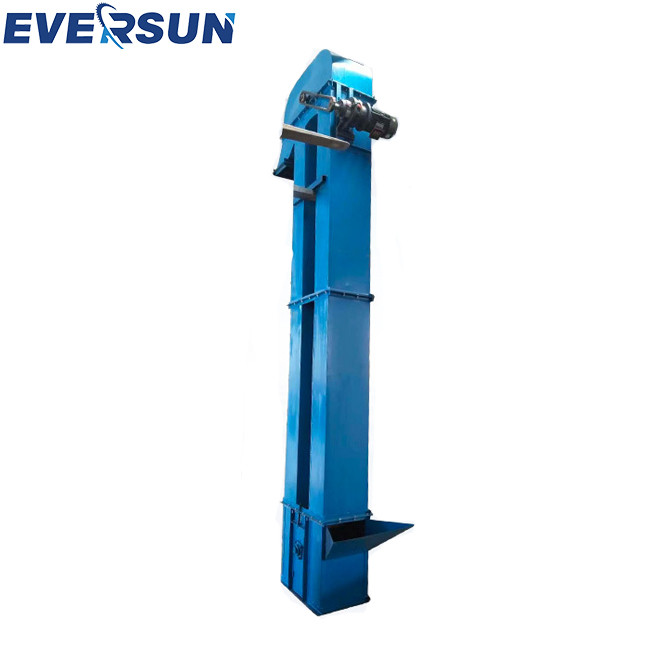

Product Overview: Chain Bucket Elevator
Bucket elevator is a kind of equipment used for vertical transportation of materials. It mainly consists of elevator shell, base, head and tail, transmission device, bucket-shaped container, discharge port and feed port. It drives the bucket-shaped container to move up and down through a transmission device to lift materials from the bottom to the top or a designated position.
Bucket elevators have the advantages of efficient conveying capacity, space saving, suitability for a variety of materials, reliable stability and safety protection devices. They are widely used in grain processing, mining, chemical industry, building materials and other industries to provide fast and reliable material handling solutions.
Technical Parameters:
| Model |
Conveying capacity |
Bucket speed |
Spindle speed |
Material particle size |
| m3/h |
m/s |
round/min |
mm |
| NE15 |
15 |
0.5 |
15.54 |
<40 |
| NE30 |
32 |
16.45 |
<50 |
| NE50 |
60 |
16.45 |
<50 |
| NE100 |
110 |
14.13 |
<70 |
| NE150 |
170 |
14.13 |
<70 |
| NE200 |
210 |
10.9 |
<100 |
| NE300 |
320 |
10.9 |
<100 |
| NE400 |
380 |
8.3 |
<120 |
| NE500 |
470 |
7.1 |
<120 |
Features:
1. Efficient conveying: Able to efficiently convey large quantities of materials vertically.
2. Space-saving: It has a small footprint and is suitable for places with limited space.
3. Wide application: It can be used to handle various bulk or powdery materials and is widely used in many industries.
4. Stable and reliable: It has a solid structure and reliable transmission device, stable operation and long service life.
5. Safety protection: equipped with a variety of safety protection devices to ensure the safety of equipment operation.
6. Flexible layout: Flexible layout can be carried out according to actual needs to adapt to different production lines or factory layouts.
7. Easy maintenance: Maintenance is relatively simple, just check and maintain the transmission device regularly and clean the impurities in the bucket-shaped container.
8. Adjustable lifting height: According to needs, the lifting height can be adjusted to adapt to different material conveying requirements.
Stucture:
The structure of the bucket elevator includes the elevator shell, base, head and tail, transmission device, bucket-shaped container, discharge port and feed port. These components cooperate with each other to form a complete bucket elevator structure to realize vertical transportation of materials.
Applications:
Chain bucket elevators are suitable for a wide range of bulk materials, such as grains, seeds, fertilizers, ores, minerals, aggregates, cement, and other powdered or granular materials.Here are some common bucket elevator applications:
1. Grain processing: used for lifting and transporting grains, such as rice, wheat, corn, etc.
2. Ore processing: used for lifting and transporting ores, such as coal, iron ore, gold ore, etc.
4. Chemical industry: used for lifting and transporting chemical raw materials and products, such as granular fertilizers, plastic particles, etc.
5. Building materials: used for lifting and transporting building materials, such as sand, stone, concrete, etc.
Packing and Shipping:
Packaging and Shipping for Chain Bucket Elevator
Our Chain Bucket Elevator is carefully packaged to ensure safe delivery to our customers.
The packaging process includes the following steps:
- Each component of the elevator is securely packed and labeled.
- The components are then placed in a sturdy wooden crate for protection.
- The crate is sealed and marked with the product name and shipping information.
For international shipping, we use reliable freight companies to ensure timely and safe delivery. We also provide proper documentation and labeling for customs clearance.
Once your order is ready to be shipped, we will provide you with a tracking number so you can monitor the progress of your delivery.
Our packaging and shipping methods are designed to ensure that your Chain Bucket Elevator arrives in perfect condition, ready for installation and use.
FAQ:
1. What is a chain bucket elevator?
A chain bucket elevator is a type of vertical conveyor that uses a chain and a series of buckets to transport bulk materials vertically. It is commonly used in industries such as agriculture, mining, construction, and manufacturing.
2. Are there any safety features in chain bucket elevators?
Yes, chain bucket elevators are equipped with various safety features to ensure safe operation. These may include emergency stop buttons, safety switches, overload protection devices, and guarding to prevent access to moving parts.
3. What factors should be considered when selecting a chain bucket elevator?
When selecting a chain bucket elevator, factors to consider include:
Material characteristics (e.g., size, density, flowability)
Required capacity and throughput
Vertical lift height
Operating conditions (e.g., temperature, humidity, corrosiveness)
Space limitations and layout constraints
Safety requirements and regulations
4. How can maintenance be performed on a chain bucket elevator?
Maintenance of a chain bucket elevator typically involves regular inspection and lubrication of the chain, sprockets, and bearings. It is important to clean the buckets and remove any buildup or blockages to ensure smooth operation. Additionally, any worn-out or damaged components should be replaced promptly.
