| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | B |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Stainless Steel Filter | Screen Mesh Number: | 2-500mesh |
|---|---|---|---|
| Diameter: | 200-2600mm | Application: | Powder, Granules, Slurry |
| Screen Material: | Stainless Steel Woven Mesh | Usage: | Industry |
| High Light: | Round Powder Rotary Vibrating Screen,Three Element Rotary Vibrating Screen,Stainless Steel Filter Rotary Vibrating Screen |
||

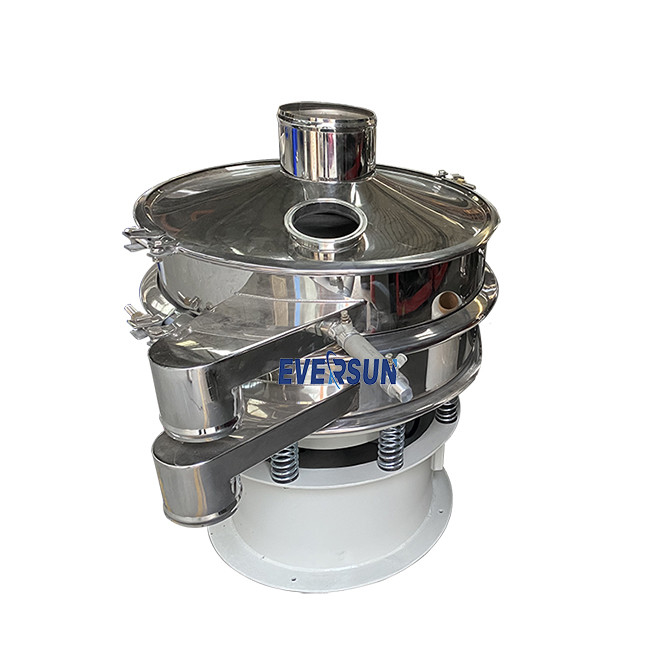

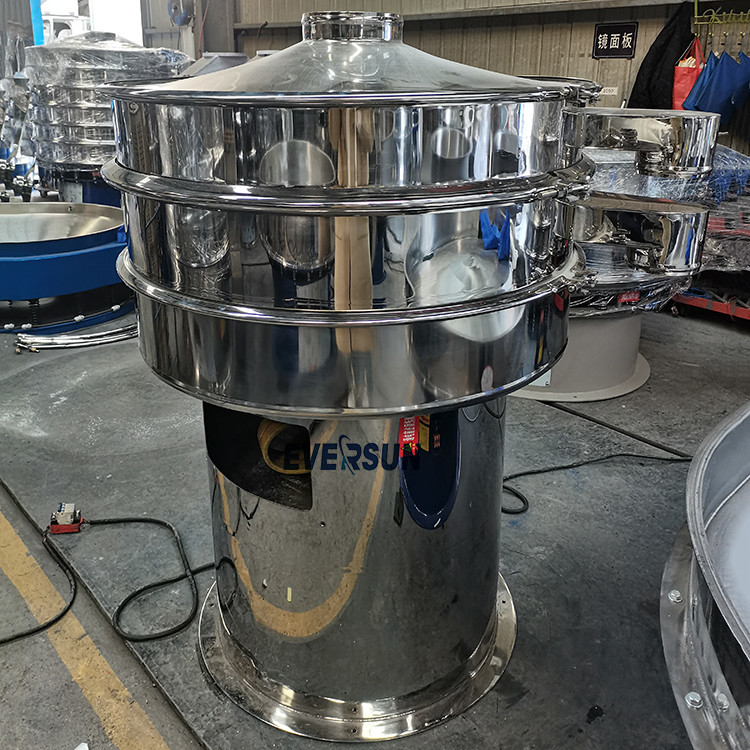

The three-element rotary vibrating screen is a multi-layer screening equipment used for screening and filtering granules, powders and slurry materials. It has one to five layers of screen mesh, each layer has different apertures, and can perform multi-stage screening at the same time. It usually consists of screen box, rotating parts, screen and vibration motor.
The screen box adopts a cylindrical shape and has a large screening area. The rotating part allows the screen box to rotate, so that the materials are evenly distributed in the screen box.It plays an important role in many industries, improving product quality and production efficiency.
| Model No. | Screen Diameter (mm) | Power(kw) | Sizing Accuracy(%) | Capacity (kg/hour) |
| B-600 | 560 | 0.25~0.55 | 85~95 | 200 |
| B-800 | 760 | 0.55~0.75 | 85~95 | 500 |
| B-1000 | 950 | 0.75~1.1 | 85~95 | 800 |
| B-1200 | 1150 | 1.1~1.75 | 85~95 | 1200 |
| B-1500 | 1450 | 1.5 | 85~95 | 1600 |
| B-1800 | 1750 | 3~4.5 | 85~95 | 2000 |
Features & Advantages
The three-element rotary vibrating screen has the following features and advantages:
1. High screening accuracy, single layer and multiple layers can be classified simultaneously, screening up to 500 mesh (28 microns), filtration up to 5 microns
2. Small size, does not take up space, easy to move, only takes 3-5 minutes
3. The mother-and-daughter grid design ensures long-lasting use of the screen and easy replacement of the screen.
4. Automatic operation, high efficiency, automatic discharge of coarse and fine materials, automatic or manual operation
5. The design is exquisite and durable, and the direction of the discharge port can be adjusted arbitrarily.
(Materials below are just parts of our material list, for complete list, please consult us)
1. Chemical industry: resins, coatings, industrial drugs, cosmetics, paints, traditional Chinese medicine powder, etc.
2. Food industry: sugar powder, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, juice, etc.
3. Metal, metallurgical mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder, manganese dioxide electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate , quartz sand, etc.
4. Pollution treatment: waste oil, waste water, dyeing and finishing waste water, auxiliaries, activated carbon, etc.
1. Packaging: First clean the device thoroughly and make sure all parts are in good condition. The equipment is then wrapped in wooden boxes to provide protection and cushioning
2. Fixing and padding: In the packaging box, use appropriate padding (such as foam, bubble wrap, etc.) to fix and fill the gaps to prevent the device from moving and colliding during transportation.
3. Transportation method: Choose the appropriate land, sea or air transportation method based on the size, weight and destination of the equipment.
FAQ
Q1: How to choose the right three-element rotary vibrating screen
A: Our engineers will provide suitable machine model based on the use condition of clients, so please let us know
below information:
What materials do you handle and the density.
What capacity do you need for one hour
What mesh number do you need
After knowing above info, our experts will work out the right model for your purpose.
Q2: How to adjust the screening particle size of the three-element rotary vibrating screen?
A: The screening particle size of the three-element rotary vibrating screen can be achieved by replacing the screens with different apertures. According to actual needs, select the appropriate screen and install it at the corresponding level to achieve the required screening granularity.
Q3: How to solve the faults or problems of the three-element rotary vibrating screen?
A: If you encounter a fault or problem, first check whether there are impurities or blockages that cause poor screening results. Make sure the screen is installed correctly and is not loose or damaged. Check whether the vibration motor and transmission system are functioning properly. If the problem cannot be solved, please contact us.
