Multi-Purpose Electric Belt / Chain Bucket Elevator For Bulk Material Lifting

Basic Information
Place of Origin: CHINA
Certification: ISO,CE
Model Number: TDTG60/33 Bucket Elevator
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000sets/year
Detail Information
Name: Bucket Elevator Feature: Large Capacity
Bucket Volume: 1.8L-6.5 Or Customized Bucket Material: PP Or SUS
Discharge Port: Single Or Multiple Application: Food, Chemical, Pharmacy, Mining.,etc
High Light:

Electric Belt Bucket Elevator


Electric Chain Bucket Elevator


Bulk Material Lifting Chain Bucket Elevator

Product Description

Multi-Purpose Electric Belt/ Chain Bucket Elevator For Bulk Material Lifting


Product Description


As a very widely used vertical conveying equipment, bucket elevator is divided into ring chain, plate chain and belt three types.  According to the speed of the hopper running speed is different, the bucket elevator can be divided into: centrifugal discharge, gravity discharge and mixed discharge three forms. Centrifugal discharge bucket speed is faster, suitable for conveying powder, granular, small block and other small grinding and polishing materials; The bucket speed of gravity discharge is slow, which is suitable for conveying blocky, large proportion and large grinding and dressing materials, such as limestone and clinker.

Technical Parameter


Product Specification
Product name
Bucket elevator
Frame Material
Carbon steel, SUS304, SUS316
limestone, coal, gypsum, clinker, dry clay, others
TD/TG/NE/TH Bucket Elevator
Based on different models
Customized size
Design drawing
Large throughput, high lifting height, stable and reliable operation, long life
Conveying capacity
Based on different models from 1 to 150tons per hour

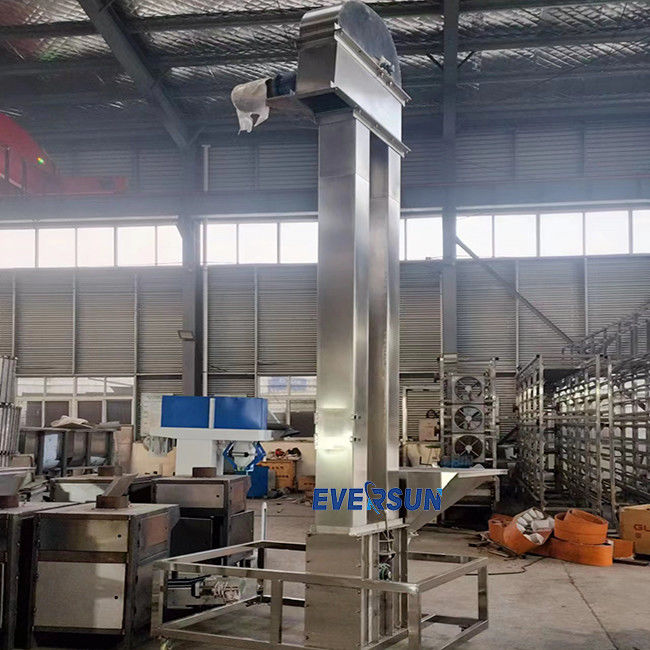

Multi-Purpose Electric Belt / Chain Bucket Elevator For Bulk Material Lifting 0


Working principle


The hopper scoops the material from the storage below, and as the conveyor belt or chain is raised to the top, it flips down around the jacking wheel, and the bucket elevator dumps the material into the receiving tank. The transmission belt of the bucket elevator with transmission is generally made of rubber belt, which is installed on the transmission drum under or above and the reversing drum above and below. Chain driven bucket elevators are generally equipped with two parallel transmission chains, with a pair of transmission sprockets above or below, and a pair of directional sprockets below or above. Bucket elevators are generally equipped with a housing to prevent dust from flying in the bucket elevator.


Multi-Purpose Electric Belt / Chain Bucket Elevator For Bulk Material Lifting 1


Customer site


Bucket elevator is widely used in grain, feed and seed processing industry. Bucket elevator can be used to vertically lift the limestone, coal, gypsum, clinker, dry clay and other granular materials through the crusher, as well as raw materials, cement, pulverized coal and other powdery materials.


Multi-Purpose Electric Belt / Chain Bucket Elevator For Bulk Material Lifting 2


Technical support and service


We offer technical support and service for our bucket elevator. Our experienced engineers and technicians can provide you with comprehensive assistance with installation, maintenance, troubleshooting, and more. We can help you with:

1. Design advice and problem solving

2. Installation and commissioning support

3. On-site maintenance and troubleshooting

4. Remote technical support

5. Spare parts supply

For more information about our bucket elevator technical support and service, please contact us.
