Vertical Conveying System Z Type Elevator For Grain With Capacity 0 - 20m3/H

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO, CE
Model Number: HYZT
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden box
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Hopper: Food Grade ABS Plastic/C.S/SS Material: Carbon Steel/ SS304/316
Motor: General Motor/ Explosion-proof Motor Lifting Height: 50m
Drive Type: Chain Drive Application: Grain, Seeds, Food, Etc
Power: 0.75-22KW Bucket Volume: 1.8-10L Or Customized
High Light:

Vertical Conveying System Z Bucket Elevator


Grain Conveying Z Type Elevator


Chain Bucket Elevator 20m3/H

Product Description

Product Description:

Chain Bucket Elevator is an efficient vertical conveying system designed for a variety of bulk materials and granular products. It consists of a Z type vertical elevator, Z-shaped conveyors, and food-grade Z-bucket elevator. This high-efficiency conveying system can reach a maximum conveying height of 40 meters and a conveying capacity of up to 10 tons per hour, making it ideal for the transportation of grain, seeds, and food. The bucket volume of this product can be customized from 1.8-10L, and it is available in two types, frequency conversion control or manual, with a power range of 0.75-22KW. The hopper is made of food grade ABS plastic, carbon steel, or stainless steel.


Technical Parameters:

Product Attributes Specifications
Hopper Food Grade ABS Plastic/C.S/SS
Capacity 0-20m3/h
Power 0.75-22KW
Motor General Motor/ Explosion-proof Motor
Bucket Volume 1.8-10L Or Customized
Material Carbon Steel/ SS304/316
Lifting Height 50m
Drive Type Chain Drive
Application Grain, Seeds, Food, Etc
Type Frequency Conversion Control Or Manual
Special Feature High-capacity Chain bucket elevator, Customizable design, Z-shaped conveyors

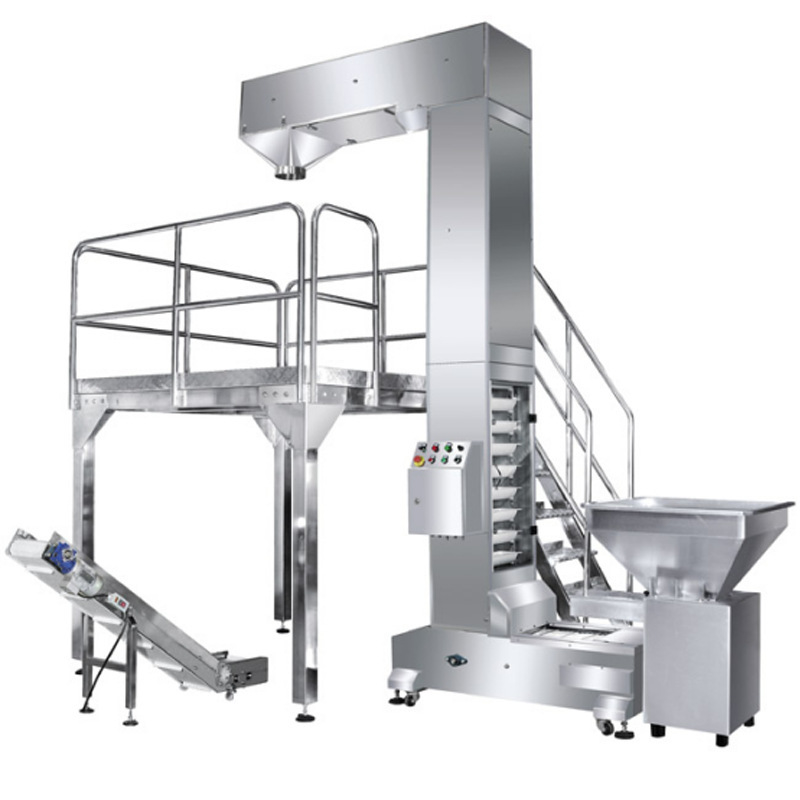

Vertical Conveying System Z Type Elevator For Grain With Capacity 0 - 20m3/H 0


EVERSUN HYZT Chain Bucket Elevator is the ideal conveying equipment . It is a high-efficiency, reliable and stable lifting machine. It is made of high-quality carbon steel, SS304 or SS316 with FDA approved food grade materials. The power is from 0.75-22KW and the lifting height is up to 50m. With frequency conversion control or manual operation system, it has high stability and durability, which makes it a perfect choice for the food industry, chemical medicine, hardware,feed, candy, dry and fresh fruit, PVC plastic particles, pet food, etc.

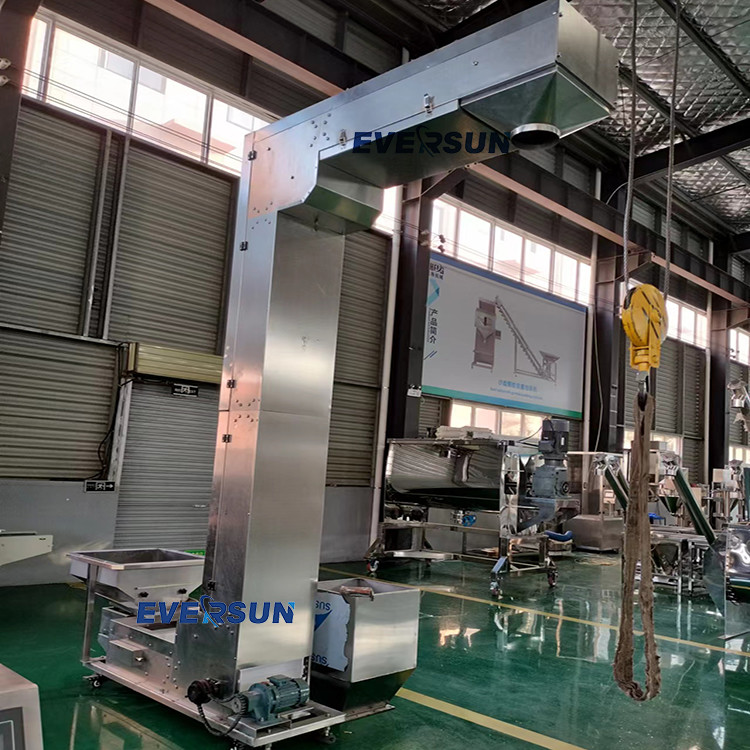

Vertical Conveying System Z Type Elevator For Grain With Capacity 0 - 20m3/H 1


Eversun Chain Bucket Elevator with Customizable Design
  • Z-shaped conveyors, enabling a customizable design;
  • High efficiency and low noise;
  • Easy installation and maintenance;
  • High quality motor and components;
  •  The loading speed is adjustable and the operation is convenient.

Support and Services:

Chain Bucket Elevator Technical Support and Service

Our technical support and service team is committed to providing the best support for your Chain Bucket Elevator. We provide comprehensive technical assistance, including installation, maintenance, and troubleshooting of your Chain Bucket Elevator.


Our expert technicians can provide you with the installation and set-up of your Chain Bucket Elevator. We will ensure that it is installed correctly and in accordance with your specific needs.


We provide regular maintenance services to ensure that your Chain Bucket Elevator is running smoothly and efficiently. Our maintenance services include checking, cleaning, and replacing components as needed.


If you experience any problems with your Chain Bucket Elevator, our technical support and service team can provide you with troubleshooting assistance. We can help you identify the cause of the problem and provide a solution to get your Chain Bucket Elevator running again.



  • Q: What is the Brand Name of the Chain Bucket Elevator?
    A: The Brand Name is EVERSUN.
  • Q: What is the Model Number of the Chain Bucket Elevator?
    A: The Model Number is HYZT.
  • Q: Where is the Chain Bucket Elevator from?
    A: The Chain Bucket Elevator is from China.
  • Q: What certifications does the Chain Bucket Elevator have?
    A: The Chain Bucket Elevator has ISO and CE certifications.
  • Q: What is the minimum order quantity for the Chain Bucket Elevator?
    A: The minimum order quantity for the Chain Bucket Elevator is 1 set.
