DZJX Inclined Chain Bucket Elevator Z Type Bucket Elevator High Efficiency

Basic Information
Place of Origin: CHINA
Certification: ISO,CE
Model Number: DZI
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 5-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Inclined Bucket Elevator Voltage: As Per Order
Lifting Height: 2-10 Meters Bucket Volume: 1.8L Or 3.8L
Material Feature: Fire Resistant ApplicationPowder,Particle,etc: Plastic, Food, Pet Food,hardware, Etc
Bucket Material: PP,SUS304 Or Carbon Steel Frame Material: Carbon Steel Or SUS304
High Light:

Inclined Chain Bucket Elevator


DZJX Inclined Bucket Elevator


Inclined Z Type Bucket Elevator

Product Description


Product introduction

High Efficiency DZJX Inclined Bucket Elevator Z Type Bucket Elevator


Z type inclined bucket elevator is a fixed device of mechanical conveying equipment, mainly suitable for powder, granular and small pieces of material continuous vertical lifting, it can be widely applied in incline convey for solid food, such as rice, chip potato, candy, coffee bean and so on. It composes the automatic quantitative packing system combined with the weight and packing machine, which is applying widely.
(1)Conveying speed are adjustable,can realize uniform feeding;

(2)Zero crushing in conveying process;
(3)Full-closed structure,no pollution;
(4)Single outlet or multi-outlet
(5) Bucket can be customized according to customer requirements,PP/ABS/Stainless steel etc

Product parameter

 Model  Power  Lifting height  Weight  Size
 DZI-190 inclined
 Bucket Elevator
 380V/0.75KW 1.9 m 180KG  2100*730*2350mm
 DZI-200 inclined
 Bucket conveyor
 2.0 m
 200KG 2300*850*2850(m)

More models support customization

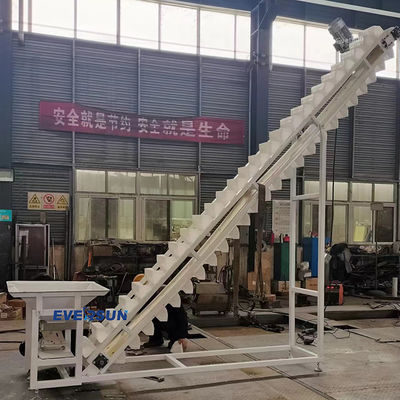

DZJX Inclined Chain Bucket Elevator Z Type Bucket Elevator High Efficiency 0



(1)Driving power


The driving power is small, and the hopper intensive arrangement with inflow feeding, induced unloading and large capacity is adopted. When the material is lifted, there is almost no backfeed and digging phenomenon, so the ineffective power is less.


(2)Lifting range


The lifting range is wide, and this kind of elevator has less requirements for the type and characteristics of the materials, which can not only improve the general powdery and small granular materials, but also improve the materials with large grinding and polishing properties. Good sealing, less environmental pollution.


(3)Operational capability


Good operation reliability, advanced design principle and processing method, ensure the reliability of the whole machine operation, trouble-free time of more than 20,000 hours. High lifting height. The elevator runs smoothly, so it can achieve a high lifting height.


(4)Service life


Long service life, the feed of the elevator takes the inflow type, there is no need to dig with a bucket, and there is rarely extrusion and collision between materials. The machine is designed to ensure that the material is less scattered during feeding and unloading, reducing mechanical wear.



As the main part of the packaging line, the Inclined Bucket Elevator can lift the product from a low position to a combination scale, packing machine, mixing machine or other equipment, whether your product is feed, iron powder or potato chips, it can be used, and it can accommodate and transport wet and dry products as well as granules and powders.

DZJX Inclined Chain Bucket Elevator Z Type Bucket Elevator High Efficiency 1
