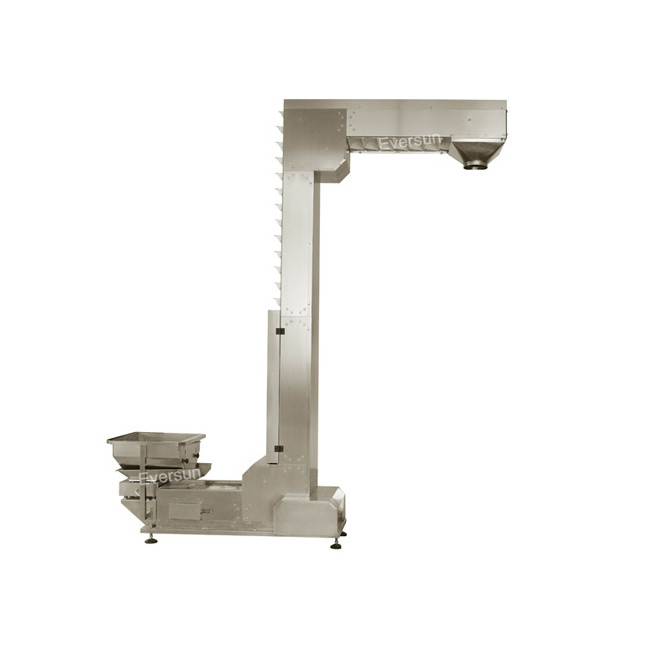

A3 Chain PLC Control Reciprocating Vertical Conveyor Z Type Hoist

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: CE, ISO
Model Number: HYZT
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export case
Delivery Time: within 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000/Set/year
Detail Information
Material: Carbon Steel, Stainless Steel Traction Height: 20m-50m
Hoist Capacity: 2t/h Traction Force: 1000N
Control Type: PLC Control Chain Type: A3
Protection Level: IP54 Traction Speed: 2.5m/s
High Light:

A3 Chain Bucket Elevator


PLC Control Vertical Conveyor


Z Type Hoist Vertical Conveyor

Product Description

Product Description:

Our Chain Bucket Elevator is designed and manufactured with advanced technology, using high-quality materials such as carbon steel for reliable and efficient operation. With a bucket size of 0.1m³, it has a hoist capacity of 2t/h and a traction force of 1000N. The Z type bucket elevator is controlled by PLC control, which is reliable and has a long service life. It is simple to install and offers excellent performance. It is suitable for a variety of materials and can be used in a wide range of industries, such as mining, chemical, food, and other industries. The Z type bucket elevator is designed for maximum safety and is easy to operate and maintain. It is the perfect choice for handling bulk materials in an efficient manner.


Capacity 0-6m3/h 0-8m3/h 0-12m3/h 0-15m3/h 0-20m3/h
Bucket Volume 2L 3L 5L 7L 10L
No.s of discharge port Single Single or Muti-discharge port
Lifting Height Up To 50m Up To 50m Up To 50m Up To 50m Up To 50m
Power 0.75-22KW 0.75-22KW 0.75-22KW 0.75-22KW 0.75-22KW
Voltage As per order
Construction materials Carbon steel, SS304/316
Bucket materials Food grade PP or ABS, SS304/316, Carbon steel


A3 Chain PLC Control Reciprocating Vertical Conveyor Z Type Hoist 0


1. When the vertical elevator works, the return journey of the shelf does not occupy the working beat, and the conveying efficiency is high, and is not affected by the conveying speed.


2. Only one piece of goods can be transported, and the material has size limitations.


3. Large bearing range, Max up to 2000Kg.


4. It is used with the inlet and outlet conveying equipment to achieve complete automation of the conveying process and avoid the instability caused by manual operation.


5. Compact structure, small footprint.


6. Safe and reliable, easy to maintain, low operating costs, effectively reduce transportation costs.


A3 Chain PLC Control Reciprocating Vertical Conveyor Z Type Hoist 1


The Chain Bucket Elevator is a reciprocating vertical conveyer designed to provide reliable performance with low maintenance cost. This Chain Bucket Elevator is suitable for conveying materials of 2t/h Traction Capacity with 2.5m/s Traction Speed, and is equipped with a 0.1 m³ Bucket Size and A3 steel chain that is known for its strength and durability. The 7.5 kW Drive Power ensures reliable performance with minimal power consumption. This Chain Bucket Elevator is a great choice of Z type bucket elevator for conveying a range of materials.


Support and Services:

Chain Bucket Elevator Technical Support and Service

Our Chain Bucket Elevators are designed to provide reliable and efficient handling of a wide variety of bulk materials. Our technical support team is available to answer any questions you may have and help you find the most efficient solution for your needs.

Our technicians are experienced in all aspects of installation, commissioning and maintenance of our chain bucket elevators. We can provide on-site assistance to ensure that your installation and operation is safe and meets all applicable standards and regulations. We can also provide comprehensive training on operating and troubleshooting your system.

We also offer a complete range of spare parts and accessories to keep your equipment running smoothly. We can provide you with the right parts for your specific needs and can offer advice on the best replacement and maintenance interval for your system.

For comprehensive technical support and service for your Chain Bucket Elevator, contact our dedicated support team today.


Packing and Shipping:

Packaging and Shipping for Chain Bucket Elevator

The Chain Bucket Elevator will be securely packaged to avoid any damage during transportation. The packaging materials used are:

  • A wooden box
  • Bubble wrap

The elevator will be shipped in a sea transportation or air transportation, depending on the size and weight of the elevator. The packaging materials will ensure that the elevator is protected from shock, vibration and any other external factors.



Chain Bucket Elevator


Q1: What materials can a chain bucket elevator handle?
A1: Chain bucket elevators are designed to handle a variety of materials, including grains, powders, and pellets.

Q2: What are the benefits of using a chain bucket elevator?
A2: Chain bucket elevators are reliable, efficient, and cost-effective. They are also highly customizable to meet your specific needs.

Q3: How does a chain bucket elevator work?
A3: A chain bucket elevator uses a chain and sprocket drive to move buckets filled with materials along an incline or vertical path. The chain is driven by a motor, which lifts the buckets to the desired height and deposits them into a discharge chute.

Q4: What safety features does a chain bucket elevator have?
A4: Chain bucket elevators are equipped with safety guards, brakes, and overload protection systems to ensure safe operation.

Q5: What size chain bucket elevators are available?
A5: Chain bucket elevators are available in a variety of sizes and capacities to meet any application requirements.
