HYZT-5L Carbon / Stainless Steel Chain Bucket Elevator 0 - 12m3/H Up To 50m 0.75 - 22KW

Basic Information
Place of Origin: CHINA
Certification: ISO,CE
Model Number: HYZT
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 5-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Chain Z Type Bucket Elevator Drive Type: Motor Drive
Lifting Height: Up To 50m Bucket Capacity: Customizable
Discharge Port: Single Or Multiple ApplicationPowder,Particle,etc: Plastic, Food, Pet Food,hardware, Etc
High Light:

Stainless Steel Chain Bucket Elevator


12m3/H Chain Bucket Elevator


Carbon Steel Vertical Conveyor

Product Description

Product introduction

HYZT-5L Chain Bucket Elevator 0-12m3/H Up To 50m 0.75-22KW Carbon & Stainless Steel


Z-type bucket elevator is useful for navigating tight layout spaces for elevating the materials and discharging them into the required locations. This type of elevator has a horizontal bottom portion, a vertical portion, and again a horizontal portion that can be extended to suit the discharge requirement.


Z-type bucket elevator is also known as the rotary bucket hoist and Z-type feeder, Z-type bucket elevator is in a closed shell, with the hopper hanging on the chain conveying material. It can be horizontal – vertical – horizontal combination conveying. The Z-type bucket elevator can be single-point or multi-point feeding, through the automatic unloading device to complete a single-point or multi-point unloading. our Z type conveyor in chemical, plastic, food, pet food, puked food, snack food, renewable resources, hardware, chemical and other industries have been widely used.
Product parameter

Capacity 0-6m3/h 0-8m3/h 0-12m3/h 0-15m3/h 0-20m3/h
Bucket Volume 2L 3L 5L 7L 10L
No.s of discharge port Single Single or Muti-discharge port
Lifting Height Up To 50m Up To 50m Up To 50m Up To 50m Up To 50m
Power 0.75-22KW 0.75-22KW 0.75-22KW 0.75-22KW 0.75-22KW
Voltage As per order
Construction materials Carbon steel, SS304/316
Bucket materials Food grade PP or ABS, SS304/316, Carbon steel

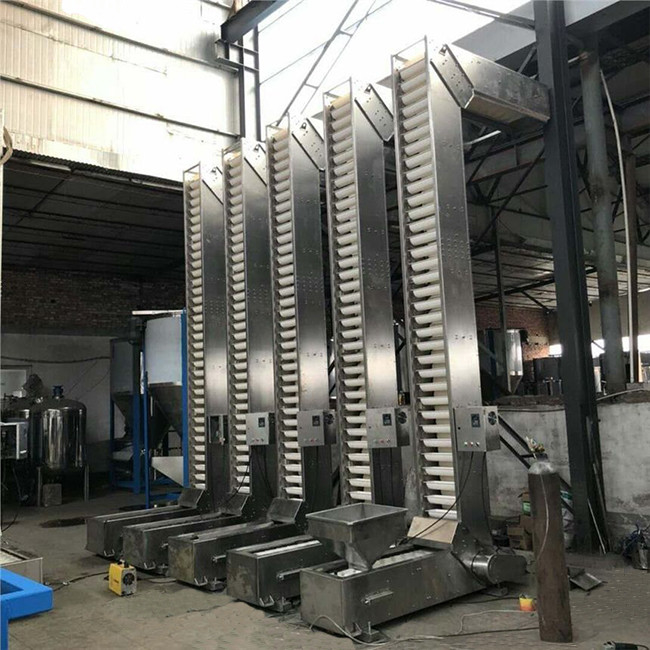

HYZT-5L Carbon / Stainless Steel Chain Bucket Elevator 0 - 12m3/H Up To 50m 0.75 - 22KW 0


1. The Z-type bucket elevator has the characteristics of being fully enclosed, with no leakage, no pollution, and prevents material damage.


2. The composition is flexible, there is little extrusion and collision between materials, and the material damage rate is low, which can reduce the generation of defective products, and is suitable for various occasions that need to deal with soft materials.


3. The driving power is small, and it adopts inflow feeding and induction unloading.


4. The lifting range is wide. This type of bucket elevator has fewer requirements on the types and characteristics of materials and can not only lift general powdery and small granular materials, and it can improve the materials with high abrasiveness.


5. Good operation reliability, advanced design principles, and processing methods ensure the reliability of the whole machine operation, the trouble-free time exceeds 20,000 hours, the lifting height is high, and the Z-type bucket elevator runs smoothly, so it can reach a higher lifting height.


6. 2-7 discharge ports are available, and multiple inlets and multiple discharge points can be combined into one system to merge or separate product flows as required.



As the main part of the packaging line, the multi-point feeding Z-type bucket elevator can lift the product from a low position to a combination scale or other equipment, whether your product is feed, iron powder or potato chips, it can be used, and it can accommodate and transport wet and dry products as well as granules and powders.

The multi-point discharge Z-type bucket type is suitable for conveying bulk, dry, free-flowing granular products and powders in a continuous and closed manner, with multi-point discharge, which can meet the continuous feeding of multiple silos in a row.

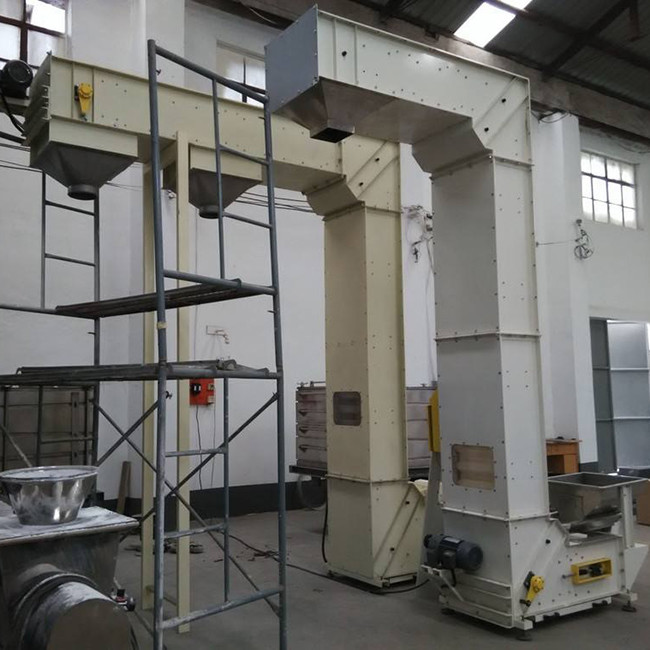

HYZT-5L Carbon / Stainless Steel Chain Bucket Elevator 0 - 12m3/H Up To 50m 0.75 - 22KW 1
