Multi Layers Building Sand Linear Vibrating Screen

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: EZXS-1020
Minimum Order Quantity: 1 set
Price: USD$2000~$7000 per set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Type: Linear Layer: 1~5
Motor: Italy OLI Motor, Swiss ABB Motor Mesh Size: 2~500
Application: Food, Chemical, Pharmacy, Mining.,etc Material: Stainless Steel 304
High Light:

linear vibrating sieve for building material

,

stainless steel linear vibrating screen


Product Description

High Output Stainless Steel Building Sand Linear Vibrating Screen



Product Introduction

Name: High Performance Carbon Steel Removing Impurity Linear Vibrating Screen
Mesh Size 2~500
Motor Italy OLI motor, Swiss ABB motor
Voltage Customized
Materials Carbon Steel, SUS304, SUS316L
Application powder, granule, bulk solids, liquid
Customized service Available

The EVERSUN linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh,

a vibration absorbing body an a vibration damping device. The excellent horizontal motors are used as the

power source to make the material be sifted on the screen while moving forward in a straight line. It can be

equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection,

washing, dehydration and other purposes.

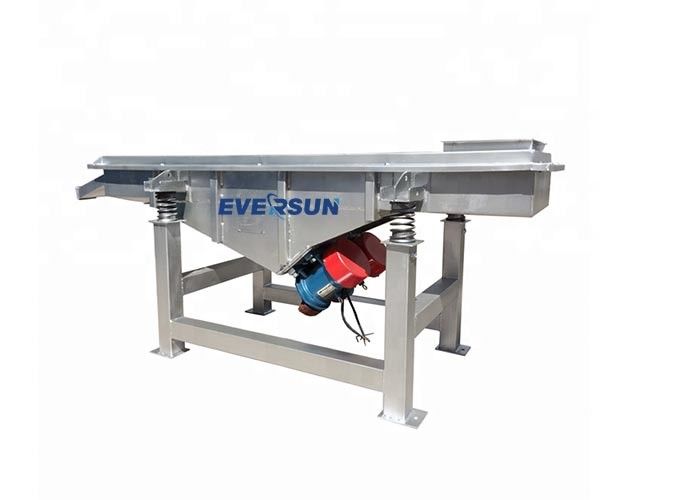

Multi Layers Building Sand Linear Vibrating Screen 0

Features and Advantages

1. Using a special grid structure design, the screens and parts can be easily changed and tighten.

2. With excellent structuer of machine and motors, the output is very high and working noise is low.

3. The material has a long stroke on the screen surface, high screening precision and large processing capacity.

4. At the same time of screening, the material has been transported over long distances.

5. Change the screen spacing and inclination according to material size, permeability probability and productivity
6. Different shapes and structures can be designed according to the production site.
7. Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.
8. All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good, firm

and reliable for very long time.

Multi Layers Building Sand Linear Vibrating Screen 1

Technical Parameter

Model Screen Specification(mm) Layers Mesh Size(mm) Particle Size(mm) Vibrating Frequency(r/min) Double Amplitude(mm) Power(KW)
EZYS-525 500X2500 1-6 0.074-10 0.06-15 960,1450 4-8 2X0.4,2X0.75
EZYS-1020 1000X2000 1-6 0.074-10 0.07-20 960 4-8 2X0.75,2X1.5
EZYS-1025 1000X2000 1-6 0.074-10 0.07-15 960,1450 5-8 2X0.4,2X0.75
EZYS-830 800X3000 1-6 0.074-10 0.1-20 960 5-8 2X0.75,2X1.5
EZYS-1030 1000X3000 1-6 0.074-10 0.1-20 960 6-8 2X0.75,2X1.5
EZYS-1224 1200X2400 1-3 0.074-10 0.1-23 960 6-8 2X0.75,2X1.5
EZYS-1230 1200X3000 1-3 0.074-10 0.1-23 960 6-8 2X1.5
Machine can be customized based on your need

Working Principle

The motor through a vee belt makes the eccentric of the activator start high-speed rotation.The operation of the eccentric block

generates a lot of centrifugal force, stimulate the screen forming a certain amplitude circle movement. Materials on the tilted

screen surface do continuous throwing movement after receiving the impulse given by the sieving box. During the process of

collision of materials and sifter, the grain which is less than the screen hole will be chosen so as to realize the grading.

FAQ

Q:How to choose the suitable machine?

A:It depends on the material, number of layers, every mesh size, capacity, material moisture, viscous and corrosive etc.

Q: How about the packing of machine, can I use my own logo on packages?
A:Normally packed in fumigation-free plywood case. We can mark your own logo on the packages. And also can be

neutral packing for your convenience.
