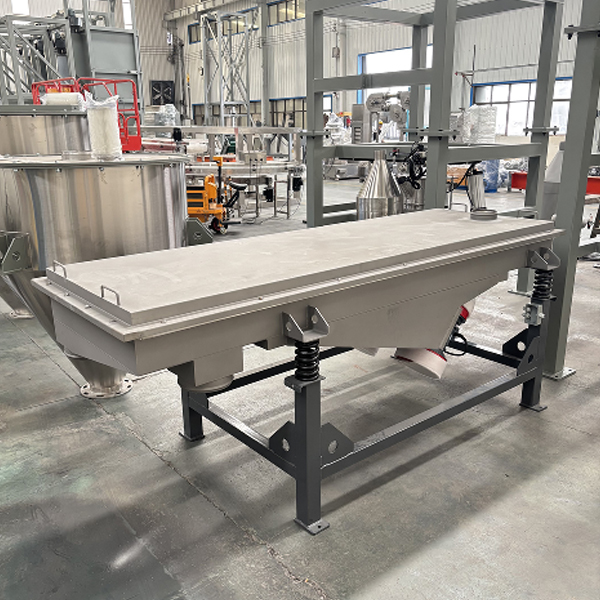

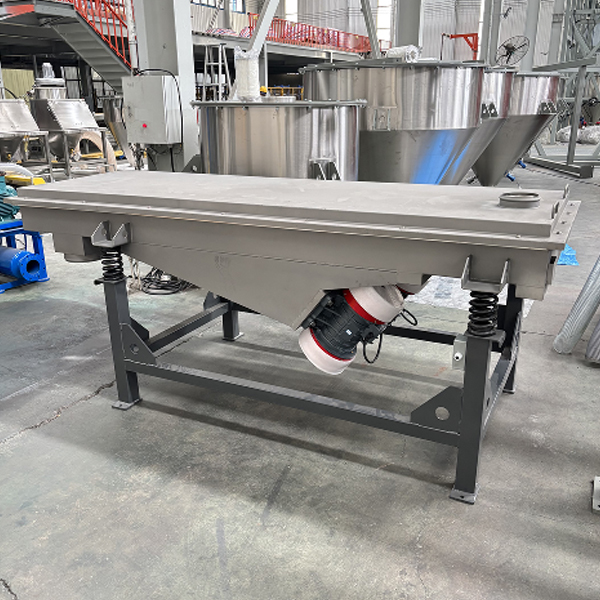

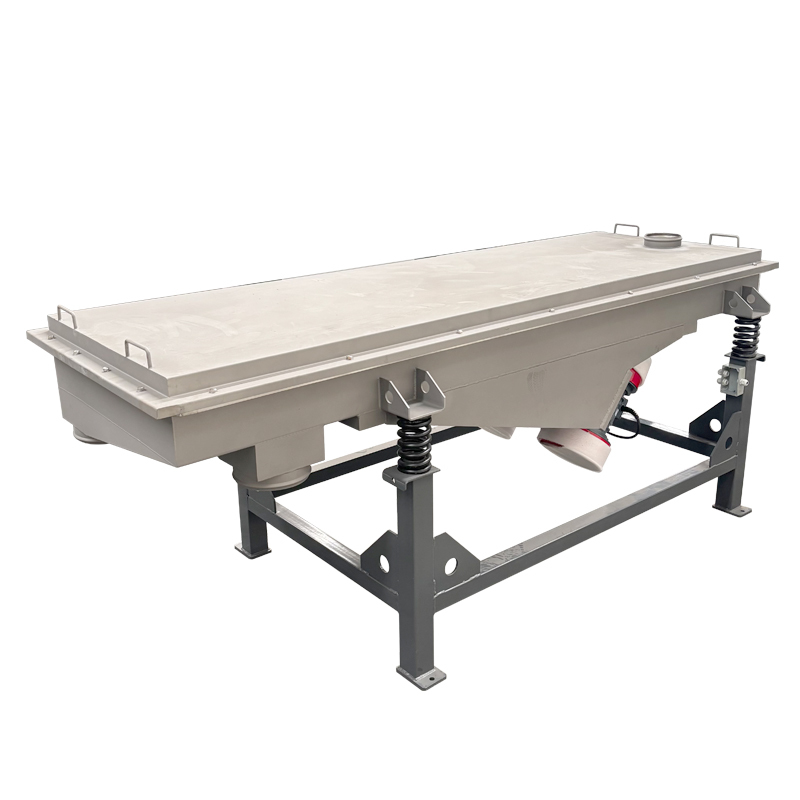

Linear Vibrating Screen

Product description

The linear screen is an efficient equipment that utilizes the linear vibration generated by the vibration motor to achieve the separation of materials.
It is composed of a sieve box, a vibration motor, a vibration damping system, etc. The materials move linearly along the sieve surface and are separated into products of different particle sizes through different mesh sizes of the sieve net. It has the characteristics of high screening accuracy, large processing capacity, and low noise. It is widely used in industries such as mining, building materials, chemical industry, and grain industry, and is suitable for the classification or impurity removal of dry and loose materials.


Working principle

The core working principle of the linear screen is that the vibration motor drives to generate directional linear vibration, which in turn drives the screen box and the screen mesh to perform periodic reciprocating motion.
After entering the sieve surface through the feed port, the materials will jump and move forward uniformly along the sieve surface under the force of linear vibration. During this process, the materials smaller than the sieve mesh size (the materials below the sieve) will pass through the sieve and fall into the receiving port below, while the materials with a larger size (the materials above the sieve) will continue to move forward and eventually be discharged from the end of the sieve surface, thus completing the classification or separation of the materials.

Product features

1. Sorting Accuracy: Linear vibration prevents material accumulation, the screen mesh can be customized, and the classification accuracy is high;
2. Processing Capacity: Compatible with different production volumes, capable of meeting small and medium batch to large-scale continuous production;
3. Stable Operation: With a vibration damping system, it has low noise, low wear, and low maintenance costs;
4. Wide Applications: Compatible with drying loose materials, applicable to multiple industries such as mining, chemical industry, and grain industry.


Product parameter

Production line diagram

1.Forklift filling the material into the storage hopper
2.A belt conveyor under the hopper, to transport the material to a linear vibrating screen
3.And another belt conveyor can transport the sieved material to other place
4.The belt conveyor can with dust cover and can add wheels
