Vibratory Screening Machine

Product description

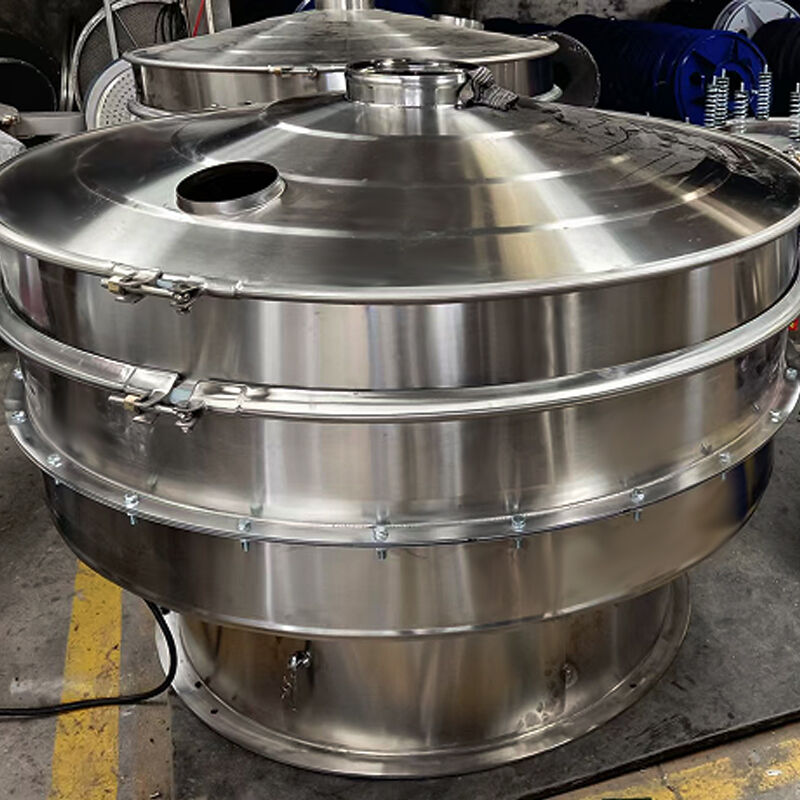

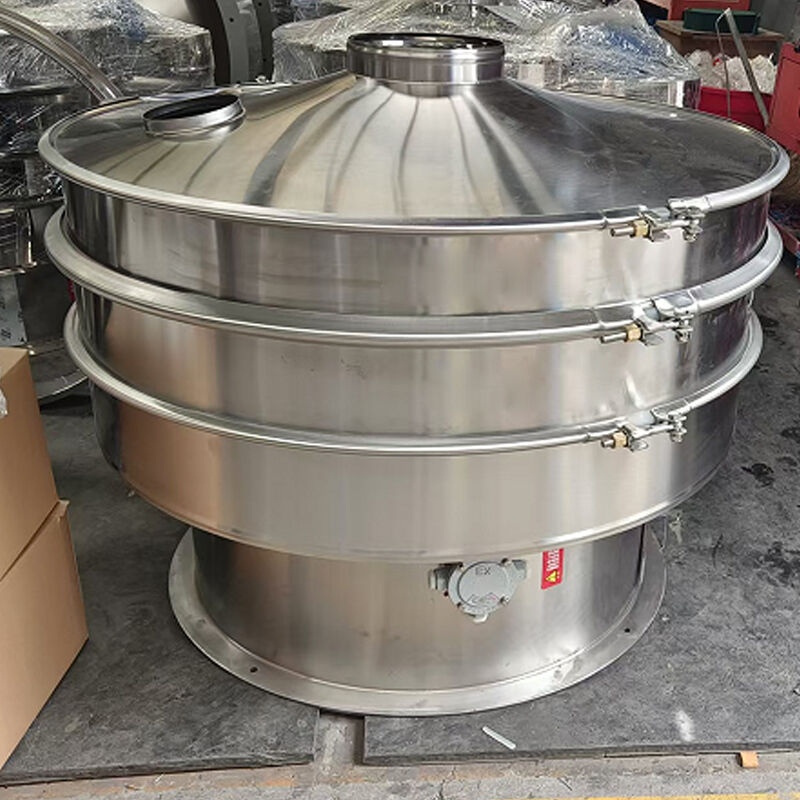

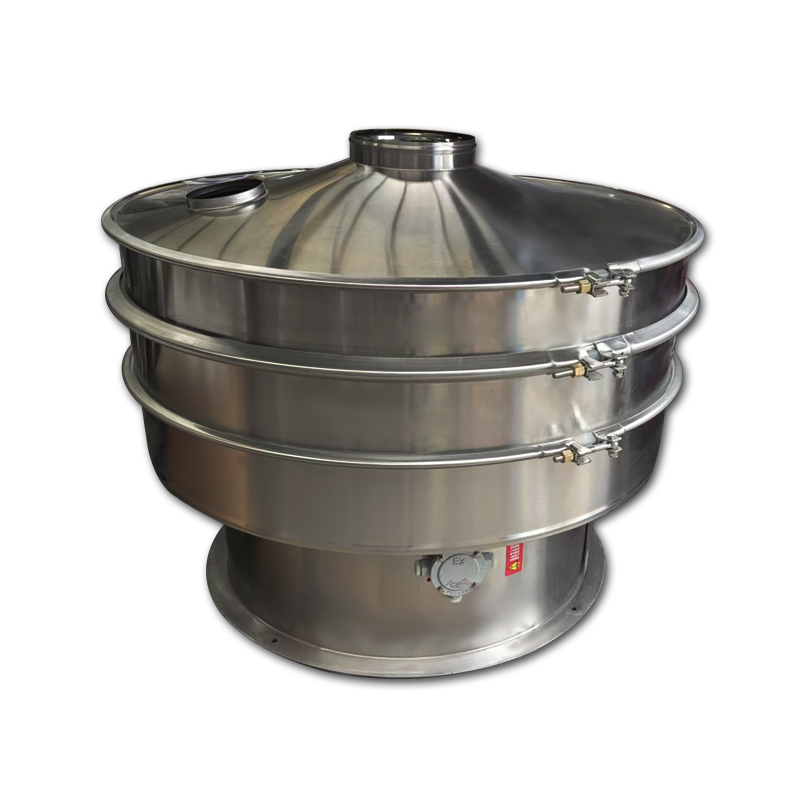

The rotary vibrating screen is an efficient and precise screening equipment. It uses a vertical vibration motor as the excitation source and adjusts the phase angle of the eccentric blocks at the upper and lower ends to make the screen surface produce a three-dimensional elliptical motion trajectory. This equipment is compact in design and has good sealing performance, which can effectively prevent dust from escaping. It also supports multi-layer screen mesh configuration to achieve multi-stage separation. The rotary vibrating screen is widely used in various industries such as chemical engineering, food, and abrasive materials, and is suitable for screening, filtering, and grading operations of particles, powders, and slurries. It has the advantages of large processing capacity, high screening accuracy, convenient screen mesh replacement, and simple maintenance.

Working principle
The rotary vibrating screen is driven by a vertical vibration motor. The excitation forces generated by the upper and lower eccentric blocks combine to form a unique three-dimensional elliptical motion trajectory. This movement causes the materials on the screen to simultaneously exhibit vertical throwing, horizontal rotation and dispersion effects, facilitating rapid layering of the materials: fine particles sink through the screen mesh, while coarse particles rise and spiral towards the discharge port, thereby efficiently completing screening, filtering or classification operations in a continuous operation.

Features & Benefits

1.Efficient and precise screening
The three-dimensional vibration enables the materials to be quickly stratified and screened, with a large processing capacity and high precision.
2. Sealed and environmentally friendly design
The fully enclosed structure effectively prevents dust and liquid from leaking, meeting the requirements of clean production.
3. Flexible and adjustable screening
By adjusting the eccentric block, the vibration force and the material trajectory can be changed, enabling it to handle various materials.
4. Support multi-level classification
Configurable multi-level screens can be used, enabling multi-stage screening in a single run, thereby enhancing efficiency.
5. Easy to clean and maintain
The screen can be replaced quickly, and the structural design facilitates thorough cleaning, meeting hygiene standards.
6. Stable and durable operation
Compact structure, high-quality materials, smooth operation, low noise, long service life.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening

Detail display
