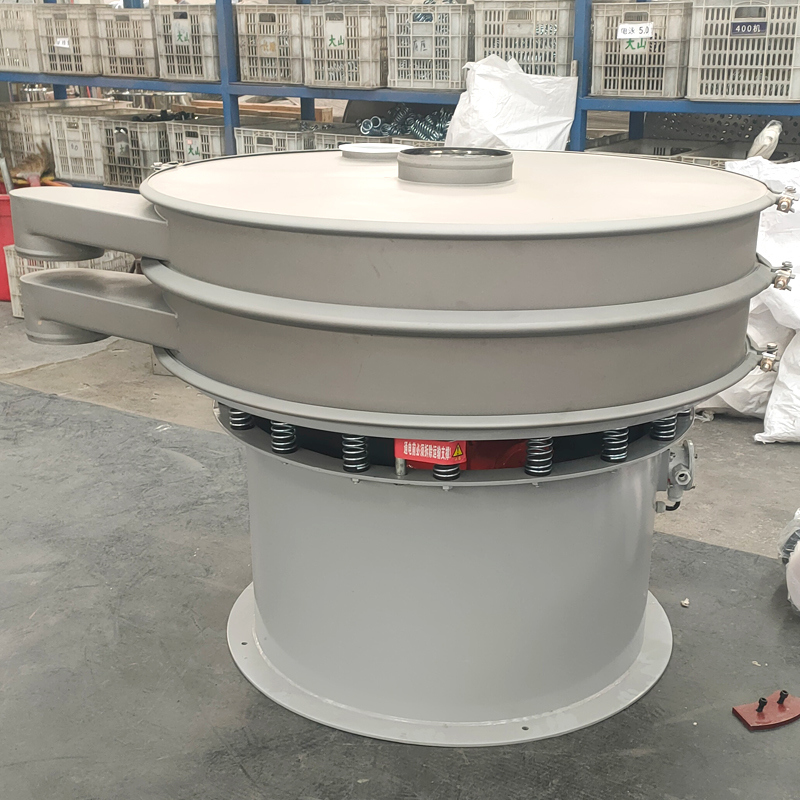

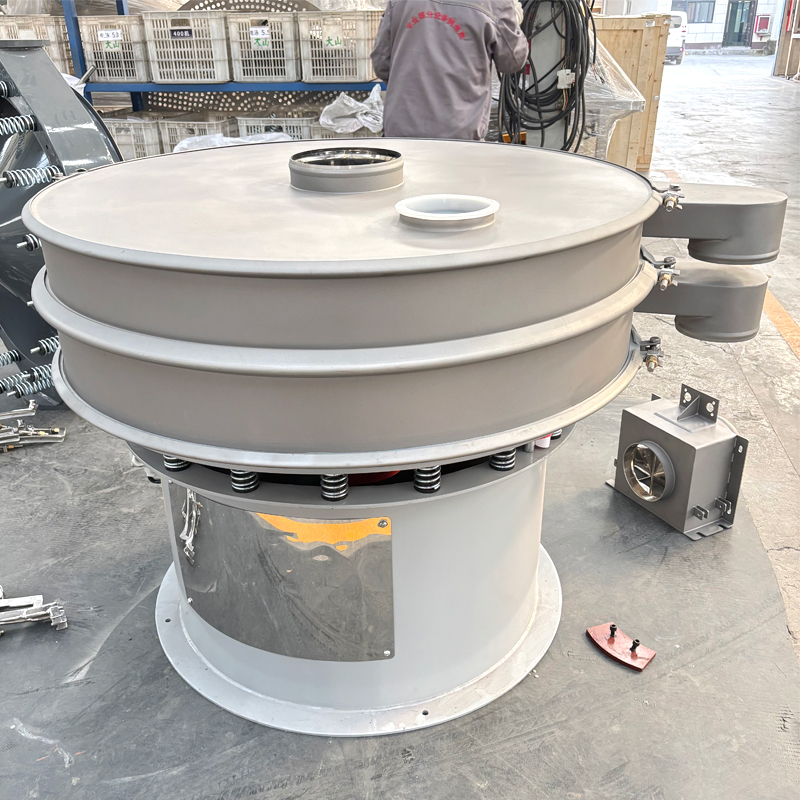

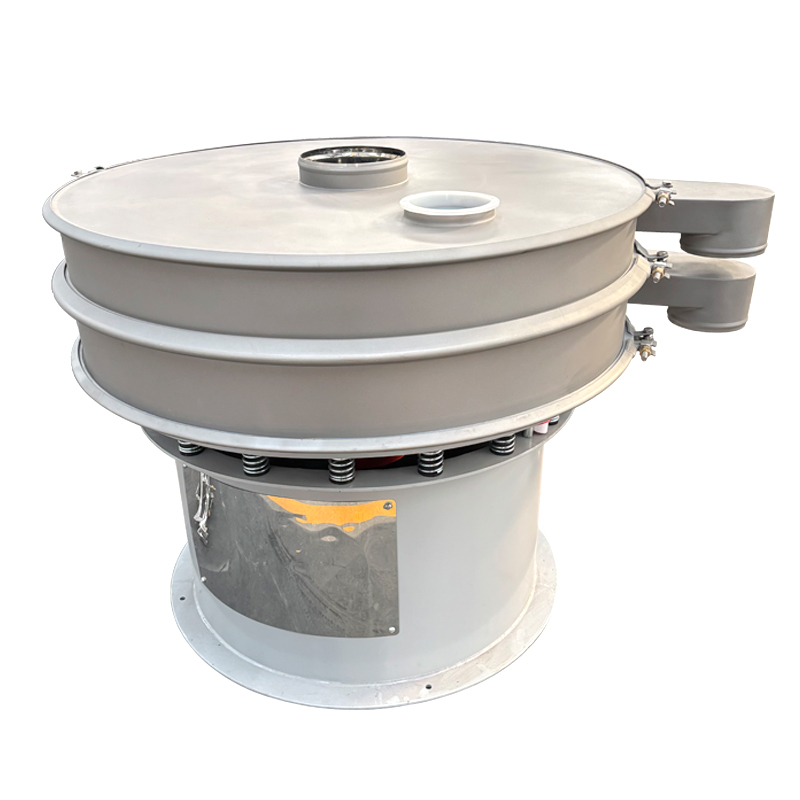

Vibratory Screening Machine

Product description

The rotary vibrating screen is an efficient and precise screening equipment, widely used in industries such as chemical engineering, food processing, and metallurgy. It uses a vertical vibration motor as the excitation source and can conveniently change the movement trajectory and residence time of the materials on the screen by adjusting the angle of the upper and lower eccentric blocks. This equipment features a compact structure, low noise, high efficiency, easy screen replacement, and complete enclosure without dust leakage. It can quickly complete the classification, filtration, and impurity removal of powder and granular materials.

Working principle
The core driving force of the rotary screen comes from the vertical vibration motor installed at the bottom of the screening machine. At the upper and lower ends of the motor shaft, there are eccentric weights that can be adjusted in angle.
When the motor rotates, the centrifugal forces generated by these two weights combine to form a three-dimensional composite force: on the horizontal plane, the centrifugal force causes the materials to spread outward along a spiral trajectory; on the vertical plane, it causes the materials to undergo a throwing motion.
This complex force causes the materials on the sieve to simultaneously undergo three movements: horizontal rotation, vertical vibration, and inclined surface throwing. As a result, the materials spread evenly from the center, fine particles quickly pass through the sieve mesh, medium and coarse particles move towards the edge and are discharged through different outlets, thereby achieving efficient classification, screening, or impurity removal.
By adjusting the phase angle between the upper and lower weights, the spreading speed of the materials and the screening accuracy can be precisely controlled.

Features & Benefits

Efficient and precise screening: Utilizing a unique three-dimensional vibration principle, the materials are fully dispersed and stratified on the screening surface, resulting in high screening efficiency and accurate precision.
2. Fully enclosed structure: Adopting a sealed design, it can effectively prevent dust from flying and improve the working environment. It is suitable for industries with high requirements for cleanliness and also facilitates the recovery of materials.
3. Easy to replace the screen: The screen is usually designed with a sub-frame and main frame structure or a tensioned design. Replacing the screen is quick and convenient, reducing maintenance costs and downtime.
4. Low noise, long lifespan: The equipment operates smoothly with minimal noise; internal components usually employ shock-absorbing devices such as rubber springs, which have little impact on the foundation, and the core components are durable with a long service life.
5. Easy to adjust: By adjusting the phase angle of the weights at the upper and lower ends of the vibration motor, the movement trajectory of the material on the sieve surface can be conveniently changed to meet the screening requirements of different materials.
6. Multi-level classification: You can configure 1 to 5 layers of screens according to your needs. At the same time, it can perform 2 to 6 levels of classification or filtration, and complete the separation of various specifications in one go.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening
