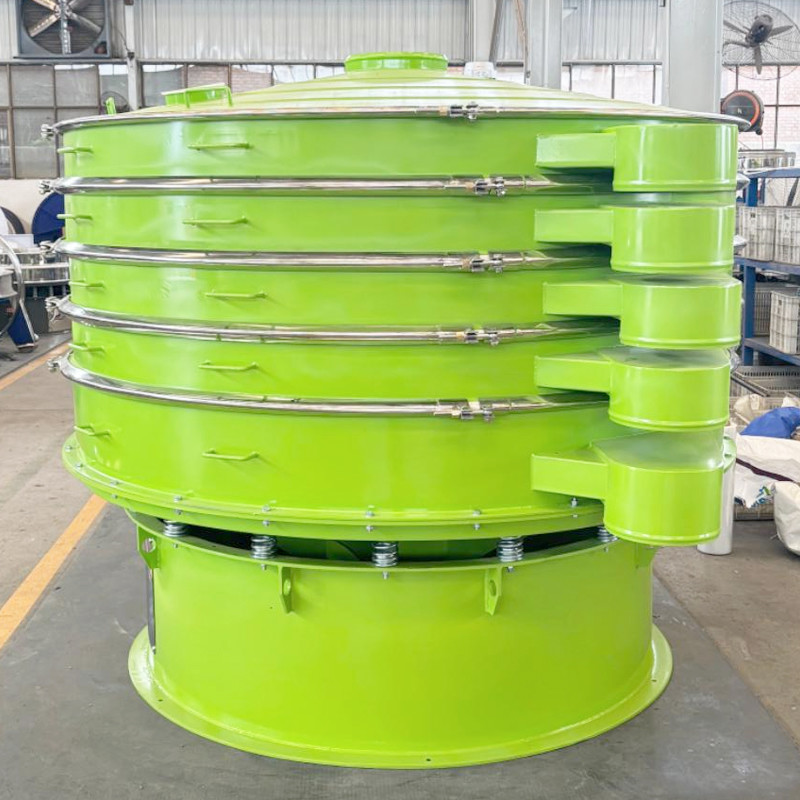

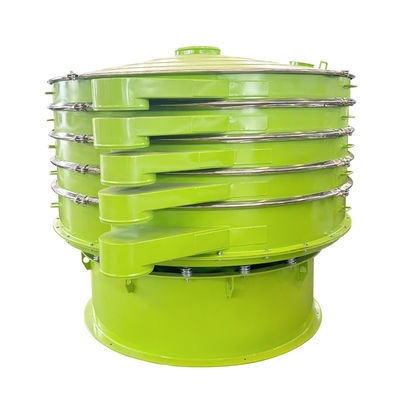

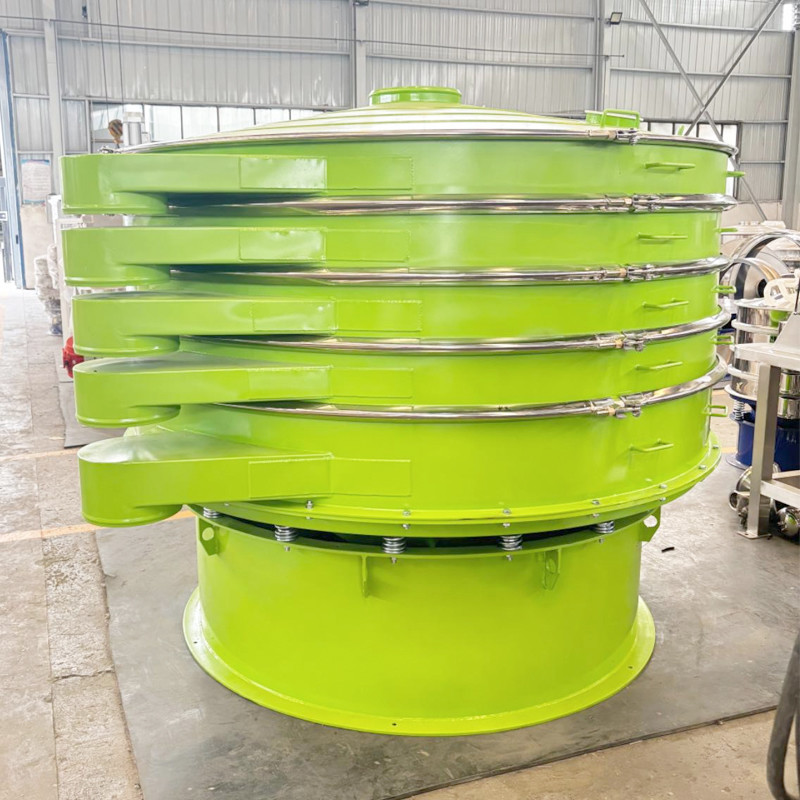

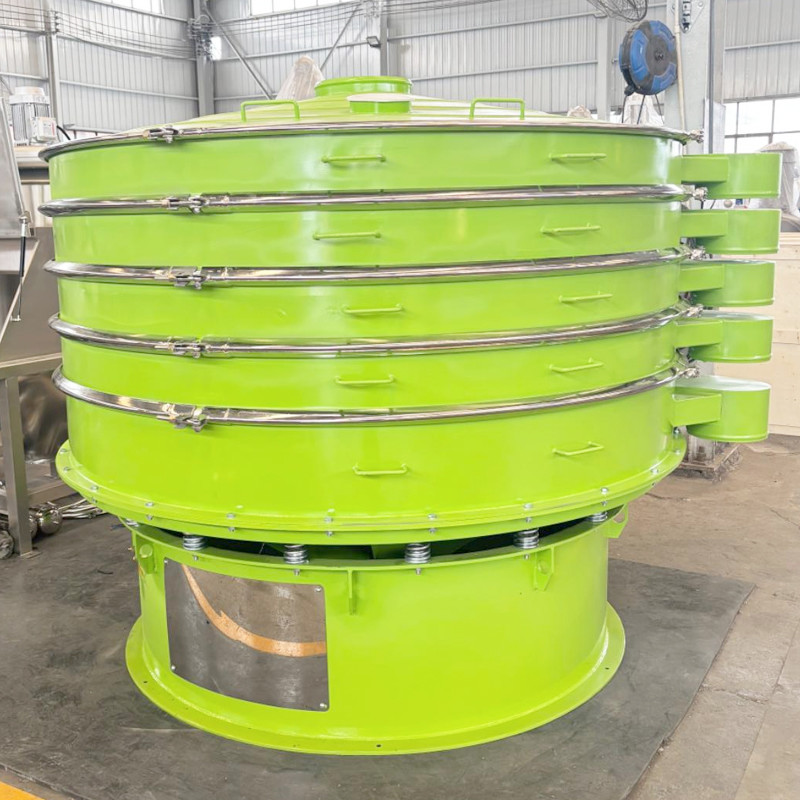

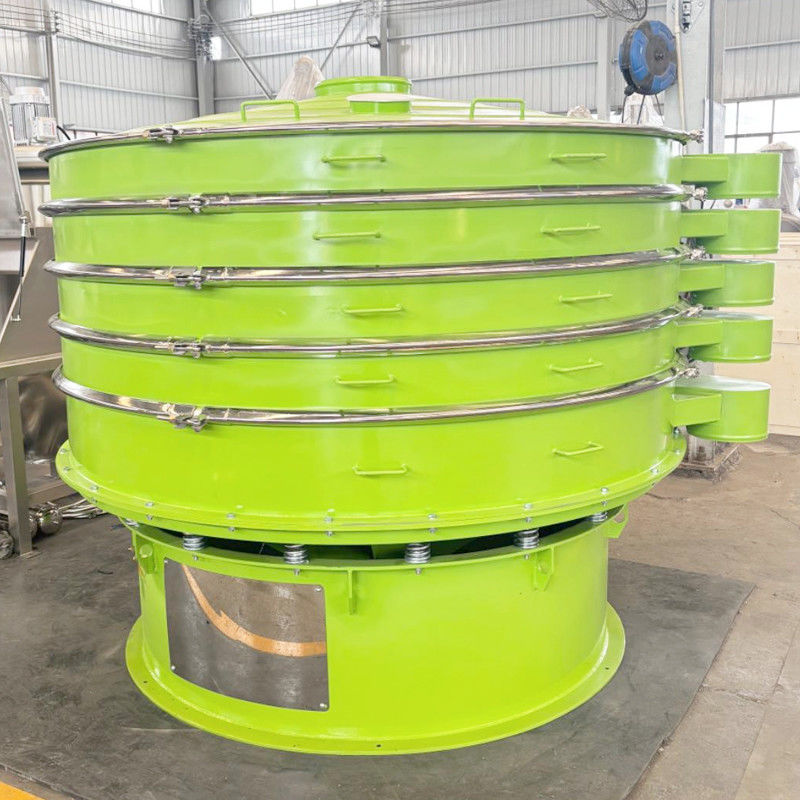

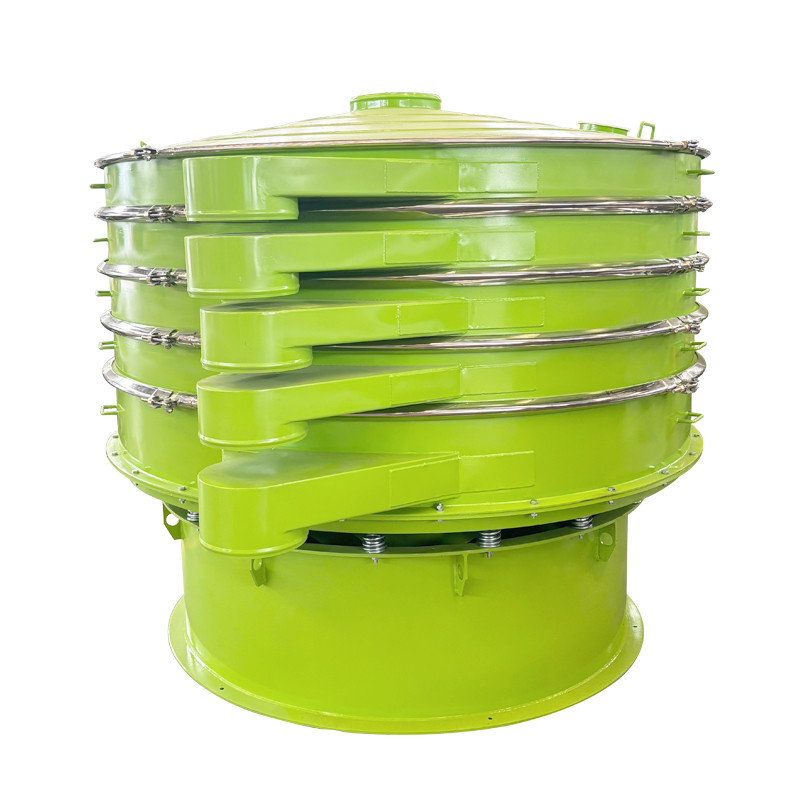

Vibratory Screening Machine

Product description

The rotary vibrating screen is a highly efficient and precise screening equipment. It uses a vibrating motor as the excitation source and is specially designed to generate three-dimensional vibration on the screen surface. The materials spread and move in a spiral shape from the center to the periphery on the screen surface, achieving multi-layer classification screening. It features high screening accuracy and large processing capacity. The screening particle size can be flexibly adjusted. It is widely used in the chemical, food, and pharmaceutical industries. It can effectively separate granular and powdered materials of different particle sizes. Moreover, it has a compact structure, good sealing performance, and is easy to clean and maintain, significantly improving the efficiency and quality of material screening.

Working principle
The rotary vibrating screen takes the vibrating motor as the core power source. The eccentric blocks at both ends of the motor rotate at high speed to generate centrifugal force. The vibration is transmitted to the screen body through the supporting springs, forming a three-dimensional vibration on the screen surface that is both horizontal, vertical and torsional. After the materials fall from the center of the screen surface, they rapidly spread in all directions under the complex vibration effect. Particles smaller than the screen holes pass through the screen mesh to become under-screen materials, while those larger than the screen holes are discharged along the edge of the screen surface. By adjusting the motor's excitation force, frequency and the mesh size of the screen mesh, efficient classification and screening of materials of different particle sizes can be precisely achieved.

Features & Benefits

1. High screening accuracy. Three-dimensional vibration fully disperses the materials, enabling precise screening of fine materials.

2. Large processing capacity, rapid spiral movement of materials, increasing the processing capacity per unit time;

3. Strong flexibility. By adjusting the motor parameters, it can be adapted to various materials and processes.

4. It has excellent sealing performance, preventing material leakage and dust flying, which is environmentally friendly and reduces waste.

5. It is easy to maintain, the screen mesh is convenient to replace, and the equipment structure is simple, reducing maintenance costs and downtime.
