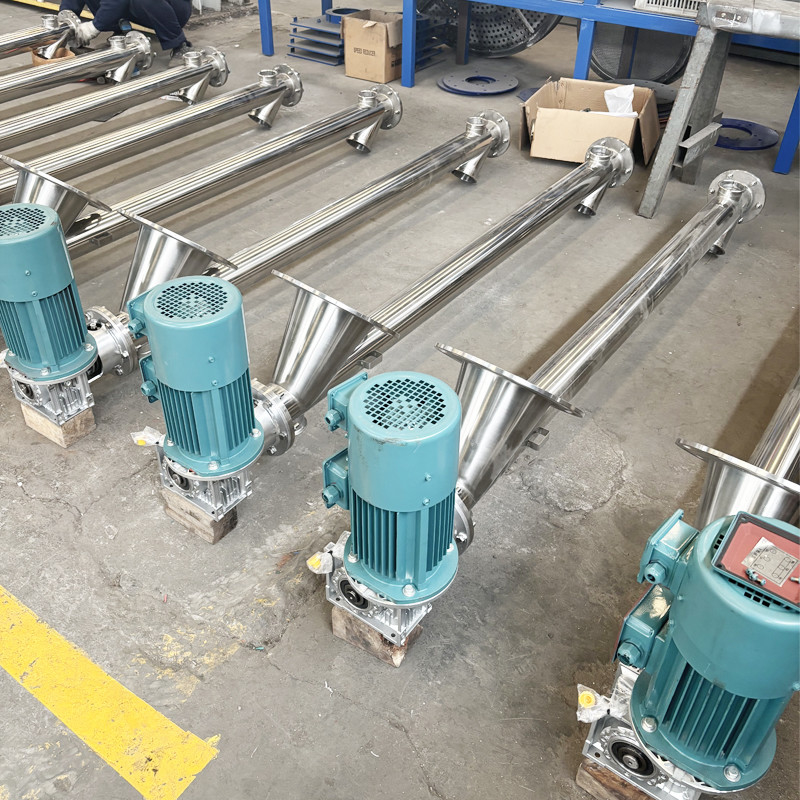

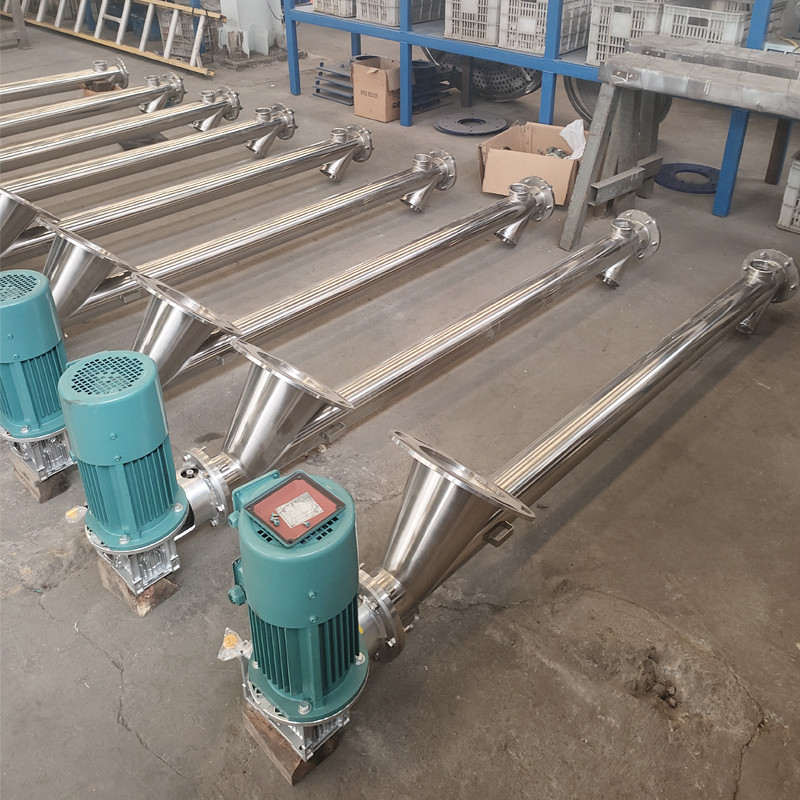

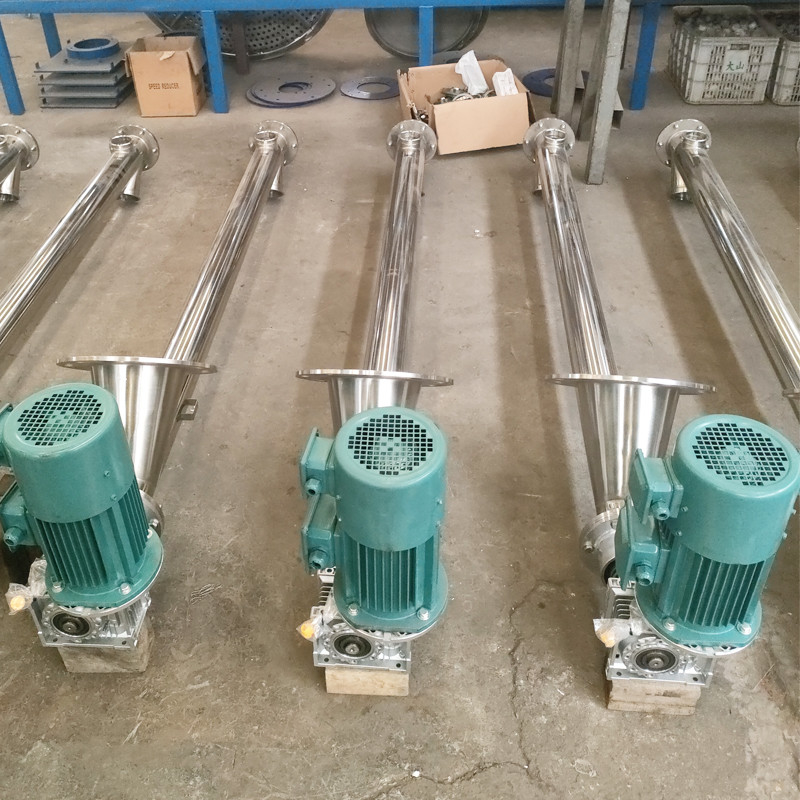

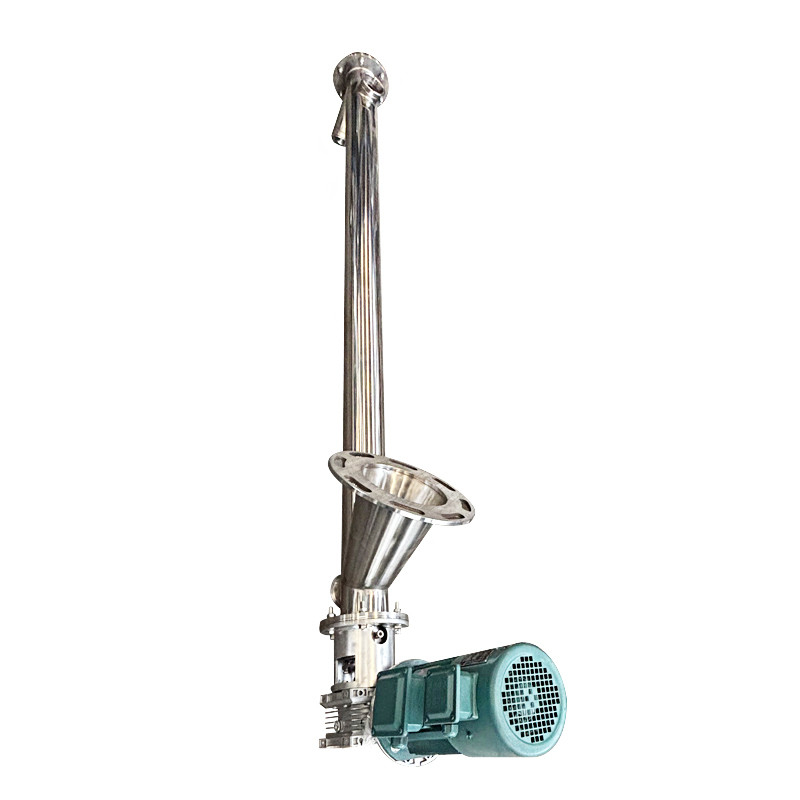

Screw Conveyor

Product description
Screw conveyor is an efficient material conveying equipment, which is widely used in industrial production. Its structure is exquisite, mainly composed of spiral blade, spiral shaft, feed groove and driving device. When working, the drive device drives the spiral shaft to rotate at a high speed, and the spiral blade tightly welded to the shaft rotates along with it, like an invisible hand, which continuously pushes the material in the tank to move along the axis, completing the transportation from the feed port to the discharge port. Its advantages are obvious, not only simple structure, compact, small footprint, and fully closed tank can avoid material leakage, adapt to powder, granule and other forms. Whether it is chemical raw materials, grain grains, or construction sand and gravel, screw conveyors can achieve stable and efficient transportation tasks.

Working principle
When the screw conveyor works, the motor output power drives the spiral shaft to rotate at high speed, and the spiral blade welded on the spiral shaft rotates accordingly. These spiral blades are distributed in a spiral pattern, just like spiraling up the winding mountain road. After the material enters the chute from the feed port, the rotating spiral blade exerts a thrust along the direction of the helix. The thrust is divided into circumferential force and axial force. Due to the friction between the material and the tank wall, the circumferential force is offset, and the axial force pushes the material to move along the tank axially. In this way, the material is continuously transported from the feed end to the discharge end under the continuous push of the blade, to achieve efficient and continuous material transmission, which is suitable for the transportation of all kinds of powder, granular and small block materials.

Product characteristics
1. Compact structure: screw conveyor structure is relatively simple, mainly composed of screw body, feed trough, drive device, etc., compact layout, small space, can be installed and used in a relatively narrow space, suitable for workplaces with limited space.

2. Good sealing: the use of closed tank and good sealing design, in the conveying process can effectively prevent material leakage and dust flying, can avoid material loss and environmental pollution, especially suitable for conveying toxic, harmful, flammable, explosive or easy to dust materials.

3. Flexible conveying direction: horizontal, inclined and even vertical material conveying can be achieved. By adjusting the installation Angle of the screw conveyor and the design of the screw blade, the conveying direction of the material can be flexibly changed according to different process flows and site layout.

4. High conveying efficiency: the continuous rotation of the spiral blade can stably and efficiently promote the material forward, and can transport a large number of materials per unit time, and can easily adjust the conveying speed by changing the motor speed and other ways to meet the needs of different production scales.

5. Strong adaptability to materials: can transport powder, granular, small block and other forms of materials, such as cement, sand, grain, coal and so on. For materials with a certain viscosity or humidity, it can also be better transported within a certain range, and has a wide range of application.

6. Stable and reliable operation: relatively few moving parts, mainly the operation of the screw shaft and the drive device, under normal working conditions, as long as the installation accuracy and regular maintenance of the equipment are guaranteed, it can operate stably, the incidence of failure is low, and the production interruption caused by equipment failure can be reduced and production efficiency can be improved.

7. Multi-point feeding and unloading: According to the requirements of the production process, multiple feeding and discharging ports can be set up at different positions of the tank to facilitate the distribution and collection of materials, and facilitate the connection and coordination with other production equipment to meet the needs of complex production processes.
