Screw Conveyor
Product description
A screw conveyor is a continuous conveying equipment that uses the rotation of spiral blades to push materials forward. It has a compact structure and good sealing performance, enabling the transportation of materials in horizontal, inclined or vertical directions. This equipment is widely used in industries such as grain, chemical, building materials, and metallurgy, and is suitable for the transmission of powder, granules, and small block-shaped loose materials. The screw conveyor features flexible installation, simple operation, and small space occupation. It can be customized with different lengths and specifications according to actual needs and is an important material handling tool in industrial production.
Working principle
When the equipment is started, the motor drives the spiral shaft and the spiral blades welded onto it to rotate together. After the material enters the conveyor trough through the feed port, under the combined effect of gravity, the friction between the material and the inner wall of the trough, and the internal cohesion of the material, the material is pushed by the blades and moves linearly along the axial direction of the trough. Eventually, under the continuous push of the blades, the material is discharged from the discharge port, thus achieving continuous and directional material transportation. The direction of transportation depends on the rotation direction of the spiral blades and the rotation direction of the shaft.
Product characteristics
Compact structure, low space occupation: Small cross-sectional area, can be flexibly installed in narrow spaces, especially suitable for factories with limited space.
Good sealing performance, environmentally friendly and safe: The materials are transported in a sealed material tank, which can effectively prevent dust from flying, reduce environmental pollution, minimize material loss and prevent odors from leaking out, and also protect the safety of operators.
Operation and maintenance are simple: The structure is simple, mainly consisting of the driving device, screw shaft, and material trough, which is easy to operate, clean and maintain.
Multiple loading and unloading: By opening multiple inlet and outlet ports on the material trough, flexible material distribution and multi-point transportation can be achieved.
Flexible conveying direction: It can be transported horizontally, at an incline, or vertically upwards. The layout is highly adaptable.
Product parameter
| Model |
Conveying tube diameter |
Power |
Hopper volume |
Angle(Degree) |
| ESC-133 |
133mm |
0.75-4KW |
200L or customized |
30-60 |
| ESC-159 |
159mm |
0.75-4KW |
| ESC-219 |
219mm |
1.5-4KW |
| ESC-273 |
273mm |
2.2-4KW |
| Please consult us for more models |
|
Production line diagram
1.The screw conveyor transport the mixed material from the ribbon mixer to a horizontal screw conveyor
2.The horizontal screw conveyor with 3 outlets, each outlet equip with a butterfly valve, when you need filling a bulk bag, just open that butterfly valve
3.The platform cam add weighing sensor if you need

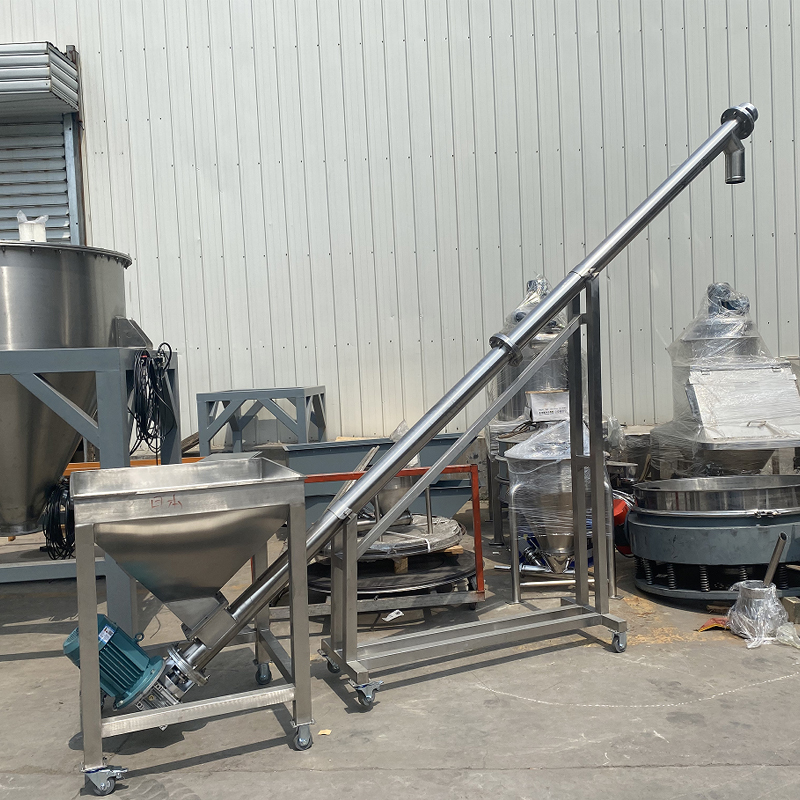

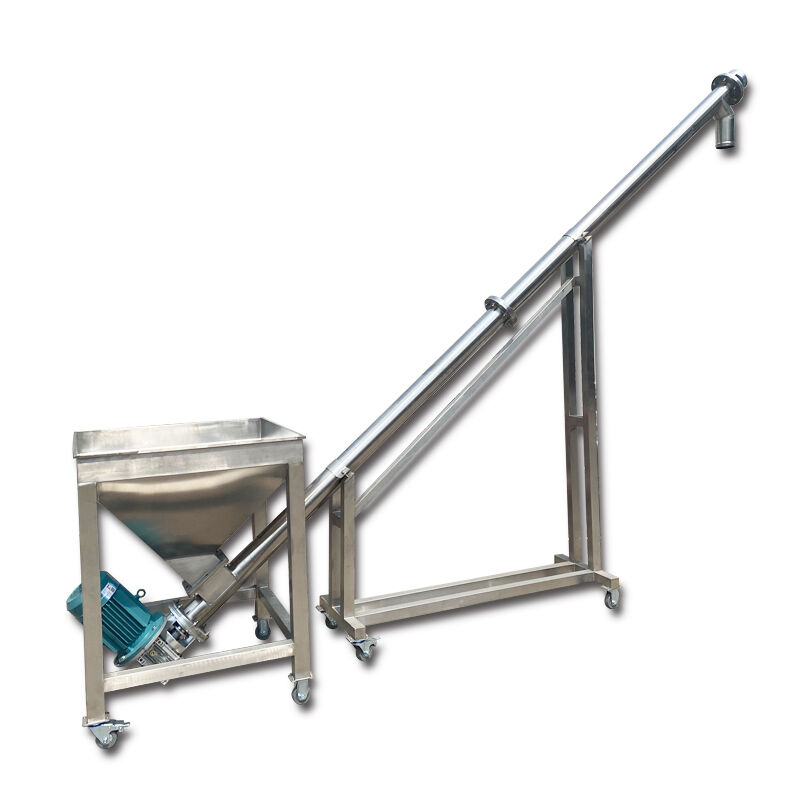

Product display
Product details

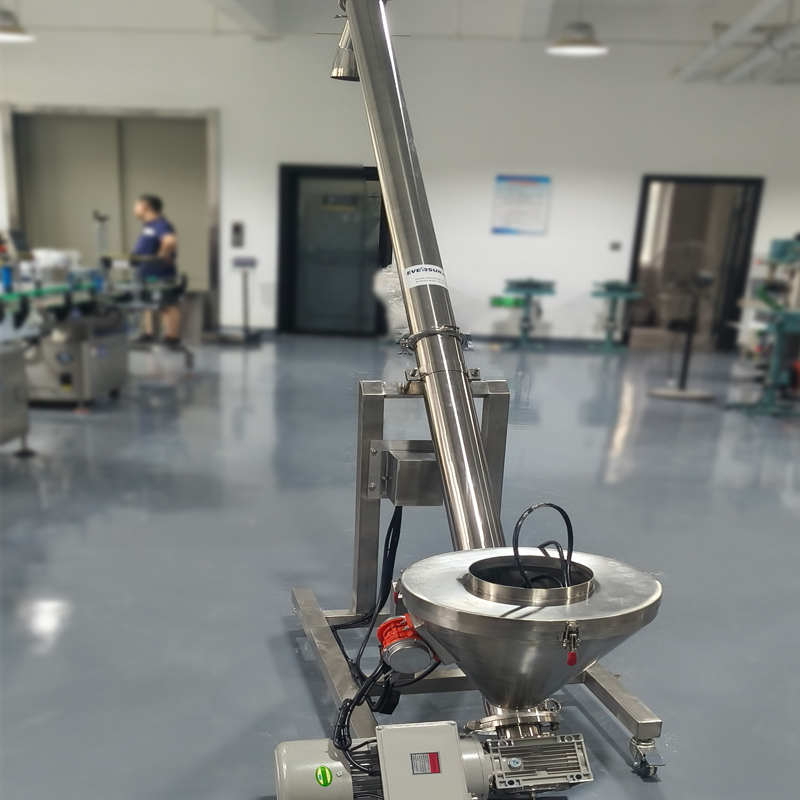

Product application
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries. We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
