Screw Conveyor

Product description
A screw conveyor is a continuous conveying machinery that uses the rotation of spiral blades to push materials forward. Its main structure consists of a driving device, a sealed pipe groove, a spiral shaft and blades. It can convey powdery, granular and small block materials in horizontal, inclined or vertical directions. The equipment has the advantages of a compact structure, good sealing performance, ease of multi-point loading and unloading, and flexible installation. It is widely used in material transmission systems in industries such as grain processing, chemical engineering, building materials, and environmental protection.

Working principle
A screw conveyor is a mechanical device that uses a rotating screw shaft and blades to continuously transport powder-like materials within a closed pipe channel. Its working principle is as follows: When the motor drives the screw blades to rotate, the materials are smoothly pushed forward along the axial direction by the blades. This equipment has a compact structure and good sealing performance, and supports various conveying directions such as horizontal, inclined, and vertical. It is widely used in material transportation systems in industries such as grain, chemical, and building materials.

Product characteristics

1.Compact structure, flexible layout: The equipment has a small cross-sectional area, can be installed in narrow spaces, and can achieve horizontal, inclined or vertical transportation in multiple directions.
2. Strong sealing performance, environmentally friendly: The materials are transported within a sealed pipe slot, effectively preventing dust from flying out and avoiding material leakage, ensuring a clean working environment and operational safety.
3. Multi-functional and flexible configuration: Multiple feed and discharge ports can be set up to conveniently achieve centralized, distributed, or multi-point material transportation.
4. Simple operation and convenient maintenance: The structure is relatively simple, with few core components, resulting in a smaller workload for daily operations, cleaning and maintenance.

Product parameter













 Production line diagram

1.The screw conveyor transport the mixed material from the ribbon mixer to a horizontal screw conveyor
2.The horizontal screw conveyor with 3 outlets, each outlet equip with a butterfly valve, when you need filling a bulk bag, just open that butterfly valve
3.The platform cam add weighing sensor if you need

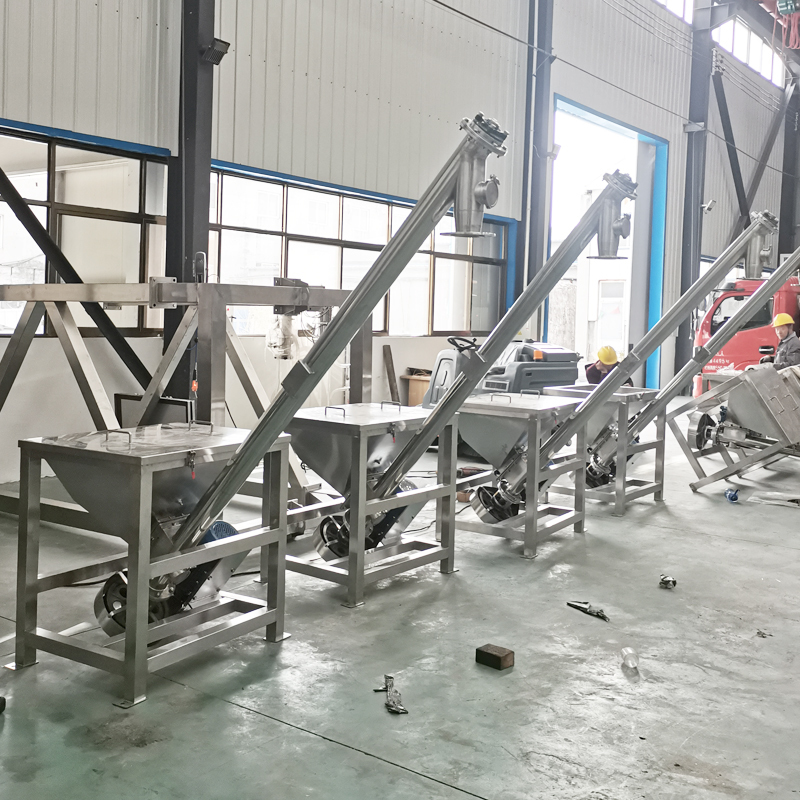

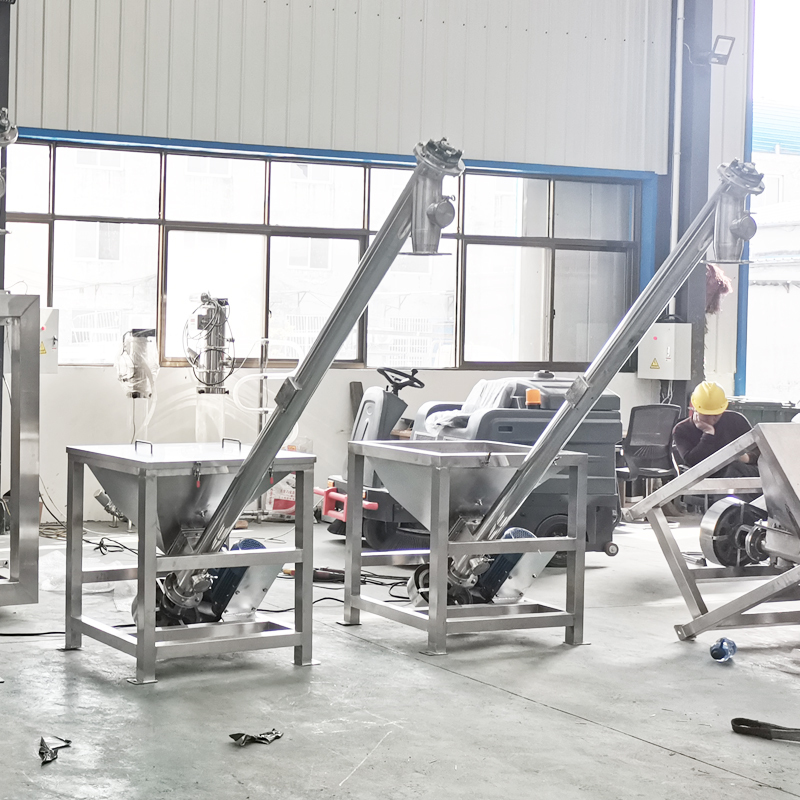

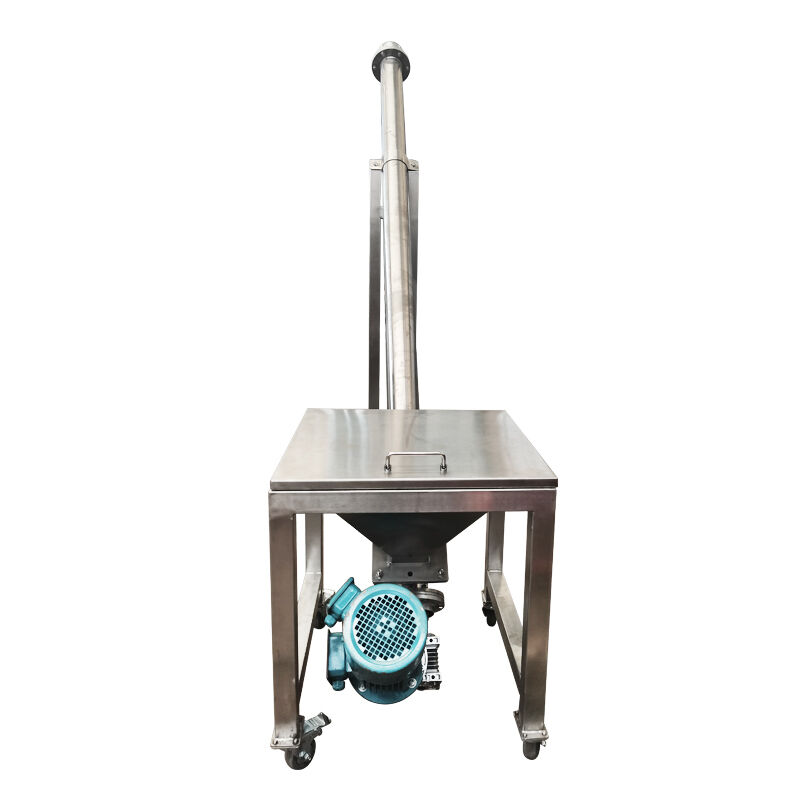

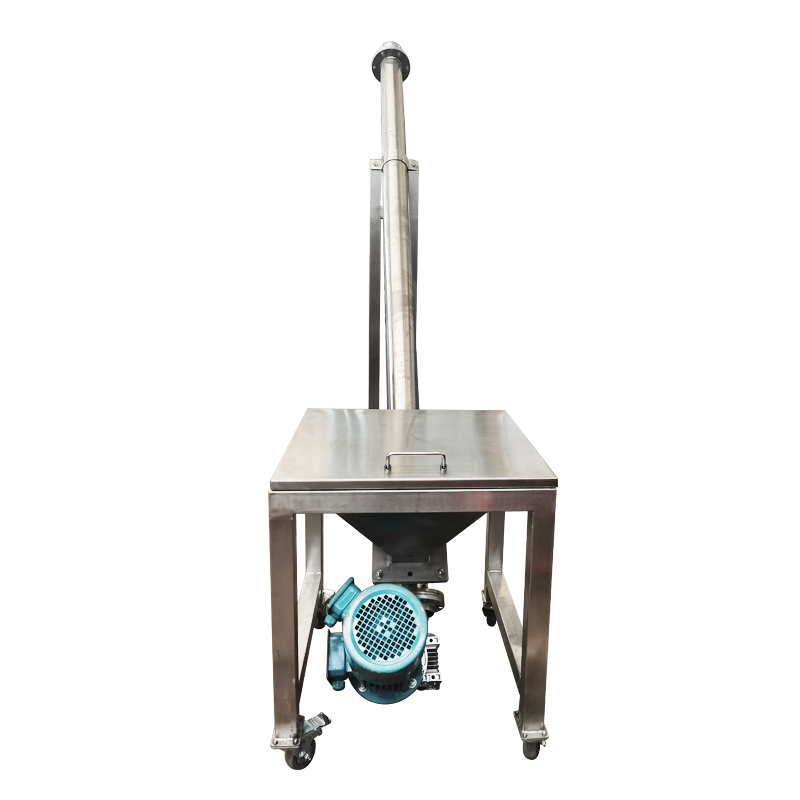

Product display
