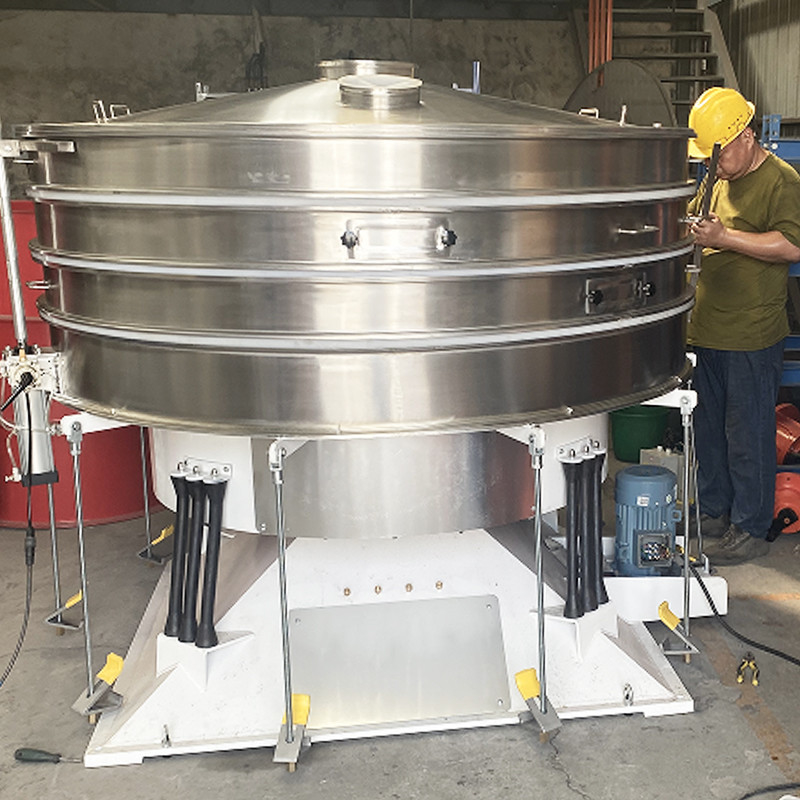

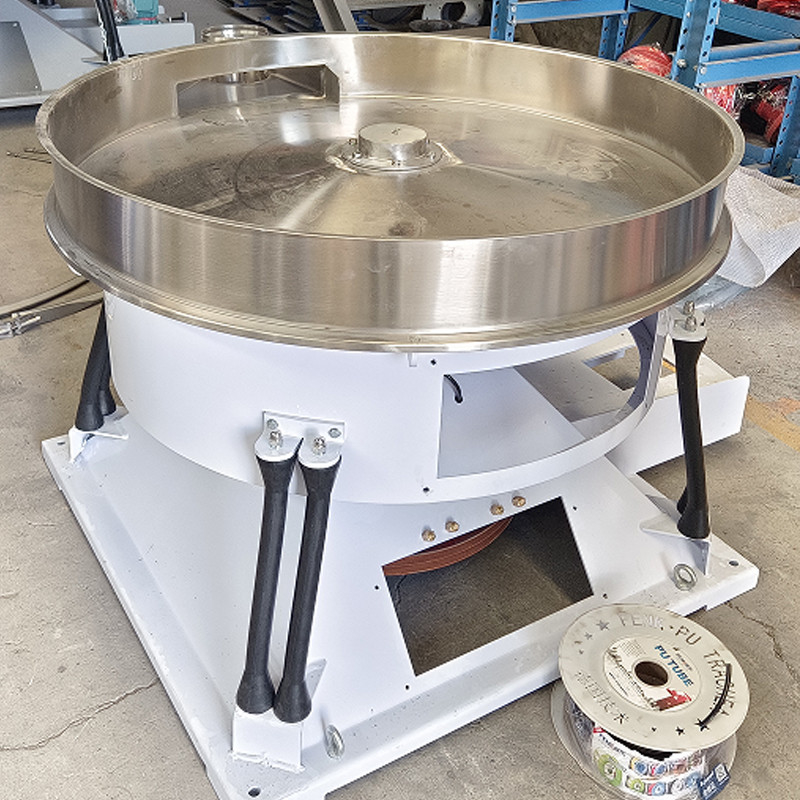

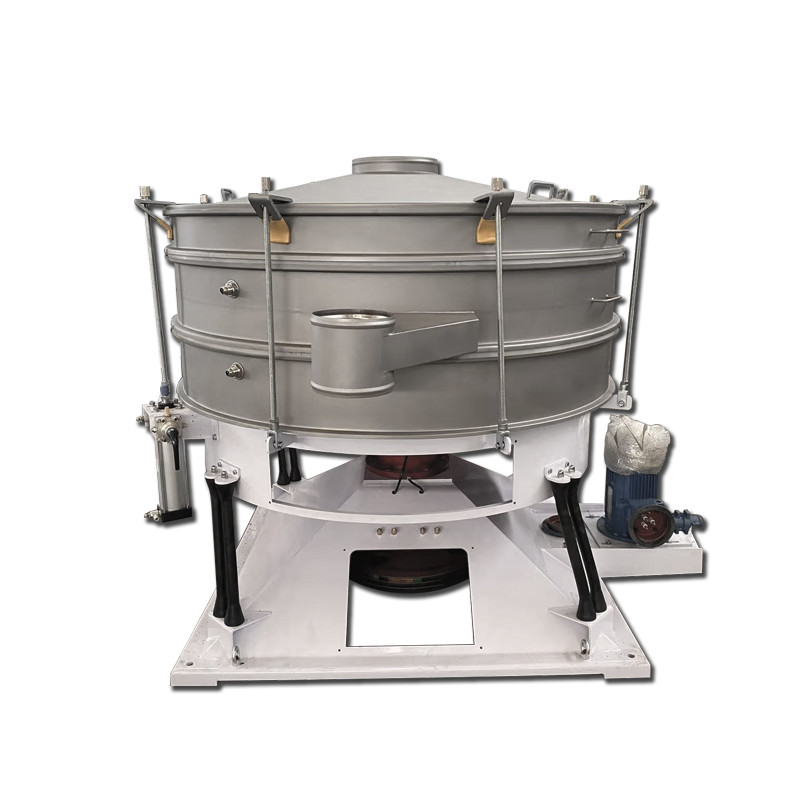

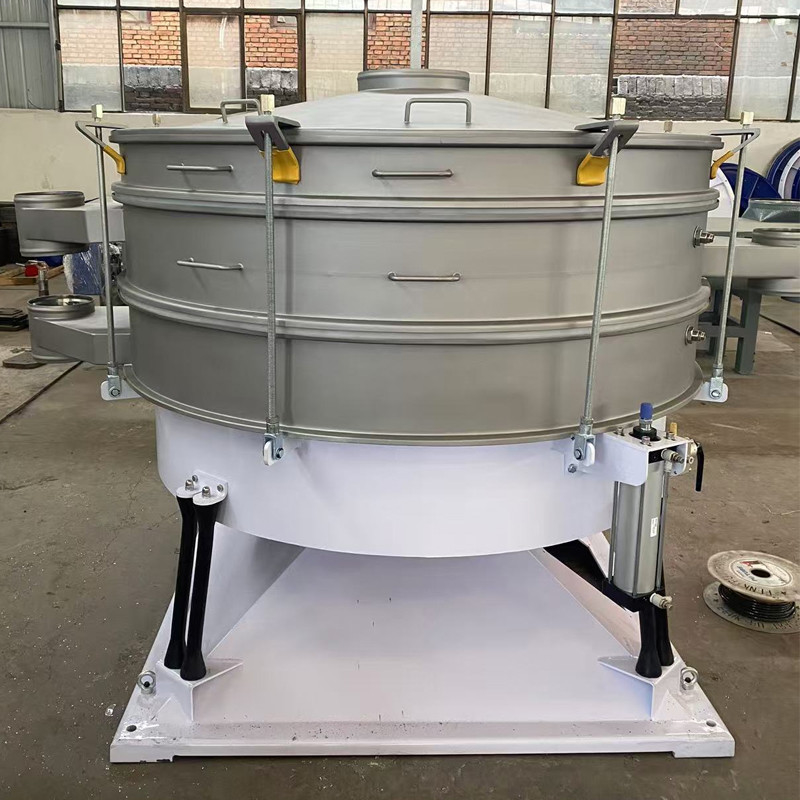

The circular swing screen is driven by an ordinary motor to make the basic rotary motion,

which is similar to manual screening, so that the material a three-dimensional rolling motion

on the screen, and is evenly distributed from the center to the edge of the screen, thus

spreading axially in a spiral motion. radial angle and tangential angle on the swing body can

be adjusted to change the trajectory of the material on the screen.





The instantaneous motion of the swing screen is the synthesis of radial displacement and

circular motion about this displacement as the axis (helical motion). The three-dimensional

motion generated by the eccentricity-adjustable vibrator produces the same approximate

handwork motion of the material, thus achieving the purpose of screening. Combined with

screening, more ideal screening results can be obtained. It is suitable for spherical, cylindrical,

flake-like, and even irregularly shaped materials that are prone to c and require precise

screening.




1. The design is ingenious, which is conducive to extending the equipment's service life and

reducing operation and maintenance costs.

2. It operates at low frequency and small load, so the power system has a small impact on

the equipment and materials.

3. The equipment has a small volume, is lightweight, easy to install, convenient to maintain,

and consumes less power, with minimal noise pollution.

4. It has a large relative processing capacity high screening efficiency, and the screening

accuracy of the shaking screen is generally over 95%.

5. It has a fully enclosed structure with good sealing effect, there is no material dust pollution.

6. The discharge port can be adjusted at any position within a 360° circle, making it easy to

arrange process.

7. The screen is easy to replace and can meet the general material's dry and wet grading

requirements.

8. The cleaning device can be conveniently added the screen surface, effectively solving

the problem of screen surface blockage.


It is suitable for dry and wet screening, sieving and filtering recovery in industries related to

food, mining, casting, abrasives, building materials cement, chemicals, fertilizer, light industry,

papermaking, grain industry, salt industry, and grain, etc.
