Stainless steel screw belt feed powder pigment particle mixer

Product introduction

Ribbon mixer is an efficient mixing equipment, mainly used in chemical, pharmaceutical, food, pesticides, plastics, pigments, cosmetics and feed additives and other industries of powder and granular material mixing. It is characterized by the ability to effectively mix viscous or cohesive powder particles, as well as liquid and paste materials added to the powder particles. Because the ribbon mixer is difficult to clean viscous materials in the mixing process, it is more suitable for occasions with large output and the production needs of the varieties are not often replaced

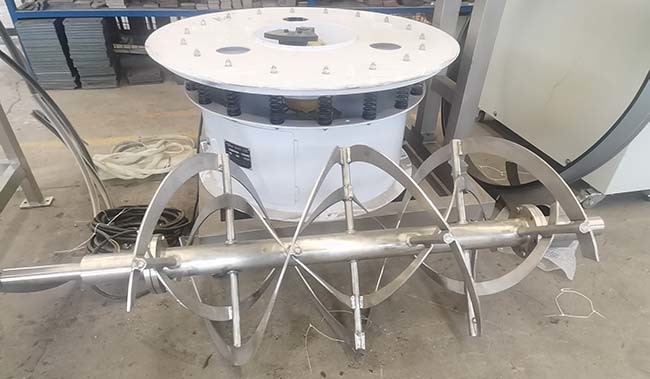

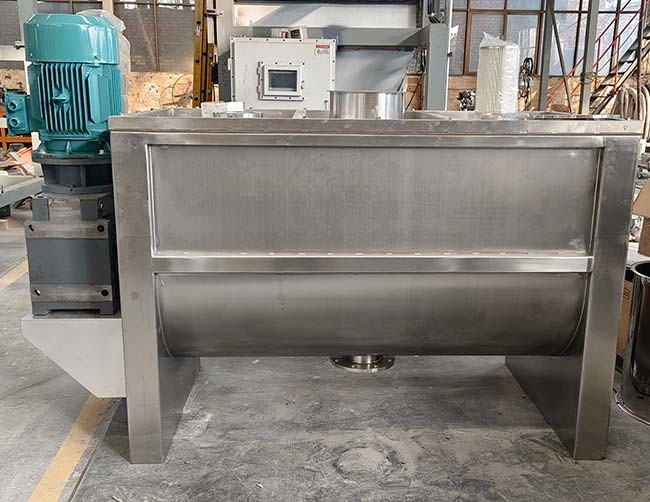

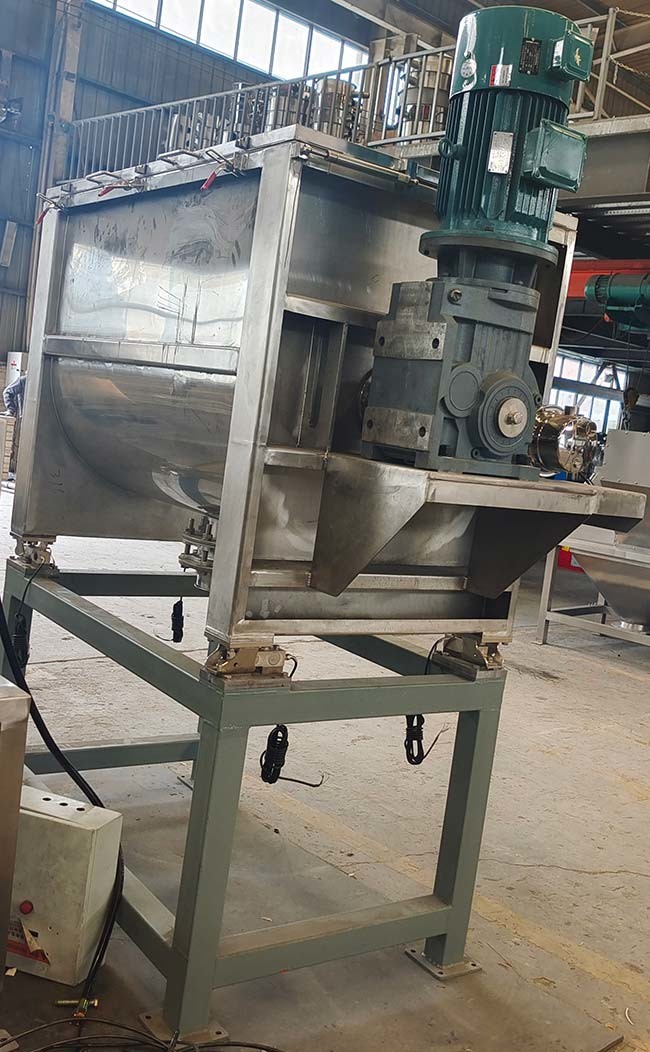

The screw belt mixer is usually composed of a U-shaped container, a screw belt mixing blade and a transmission component. The U-shaped long cylinder structure design ensures the small resistance movement of the mixed material (powder, semi-fluid) in the cylinder body. The spiral blade is generally made of double or three layers, the outer spiral will collect the material from both sides to the middle, the inner spiral will transport the material from the middle to the two sides, such a design makes the material in the flow to form more vortex, thus speeding up the mixing speed and improving the mixing uniformity

Technical specification

applied range

The application range of the ribbon mixer is very wide, it is not only suitable for solid-solid (that is, powder and powder) and solid-slurry (that is, powder and glue) mixing, but also especially suitable for the mixing of viscous materials. It is widely used in chemical, food, compound fertilizer, health products, dyes, pigments, rubber, building materials, milk powder, feed, additives, aquaculture bioengineering, fine chemicals, ceramics, refractories, rare earth, plastic glass and new materials, nuclear materials and other industries of material mixing

Application

Ribbon mixers can be widely used in mixing various types of powdered, granular and bulk materials, mainly including the following categories:
1. Chemical raw materials
Various powder chemicals such as plastic particles, pigment powder, activated carbon and other adsorbents
2. Food raw materials
Such as flour, starch and other grain powders, seasonings, nutritional supplements, medicinal plant extracts
3. Building materials
Such as cement, mortar, dry mortar, ceramic powder, insulation materials
4. Mining and metallurgical raw materials
Such as ore powder, metal powder, ceramic raw materials, glass materials.

Service and ordering

                                                Our service

1. Consulting service
Provide professional equipment selection suggestions based on the specific production needs of customers. Provide detailed introduction and description of the functions, parameters, applicable materials, etc. of the equipment.
2. Repair and maintenance
Establish a complete after-sales service network and provide fast-response repair support.
3. Technical support
Provide customers with technical guidance such as equipment optimization and process improvement.
4. Spare parts supply
Establish spare parts inventory to ensure that customers can get the required accessories at any time.

How to choose ribbon mixer

The following key factors need to be considered when selecting a ribbon mixer:

1. Material properties
Physical and chemical properties of materials such as particle size, shape, density, fluidity, viscosity, cohesion, chemical corrosion, heat resistance, etc.
2. Production requirements
Required mixing capacity and production capacity, mixing time and mixing quality requirements, whether a special mixing environment is required (such as vacuum, inert atmosphere, etc.)
3. Mechanical structure
Parameters such as the material, length, inclination angle of the screw ribbon, the material and structural form of the shell (such as single screw, twin screw, etc.), supporting auxiliary equipment such as feeding, unloading, control system, etc.
4. Safety and environmental protection
Whether explosion-proof, dust-proof and other safety designs are required, whether dust emissions meet environmental protection requirements, and whether special cleaning and maintenance measures are required.
