Ribbon Blender

Product description

The spiral mixer is an efficient equipment for mixing powders with powders or powders with liquids. Its core structure consists of two layers of spiral blades inside the container. It is suitable for processing large volumes, high viscosity or materials with significant density differences. It is widely used in industries such as chemical engineering, food, medicine, and building materials, featuring high mixing efficiency, no dead corners, thorough discharge, and convenient operation. Some models can also be equipped with heating, cooling or liquid spraying devices to meet diverse process requirements.

Working principle

The core working components of this device are the double-layer helical blades (the inner helical blade and the outer helical blade) inside the container. These two blades rotate in opposite directions and usually have a speed difference. When the device is running, the outer helical blade will push the materials near the container wall from both ends towards the center of the mixing chamber, while the inner helical blade will transport the materials in the central area from the middle to both ends. This reverse circular motion causes intense convection, shearing, and tumbling of the materials within the mixing chamber, which not only breaks the agglomeration state of the materials but also enables materials of different densities and particle sizes to quickly intermingle and fuse, ultimately achieving uniform mixing of the materials throughout the entire chamber.

Product features

- High mixing efficiency, achieving thorough material mixing within a short period of time;
- Excellent uniformity, reducing dead corners, suitable for materials with significant differences in density and particle size;
- Wide application range, capable of handling various forms of materials such as powders, liquids, and pastes;
- Complete discharge, with little residue, reducing waste and cleaning difficulty;
- Simple operation and maintenance, can be flexibly combined with auxiliary devices such as heating and liquid spraying.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Product details

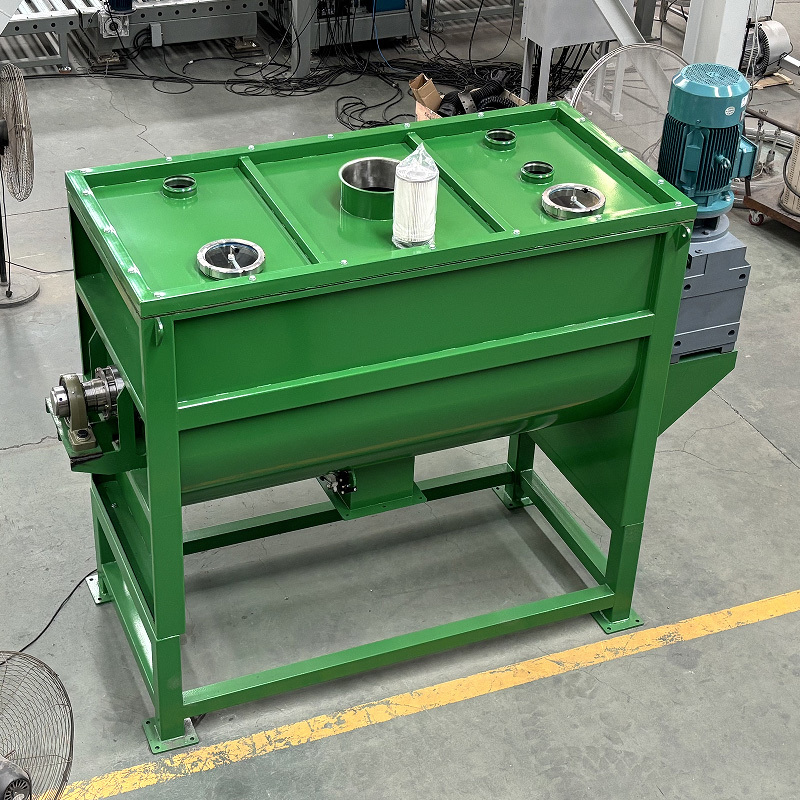

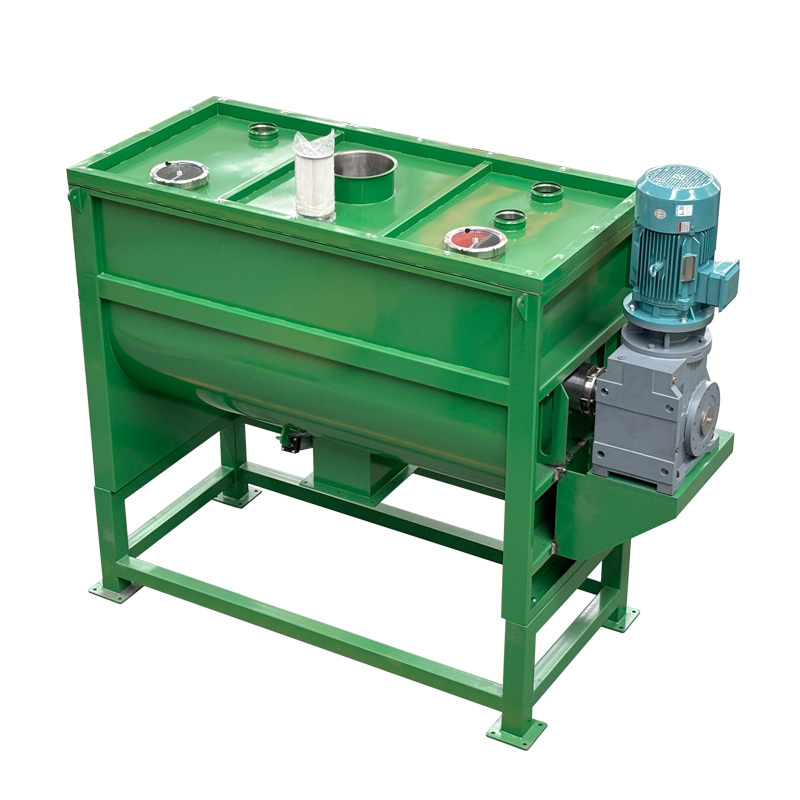

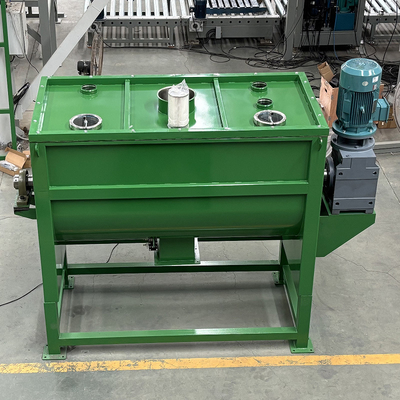

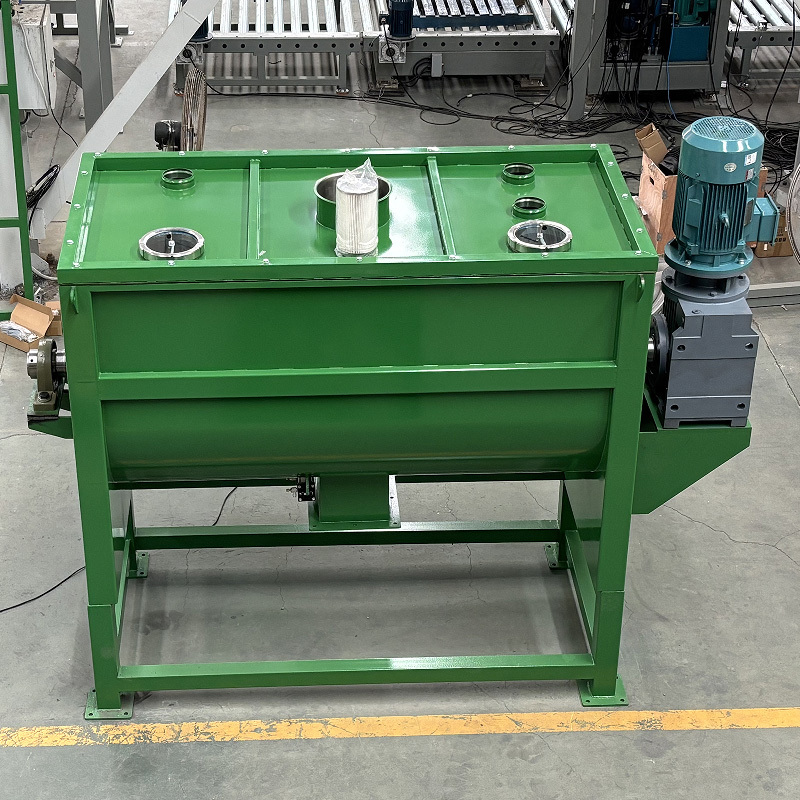

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
