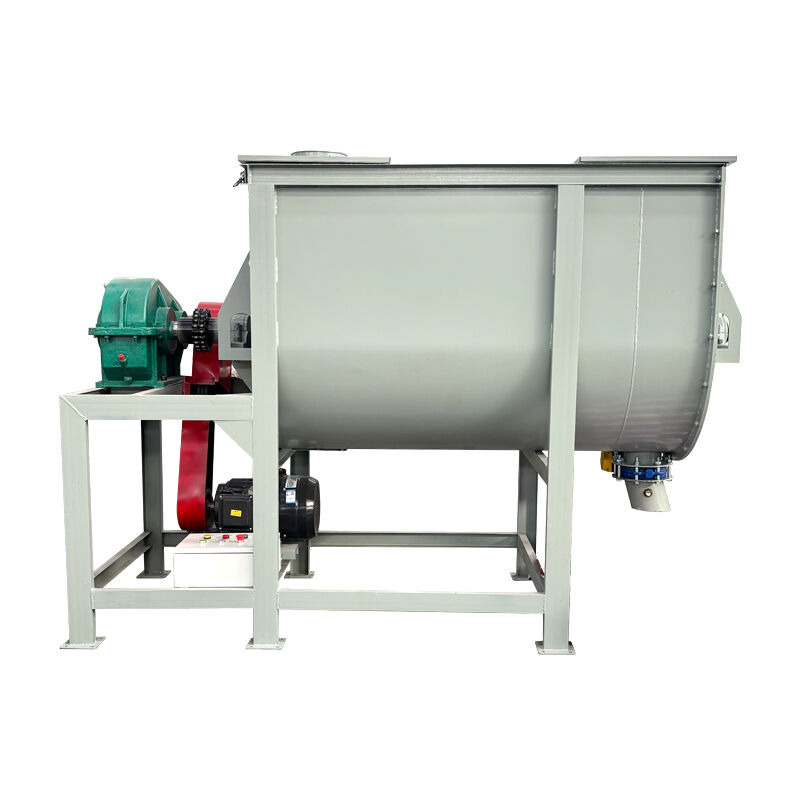

Ribbon Blender

Product description

The spiral mixer is an efficient and versatile powder and particle mixing equipment. Its core feature lies in the unique spiral-shaped stirring paddle inside. This structural design endows it with strong mixing capabilities, especially suitable for handling materials with high proportions, high viscosity, or significant density differences. The equipment operates smoothly, the mixing process is gentle, and it can effectively ensure the integrity of the materials, avoiding damage to the structure of sensitive materials. With its excellent uniformity of mixing and wide application adaptability, the spiral mixer has become one of the indispensable key equipment in industries such as chemical, food, pharmaceutical, and plastic.

Working principle

The spiral mixer is an efficient and versatile powder and particle mixing equipment. Its outstanding mixing capability stems from its unique mechanical design. The unique spiral-shaped agitator inside the equipment generates powerful convection and shear forces as it rotates: the outer spiral pushes the material from both ends towards the center, while the inner spiral moves the material from the center to both ends, creating a vigorous up-and-down circulation flow, achieving rapid macroscopic mixing; at the same time, due to the speed difference, the material is fully sheared and diffused between the spirals, thus completing fine microscopic homogenization. This gentle and efficient working principle makes it particularly suitable for handling high proportions, high viscosity, or materials with significant density differences, and effectively ensures the integrity of the materials. Therefore, the spiral mixer has become an indispensable key equipment in industries such as chemical engineering, food, and pharmaceuticals.

Product features

1.Uniform and efficient mixing
Through strong convection and shear effects, the material is circulated in all directions, achieving high uniformity of mixing with no dead corners.
2. Wide range of applications
It can handle various materials ranging from powders to thick pastes, and is particularly adept at high viscosity and high proportion formulations.
3. The mixing process is gentle
It mainly involves gentle shearing and pushing, which can effectively maintain the original physical state of fragile or sensitive materials.
4. Large loading capacity
The equipment has a high utilization rate of its volume, and can achieve a large output per batch, meeting the requirements of large-scale production.
5. Stable operation and easy maintenance
The structure is sturdy, the operation is smooth, cleaning and maintenance are convenient, and it meets the requirements of industrial production.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

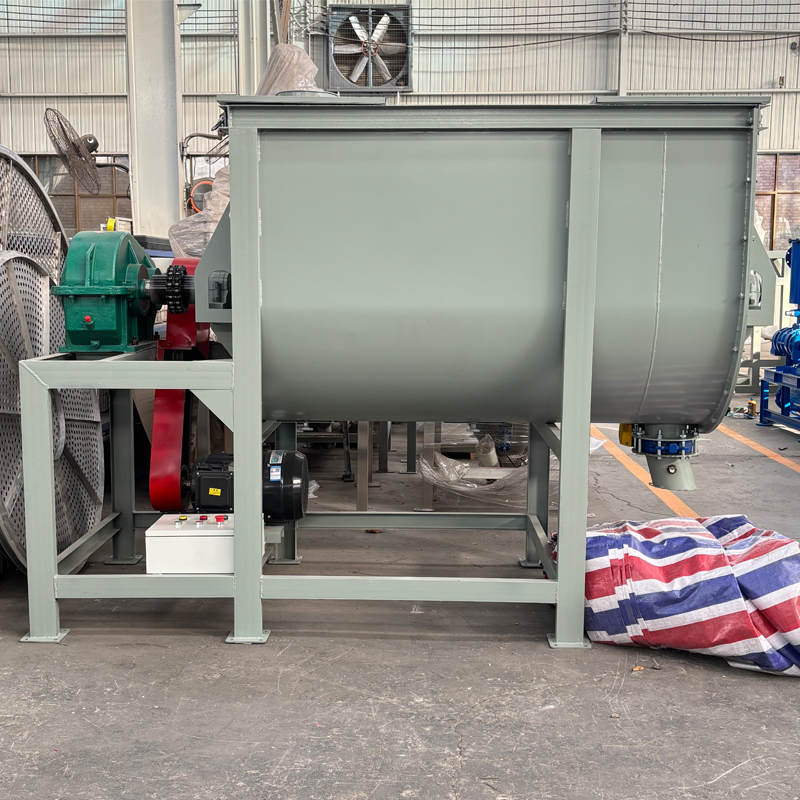

Product details

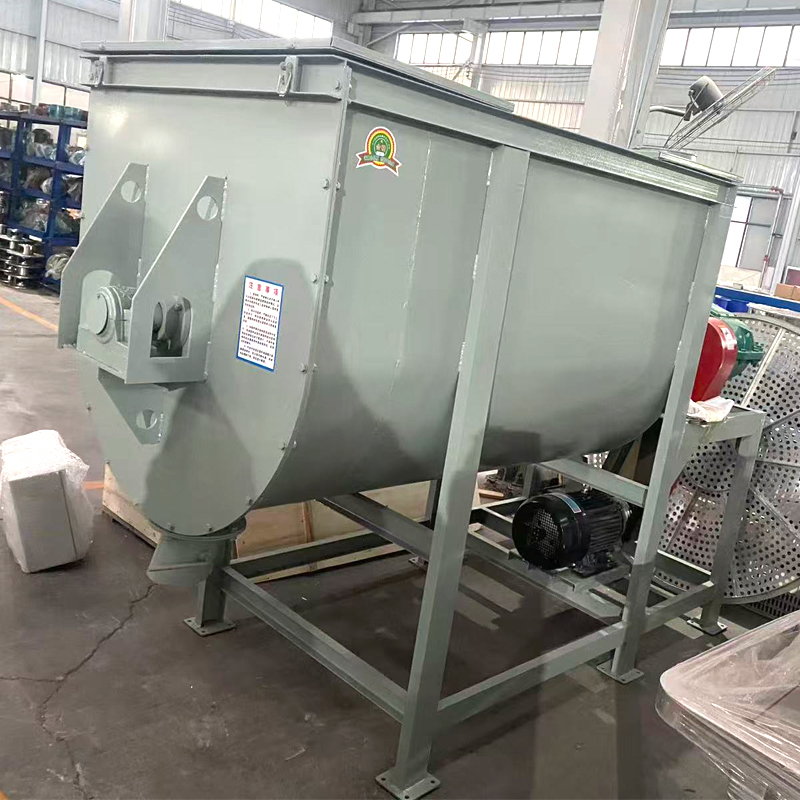

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
