| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | ESC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Screw Conveyor | Material: | Stainless Steel304/316L,Carbon Steel |
|---|---|---|---|
| Conveying Distance: | 5-25（m） | Type: | Shaftless And Shafted Types |
| Power: | 3-15（KW） | Conveying Capacity: | 5-45（t/h） |
| Weight: | Customized | Application: | Mining Chemical Industry Coal Grain |
| High Light: | Double-Shaft Screw Conveyor,Automatic Spiral Conveyor,U-Shaped Dragon Conveyor |
||
Product introduction
Double-Shaft Screw Machine Spiral Conveyor Automatic U-Shaped Dragon Conveyor
U-shaped screw conveyor is a common type of screw conveyor. Its appearance is U-shaped. It consists of a spiral screw and a U-shaped groove. It is used to transport various powdery, granular and flake materials.Specially designed and manufactured for the plastic production and powder production and processing industries. All parts of this machine that are in contact with materials are made of stainless steel. It can be used with various specifications of extruders, high-speed mixers, and plastic mixers.
This series of models can be fed by a single machine. The height can reach 2-8 meters, and multiple machines can be used in series. The feeding speed is 1-3 tons per hour; vertical transportation, horizontal transportation, and diagonal transportation can be customized according to the material and site. It has the advantages of stable performance, convenient maintenance, safety and reliability, and saving manpower.
Product parameter
| Model | Conveying tube diameter | Power | Hopper volume | Angle(Degree) |
| ESC-133 | 133mm | 0.75-4KW | 200L or customized | 30-60 |
| ESC-159 | 159mm | 0.75-4KW | ||
| ESC-219 | 219mm | 1.5-4KW | ||
| ESC-273 | 273mm | 2.2-4KW | ||
| Please consult us for more models | ||||
Feature
The features of U-shaped screw conveyor
1. Simple structure: The U-shaped screw conveyor is composed of a spiral screw and a U-shaped groove. It has a simple and compact structure, and is relatively easy to install and maintain.
2. Large capacity: The U-shaped screw conveyor has a large conveying capacity and can meet the conveying needs of high-flow materials.
3. Strong adaptability: U-shaped screw conveyor is suitable for a variety of materials, such as granular, powdery, flake solid materials, and liquid materials.
4. Long transportation distance: U-shaped screw conveyor can cover long horizontal and inclined transportation distances, and is suitable for different processes and site requirements.
5. Adjustability: The rotation speed and feed speed of the spiral screw are adjustable to meet different material and process requirements.
Application
The application of U-shaped screw conveyor
1. Building materials industry: used to transport cement, sand, limestone, gypsum and other powdery and granular materials.
2. Mining and metallurgical industry: used to transport granular materials such as ore, coal, slag and so on.
3. Grain processing industry: used to transport grain, feed, granular grain by-products, etc.
4. Chemical and pharmaceutical industry: used to transport chemical raw materials, granular or powdery medicines, plastic particles, etc.
5. Environmental protection industry: used to transport waste, sludge, solid waste, etc.

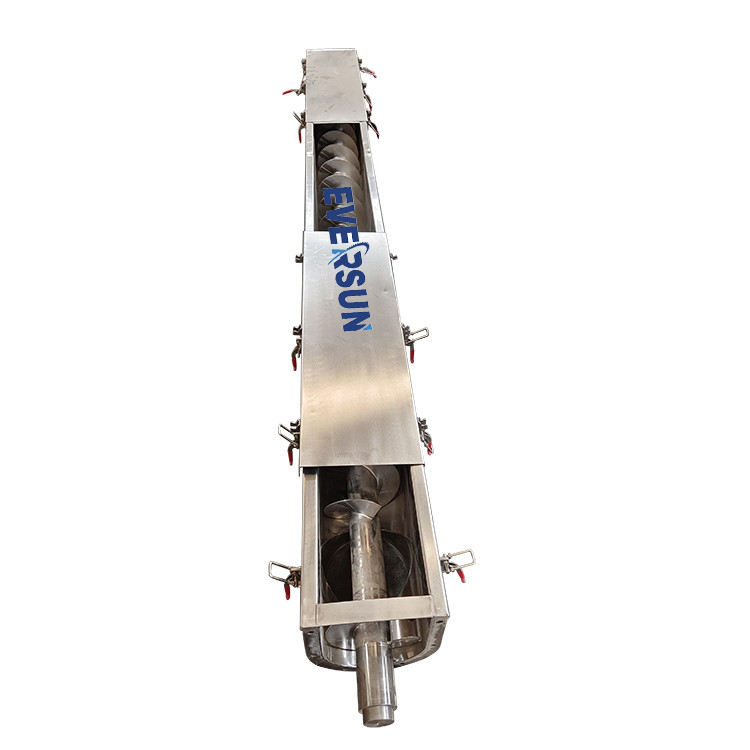

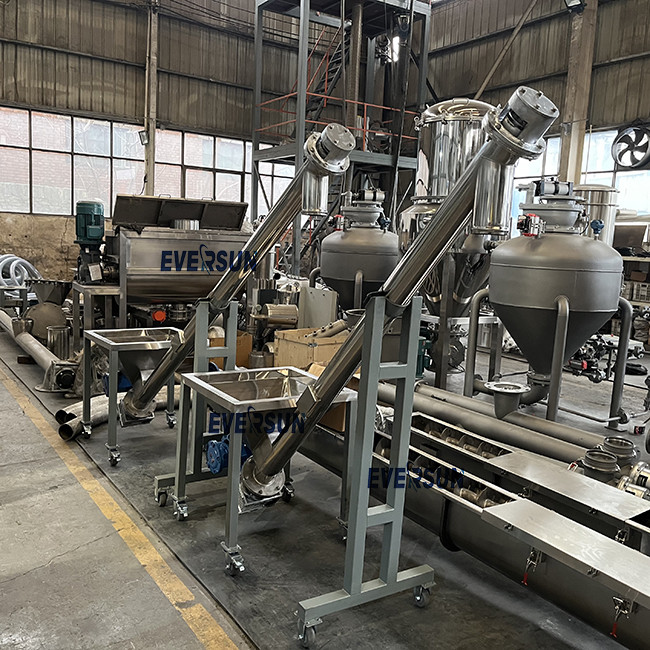

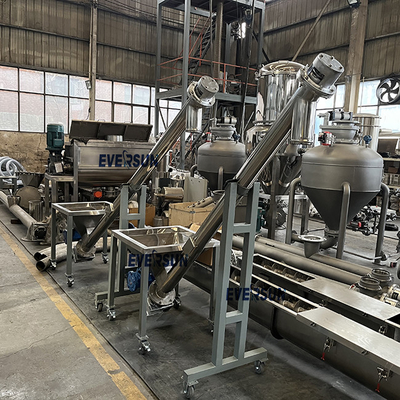

Product pictures
Packaging and shipping
Package:
Use wooden crates to protect the U-shaped screw conveyor from possible damage such as vibration, impact or tilt. And indicate relevant information on the packaging, such as the model, specifications, weight and quantity of the U-shaped screw conveyor.
Transportation:
Depending on factors such as the size, weight, and destination of the U-shaped screw conveyor, select the appropriate transportation method, such as sea transportation, air transportation, or land transportation.
How to choose the right machine
Determine your specific needs and application scenarios, including material type, size, flow requirements, conveying distance and height, etc. Then select the appropriate materials for the spiral screw and tank body. Common materials include stainless steel, carbon steel and polymer. You can contact us and our engineers will help you choose a suitable machine.
