| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | CZT |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Vibrating Screw Elevator | Keywords: | Vertical Spiral Feeder |
|---|---|---|---|
| Function: | Lift Conveying,Cooling, Drying | Colour: | Sandblasting Customization |
| Throughput: | 15m³ | Conveying Capacity: | 50L |
| Powder: | 1.5（KW） | Dimensions: | 4m Or Customized |
| High Light: | Cooling Vertical Vibration Elevator,Seeds Vertical Vibration Elevator,Food Sesame Cooling Feeder |
||
Product introduction

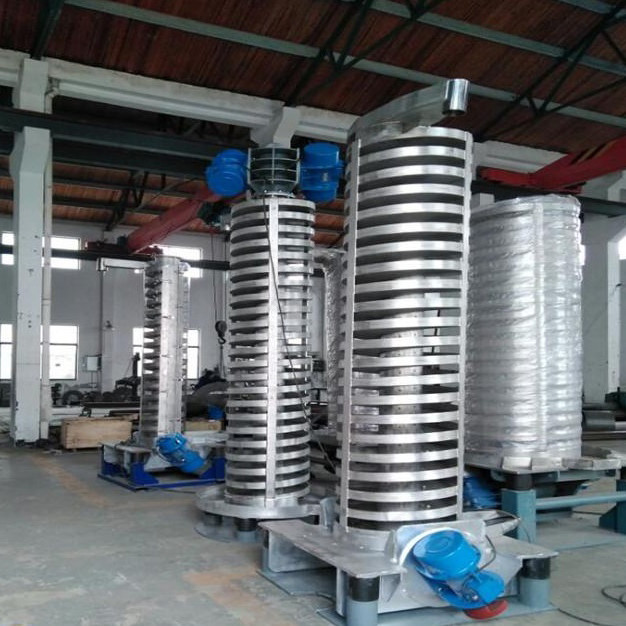

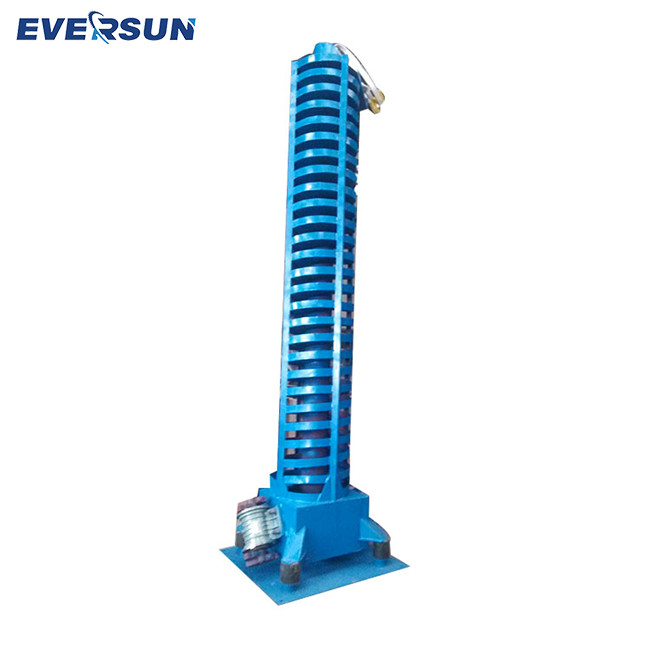

Cooling Feeder Food Sesame Melon Seeds Tea Cooling Vertical Vibration Elevator
The CZT Vertical Vibration Elevator uses a vibration motor as the vibration source, and uses the combined amplitude of the two vibration motors to transport materials upward along the spiral conveyor trough. CZT vertical conveyor is mainly used to lift granular, powdery and block materials. This conveyor has a simple structure and is easy to maintain. The quantitative delivery of materials is continuously adjustable. It can be used for vertical transportation of small particle materials in various industries. In addition to lifting materials from bottom to top, it can also complete the drying and drying of materials. Cooling effect.
There are two types of separate and closed structures, and according to the requirements of different processes, we can design a screening elevator for material particle classification and an elevator for flammable and explosive materials. CZT vibration elevators (conveyors) are widely used in chemical, rubber, plastics, medicine, light industry, food, metallurgy, building materials, mining, food and other industries.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Conveying capacity(t/h) | Conveying height(m) | Inlet air temperature | Drying time | Moisture before drying | Moisture after drying |
| CZT400 | 0.12 | 2500 | 180~380 | 7min | 18% | 5% |
| CZT500 | 0.15 | 3000 | 180~380 | 8min | 18% | 5% |
| CZT600 | 0.35 | 3500 | 180~380 | 9min | 18% | 5% |
| CZT800 | 0.6 | 4000 | 180~380 | 12min | 18% | 5% |
| CZT1000 | 1 | 5000 | 180~380 | 15min | 18% | 5% |
| CZT1200 | 1.5 | 5000 | 180~380 | 18min | 18% | 5% |
| CZT1500 | 2 | 5000 | 180~380 | 23min | 18% | 5% |
| CZT1800 | 3 | 6000 | 180~380 | 28min | 18% | 5% |
| Customized model is available | ||||||
Feature
The feature of Vertical Vibration Elevator
Main features of CZT series vertical elevator:
1. The product occupies a small area and is convenient for process layout.
2. Materials can be transported upwards or downwards.
3. Low noise, simple structure, convenient installation and maintenance.
4. The structure is simple and reasonable, the energy consumption is small, the electric energy is saved, and the material trough wear is small.
Application
The application of Vertical Vibration Elevator
Vertical Vibration Elevators can be used to convey and lift a variety of materials, including but not limited to the following common materials:
1. Granular materials: The vertical spiral elevator is suitable for conveying and lifting various granular materials, such as grain (grain, feed), ore, stone, sand, coal, fertilizer, plastic particles, etc.
2. Powdered materials: The Vertical Vibration Elevator can be used to transport and lift a variety of powdered materials, such as flour, sugar powder, chemical raw material powder, pharmaceutical powder, cement, etc.
3. Crystalline materials: Certain industrial fields require the transportation and lifting of crystalline materials, such as pigments, drugs, salts, etc. in chemical production.
4. Broken materials: The Vertical Vibration Elevator can be used to transport and lift broken materials, such as ore gravel, construction waste, etc.
Packing and shipping
1. Packaging:
Before shipping, the Vertical Vibration Elevator is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Vertical Vibration Elevators can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
FAQ
Q1: What is a Vertical Vibration Elevator ?
A: The vertical Vibration Elevator is a device used to transport and lift materials vertically. It consists of a vertical pipe or tank and an internally installed spiral agitator. The rotating spiral agitator transports materials from the bottom or inlet to the top or outlet.
Q2: Which industries are Vertical Vibration Elevators suitable for?
A: Vertical vibration elevators are suitable for many industries, including grain processing, mining, chemical industry, pharmaceuticals, building materials, food processing and metallurgy.
Q3: What are the advantages of Vertical Vibration Elevators?
A: The vertical vibration elevator has the advantages of simple structure, small size, small footprint, and stable operation. It can lift materials efficiently, has large conveying capacity and small energy consumption.
Q4: How to determine the conveying capacity of the Vertical Vibration Elevator?
A: The conveying capacity of the vertical vibration elevator depends on many factors, including the size of the spiral mixer, rotation speed, material characteristics (such as particle size, density, etc.) and conveying height.
