| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | CZT |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Vibrating Screw Elevator | Keywords: | Vertical Spiral Feeder |
|---|---|---|---|
| Main Function: | Lift Conveying | Additional Function: | Cooling, Drying |
| Capacity: | 3t/h | Powder: | 1.5（KW） |
| Dimensions: | 4m | Weight: | 500（kg） |
| High Light: | Vertical Spiral Dry Elevator Conveyor,Stainless Steel 304 Spiral Elevator Conveyor,Cocoa Powder Cooling Elevator Conveyor |
||
Product introduction

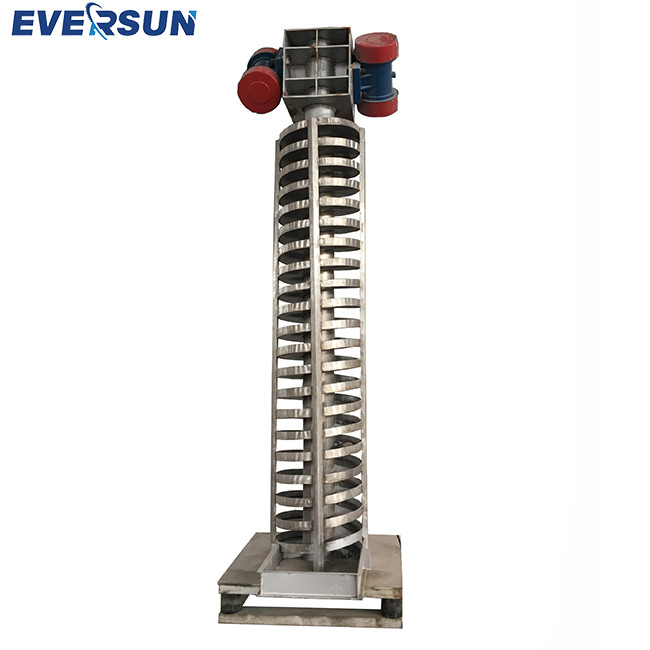

Stainless Steel304 Vertical Spiral Dry Elevator Conveyor For Cocoa Powder Cooling
Vertical spiral elevators can be used for cooling and conveying applications of cocoa powder. During the production of cocoa powder, it may be necessary to cool the hot cocoa powder to prevent it from clumping or other quality problems during storage or subsequent processing. Vertical screw elevators can be used to transport hot cocoa powder from one location to another while reducing the temperature of the cocoa powder by providing cooling air or media.

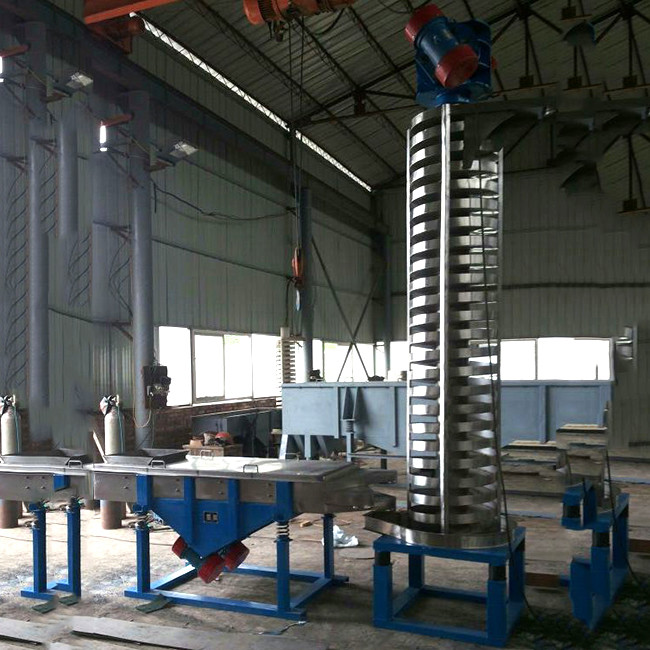

The main components of the Vertical Vibration Screw Elevator include a vertical screw conveyor and a vibration system. The screw conveyor consists of a spiral screw enclosed within a sealed pipe. The materials are pushed upwards by the rotational motion of the screw. The vibration system applies vibrations to the entire elevator, ensuring better dispersion and cooling of the materials during the lifting process.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Conveying capacity(t/h) | Conveying height(m) | Inlet air temperature | Drying time | Moisture before drying | Moisture after drying |
| CZT400 | 0.12 | 2500 | 180~380 | 7min | 18% | 5% |
| CZT500 | 0.15 | 3000 | 180~380 | 8min | 18% | 5% |
| CZT600 | 0.35 | 3500 | 180~380 | 9min | 18% | 5% |
| CZT800 | 0.6 | 4000 | 180~380 | 12min | 18% | 5% |
| CZT1000 | 1 | 5000 | 180~380 | 15min | 18% | 5% |
| CZT1200 | 1.5 | 5000 | 180~380 | 18min | 18% | 5% |
| CZT1500 | 2 | 5000 | 180~380 | 23min | 18% | 5% |
| CZT1800 | 3 | 6000 | 180~380 | 28min | 18% | 5% |
| Customized model is available | ||||||
Feature
The feature of Vertical Spiral Elevator
Vertical spiral elevators usually have the following characteristics:
1. Cooling medium supply: Vertical screw elevators may be designed to provide cooling medium, such as cold air or cold gas, during the conveying process. These cooling media come into contact with the hot cocoa powder, absorb its heat and cool it down.
2. Cooling pipe or tank: The pipe or tank of the vertical spiral elevator may be made of materials with good thermal conductivity and have a cooling function to better conduct the temperature of the cooling medium to the surface of the cocoa powder.
3. Proper conveying speed: In order to ensure the cooling effect, the conveying speed of the vertical screw elevator may need to be appropriately adjusted according to the temperature and cooling requirements of the cocoa powder.
Application
The application of vertical spiral elevator
Vertical spiral elevators are widely used in industrial fields. It is usually used for vertical conveying and lifting of materials, and has the following common application scenarios:
1. Grain processing: Vertical spiral elevators can be used to transport grains, feed and other grain raw materials from the ground or low places to high places in storage bins or processing equipment.
2. Mines and Quarry: Vertical spiral elevators can be used to transport ore, stone and other materials from mining areas or crushing equipment to elevated areas of processing equipment or storage areas.
3. Chemical and pharmaceutical industry: Vertical screw elevators are used to transport powder, granular or crystalline chemical raw materials or pharmaceuticals, such as pigments, plastic granules, drugs, etc.
4. Building materials: Vertical spiral elevators are often used to transport cement, gypsum, sand and other materials from the ground or low places to high places in mixing equipment, masonry machines or storage bins.
5. Food processing: Vertical spiral elevators can be used to transport powdered, granular or small granular food raw materials, such as flour, powdered sugar, cereals, etc.
Packing and shipping
1. Packaging:
Before shipping, the vertical vibration spiral elevator is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Vertical vibration spiral elevators can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
FAQ
Q1: What is a vertical spiral elevator?
A: The vertical spiral elevator is a device used to transport and lift materials vertically. It consists of a vertical pipe or tank and an internally installed spiral agitator. The rotating spiral agitator transports materials from the bottom or inlet to the top or outlet.
Q2: What are the advantages of vertical spiral elevators?
A: The vertical spiral elevator has the advantages of simple structure, small size, small footprint, and stable operation. It can lift materials efficiently, has large conveying capacity and small energy consumption.
Q3: What is the working principle of the vertical spiral elevator?
A: The working principle of the vertical spiral elevator is to push the material from the bottom or inlet to the top or outlet through the rotation of the spiral agitator. During the transportation process, the material rubs against the spiral agitator and the inner wall of the pipe or tank, thereby realizing transportation and lifting.
Q4: How to determine the conveying capacity of the vertical spiral elevator?
A: The conveying capacity of the vertical spiral elevator depends on many factors, including the size of the spiral mixer, rotation speed, material characteristics (such as particle size, density, etc.) and conveying height.
