| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | XFC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Vibration Cooling Screw Elevator | Function: | Lift Conveying, Cooling, Drying |
|---|---|---|---|

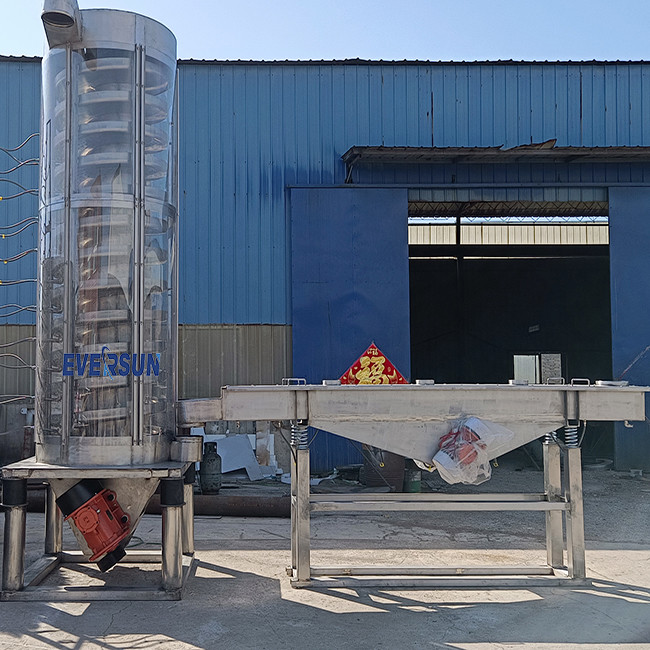

| Machine Type: | Closed And Open Type | Customization Options: | Diameter, Size, Acrylic Transparent Cover |
| Conveying Height: | 8m Or Customized | Noise: | ≤70db |
| Capacity: | 1-10t/h | Vibration Times: | 960min |
| High Light: | Vertical Vibration Cooling Screw Elevator,Feed Grain cooling screw elevator,Stainless Steel cooling screw elevator |
||
Product introduction

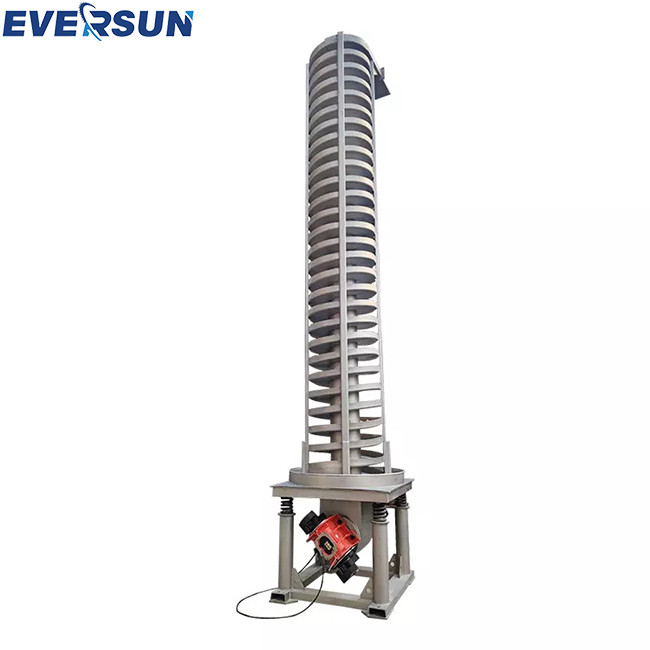

Non-standard feed grain stainless steel vertical vibration cooling screw elevator
The vertical vibration cooling screw elevator is a special type of elevator used for material cooling and transportation. It combines the principles of vibration and screw conveying to effectively lift materials vertically and cool them during the process.
The main components of the elevator include a vertical screw conveyor and a vibration system. A screw conveyor consists of a helical screw located within a sealed pipe. The material is pushed upward through the rotation of the spiral screw. The vibration system vibrates the entire elevator through the vibration mechanism, so that the material can be better dispersed and cooled during the lifting process.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Conveying capacity(t/h) | Conveyor trough diameter(mm) | Conveying width(mm) | Conveying height(m) | Double amplitude (mm) | Power(kw) |
| XFC300 | 1.0 | 300 | 77 | ≤2.0 | 6-7 | 6~7 |
| XFC500 | 2.0 | 500 | 140 | ≤3.0 | 6-8 | 2*0.75 |
| XFC550 | 3.0 | 550 | 152 | ≤3.5 | 6-8 | 2*1.5 |
| XFC600 | 3.0 | 600 | 163 | ≤4.0 | 6-7 | 2*1.5 |
| XFC800 | 4.0 | 800 | 224 | ≤4.5 | 6-8 | 2*2.2 |
| XFC850 | 4.0 | 850 | 224 | ≤5.0 | 6-9 | 2*2.2 |
| Customized model is available | ||||||
Feature
The feature of vertical vibration cooling screw elevator
1. Good cooling effect: Through the combination of vibration and screw conveying, the material can achieve good dispersion and cooling effects during the lifting process.
2. Small footprint: Compared with traditional cooling equipment, the vertical vibration cooling screw elevator has a smaller footprint and is suitable for workplaces with limited space.
3. Stable operation: The vibration system of the elevator and the screw conveyor adopt reliable designs to ensure stable operation and long life of the equipment.
4. High flexibility: The height of the elevator can be adjusted according to actual needs to adapt to different process flows and material handling requirements.
Application
The application of vertical screw elevator
Vertical vibration cooling spiral elevators are widely used in many industries and application fields. Here are some common application scenarios:
1. Food processing: In the food industry, vertical vibration cooling spiral hoists are often used to cool heat-sensitive materials, such as tropical fruits, vegetables, grains, etc. It can help reduce the temperature of the material, maintain its quality and taste, and extend shelf life.
2. Chemical process: In the chemical industry, the elevator is widely used in cooling and curing various chemical products, such as powder, granular materials, fertilizers, plastic particles, etc. It can effectively reduce the temperature of the material and prevent caking and adhesion during the curing process.
3. Metallurgical industry: In the metallurgical process, vertical vibration cooling spiral elevator is often used to cool and treat ores, slag, molten metal and other materials. It can help control material temperature, facilitate cooling and curing processes, and improve production efficiency and product quality.
4. Building materials industry: In the production of building materials, the elevator is often used for cooling and curing cement, gypsum, mortar and other materials. It can effectively reduce the temperature of the material, control the coagulation process of cement, and improve the strength and stability of building materials.
5. Mining industry: In mines and quarries, vertical vibration cooling spiral elevators are used to cool and treat ore, sand, slag and other materials. It can improve the cooling speed of the material, reduce the flying of dust and particles, and improve the utilization rate of the material.
Packing and shipping
1. Packaging:
Before shipping, the vertical vibration cooling spiral elevator is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Vertical vibration cooling spiral elevators can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
Vertical screw elevator selection guide
You need to provide the following information, we can provide you with free professional technical solutions:
1, material name, conveying capacity, lifting height.
2, material properties: including particle size and particle size composition, bulk density, temperature, humidity, viscosity, sharpness, corrosion and so on.
3, working environment: open air, indoor, dry, wet, ambient temperature, etc.
4, discharge method and discharge device form (if not required can not be provided).
5, feeding method and feeding device form (if not required can not be provided).
