| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | DZC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Spiral Vibration Elevator | Function: | Lift Conveying, Cooling, Drying |
|---|---|---|---|
| Spiral Diameter: | 500、600、800、1000、1200、1400mm | Conveying Height: | 8m Or Customized |
| Application: | Rubber Particles, Metal Salts, Grain | Capacity: | 1-10t/h |
| Machine Type: | Closed And Open Type | Vibration Times: | 960min |
| High Light: | Ore Slag Vertical Screw Elevator,Mining Industry Vertical Screw Elevator,Vertical Lifting Screw Conveyor |
||
Product introduction

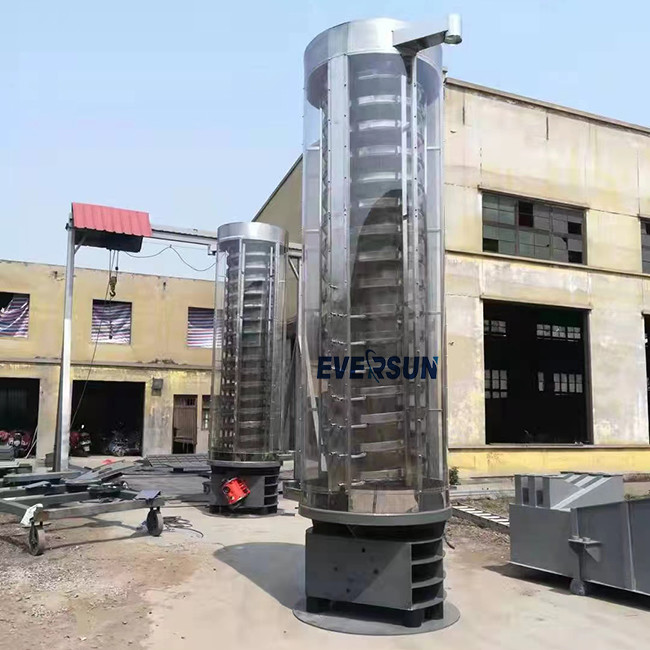

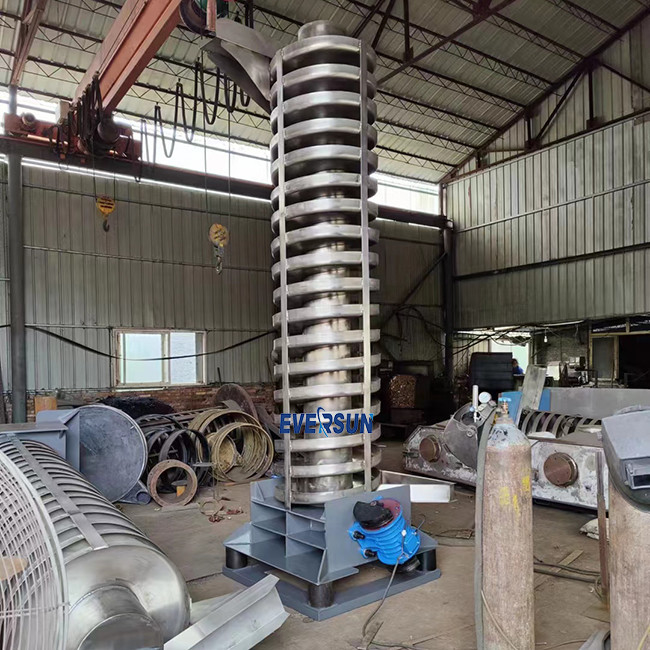

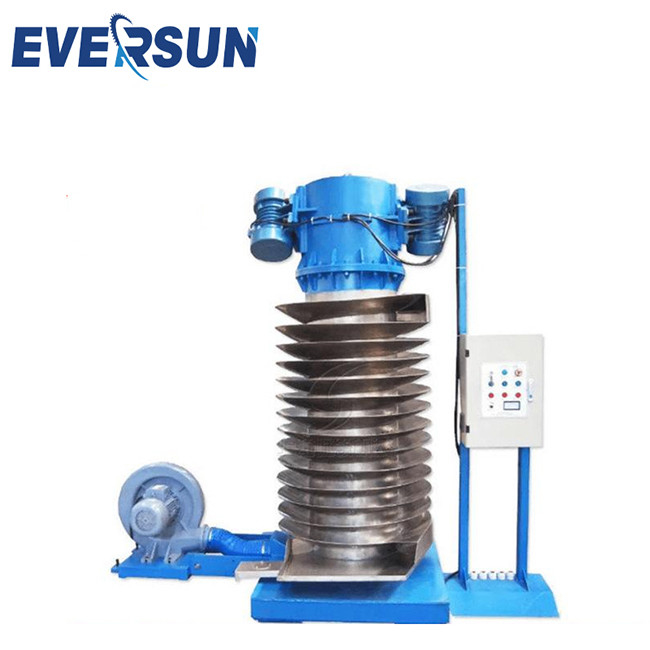

Mining Industry Vertical Lifting Conveyor Vertical Screw elevator For Ore Slag
The vertical screw elevator is a device used to transport materials vertically. It consists of a spiral blade (helical pitch) fixed in a hollow delivery tube. When the motor drives the spiral blade to rotate, the material is pushed by the spiral blade and lifted or dropped vertically along the conveying pipe.
The spiral vertical lifting feeder is suitable for a variety of granular, powder and block materials, including but not limited to grains, chemicals, ores, building materials, grain, feed, slag, sand, stone, cement, food raw materials, etc.
Vertical screw elevators have several key features. First of all, it can adapt to different types of materials, including granular, powdery and block materials. Secondly, it can realize vertical transportation in a relatively small space, saving the use of space. In addition, the vertical screw elevator has the advantages of simple structure, stable operation, and low maintenance cost.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Conveying capacity(t/h) | Conveyor trough diameter(mm) | Conveying width(mm) | Conveying height(m) | Double amplitude (mm) | Power(kw) |
| DZC300 | 1.0 | 300 | 77 | ≤2.0 | 6-7 | 2*0.4 |
| DZC500 | 2.0 | 500 | 140 | ≤3.0 | 6-8 | 2*0.75 |
| DZC550 | 3.0 | 550 | 152 | ≤3.5 | 6-8 | 2*1.5 |
| DZC600 | 3.0 | 600 | 163 | ≤4.0 | 6-7 | 2*1.5 |
| DZC800 | 4.0 | 800 | 224 | ≤4.5 | 6-8 | 2*2.2 |
| DZC850 | 4.0 | 850 | 224 | ≤5.0 | 6-9 | 2*2.2 |
| DZC900 | 3.5 | 900 | 185 | ≤6.0 | 6-9 | 2*3.0 |
| Customized model is available | ||||||
Structure
The structure of vertical screw elevator
The structural design of the vertical screw elevator is simple and compact, with efficient vertical conveying capacity. The structure usually includes the following main components:
1. Conveying pipeline, which is usually made of wear-resistant and corrosion-resistant materials, such as steel or stainless steel;
2. Spiral blade, which is usually made of a spiral metal strip or plate;
3. Motor: Usually the motor is installed at the top or bottom of the conveying pipe and transmits power to the spiral blades through the transmission device.
4. Inlet and outlet: The inlet is located at the bottom of the conveying pipe for materials to enter. The discharge port is located at the top or bottom of the conveying pipe and is used for discharging materials.
5. Support structure: The support structure is used to support and stabilize the overall frame of the vertical screw elevator.
Application
The application of vertical screw elevator
Vertical screw elevators are widely used in many industries. Here are some common application areas:
1. Grain processing: Vertical screw elevators can be used for vertical transportation of grains, wheat, corn, rice and other grains to different process stages or storage equipment.
2. Chemical industry: Vertical screw elevators can be used to transport powder, granular or crystallized materials, such as fertilizers, plastic granules, pigments, rubber, etc., for vertical lifting or feeding to reactors, drying equipment, etc.
3. Mining and metallurgy: Vertical screw elevators can be used to transport ore, sand, slag and other materials, and are used for vertical lifting to ore processing equipment, crushers, grinding equipment, etc.
4. Building materials: Vertical screw elevators can be used to transport cement, sand, stone, gypsum and other materials for vertical lifting into mixers, masonry equipment or storage equipment.
5. Food and Beverages: Vertical screw elevators can be used to transport powdered, granular or lumpy food ingredients, such as flour, sugar, grains, nuts, etc., for vertical lifting into mixers, packaging machines or processing equipment.
6. Pharmaceuticals and cosmetics: Vertical screw elevators can be used to transport pharmaceutical powders, cosmetic raw materials and other materials for vertical lifting into mixers, filling machines or packaging equipment.
Packing and shipping
1. Packaging:
Before shipping, the vertical screw elevator is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Vertical screw elevators can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
How to buy vertical screw elevator
First you need to determine your specific application needs. Consider factors such as the type, nature, particle size, conveying volume and vertical lifting height of the conveyed materials. This will help determine the required propeller blade size, motor power and other technical specifications. Our engineers will communicate the details with you and provide customized solutions according to your requirements.
