| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | DZC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Spiral Vibration Elevator | Optional Function: | Cooling, Drying, Screening |
|---|---|---|---|
| Drive Device: | Vibration Motor×2 Sets | Material: | Q235、Sus304、201、316L |
| Conveying Height: | 2-8m | Applied Material: | Powder, Block, Short Fiber Solid |
| Capacity: | 1-10t/h | Vibration Times: | 960min |
| High Light: | Drying Vibration Elevator,Cooling Vibration Elevator,Spiral Vertical Feeder Vibration Elevator |
||
Product introduction

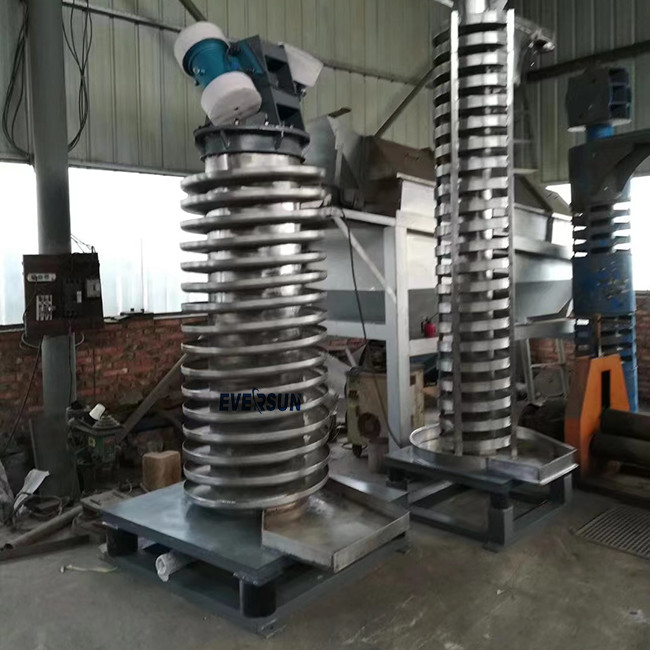

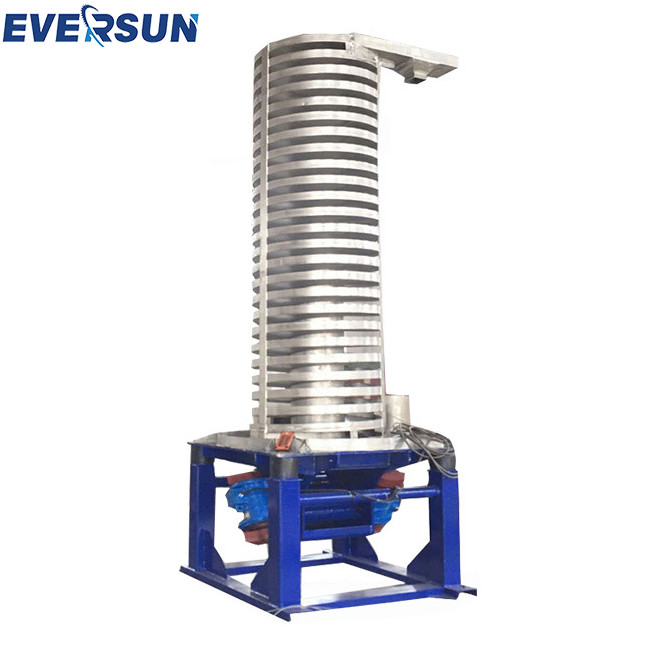

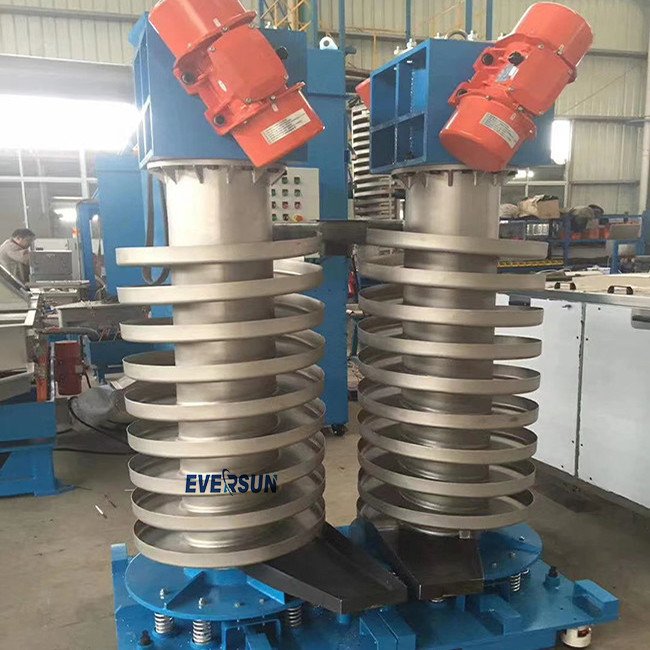

Vertical Vibration Elevator Spiral Vertical Elevating Feeder
Spiral Vertical Elevating Feeder is a device specially used for conveying and lifting materials in the vertical direction. It uses the rotational motion of the spiral blades to lift materials from the bottom to the top or other required locations.
The main components of the spiral vertical lift feeder include spiral blades, conveying pipes, motor drives and support structures. The spiral blade is located inside the conveying pipe and is rotated by a motor drive to generate upward thrust, thereby lifting the material to the target position. Conveying pipes usually have circular or U-shaped cross-sections to accommodate the rotation of the spiral blades and ensure smooth transportation of materials.
The spiral vertical lifting feeder is suitable for vertical transportation of a variety of granular, powder and block materials, such as grains, chemicals, ores, building materials, etc.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Conveying capacity(t/h) | Conveyor trough diameter(mm) | Conveying width(mm) | Conveying height(m) | Double amplitude (mm) | Power(kw) |
| DZC300 | 1.0 | 300 | 77 | ≤2.0 | 6-7 | 2*0.4 |
| DZC500 | 2.0 | 500 | 140 | ≤3.0 | 6-8 | 2*0.75 |
| DZC550 | 3.0 | 550 | 152 | ≤3.5 | 6-8 | 2*1.5 |
| DZC600 | 3.0 | 600 | 163 | ≤4.0 | 6-7 | 2*1.5 |
| DZC800 | 4.0 | 800 | 224 | ≤4.5 | 6-8 | 2*2.2 |
| DZC850 | 4.0 | 850 | 224 | ≤5.0 | 6-9 | 2*2.2 |
| DZC900 | 3.5 | 900 | 185 | ≤6.0 | 6-9 | 2*3.0 |
| Customized model is available | ||||||
Feature
The features of Spiral Vertical Elevating Feeder
1. Efficient vertical conveying: The rotating motion of the spiral blades can provide continuous and stable material lifting, achieving an efficient vertical conveying process.
2. Small space occupied: Compared with traditional lifting equipment, spiral vertical lifting feeders usually occupy less space and are suitable for places with limited space.
3. Strong flexibility: The spiral vertical lifting feeder can be customized and adjusted as needed to adapt to different materials and process requirements.
4. Low energy consumption and maintenance costs: Spiral vertical lift feeders usually have a simple structure and low energy consumption, and maintenance costs are also relatively low.
5. High reliability: The spiral vertical lifting feeder has reasonable design, stable and reliable operation, and can meet the needs of long-term and continuous industrial production.
Application
The application of Spiral Vertical Elevating Feeder
Spiral Vertical Elevating Feeders are widely used in many industries. Here are some common application areas:
1. Grain processing: grains, feeds and oilseeds, etc.
2. Chemical industry: granular chemicals, powdered raw materials, plastic particles, etc.
3. Mining and metallurgy: vertical transportation of ore, slag, ore powder and other materials.
4. Building materials: sand, stone, cement and other materials.
5. Food and Beverage: Vertical conveying and lifting of powdered, granular or lumpy ingredients, for example into mixers, packaging machines or storage silos.
6. Pharmaceuticals and cosmetics: pharmaceuticals, cosmetic powders, granules and other materials.
Packing and shipping
1. Packaging:
Before shipping, the Spiral Vertical Elevating Feeder is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Spiral Vertical Elevating Feeders can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
FAQ
Q1: What materials is the Spiral Vertical Elevating Feeder suitable for?
A: The Spiral Vertical Elevating Feeder is suitable for a variety of granular, powder and block materials, including but not limited to grains, chemicals, ores, building materials, grain, feed, slag, sand, stone, cement, food raw materials, etc.
Q2: What are the advantages of the Spiral Vertical Elevating Feeder?
A: The Spiral Vertical Elevating Feeder has the following advantages: efficient vertical conveying, small footprint, strong flexibility, low energy consumption and maintenance costs, and high reliability.
Q3: How to choose a suitable Spiral Vertical Elevating Feeder?
A: When choosing a suitable Spiral Vertical Elevating Feeder, you need to consider factors such as the nature of the material, conveying distance, and output requirements. Key parameters include the diameter and pitch of the spiral blades, the diameter and length of the delivery pipe, motor power, etc.
Q4: What should we pay attention to when maintaining the Spiral Vertical Elevating Feeder?
A: The maintenance of the spiral vertical lifting feeder requires regular inspection and cleaning of the equipment to ensure the normal operation of the spiral blades and the smoothness of the conveying pipeline. It is also necessary to pay attention to the lubrication and tightening conditions of the motor and transmission device, and deal with any faults or abnormalities in a timely manner.
