| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | DZC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Spiral Vibration Elevator | Conveying Height: | 8m |
|---|---|---|---|
| Applied Material: | Powder, Block, Short Fiber Solid Material | Capacity: | 1-10t/h |
| Optional Function: | Cooling, Drying, Screening | Dimension: | Customized |
| Weight: | 680-2100kg | Vibration Times: | 960min |
| High Light: | Customizable Vertical Spiral Vibration Elevator,Spiral Vibration Conveying Feeder,Spiral Vertical Vibration Elevator |
||
Product introduction

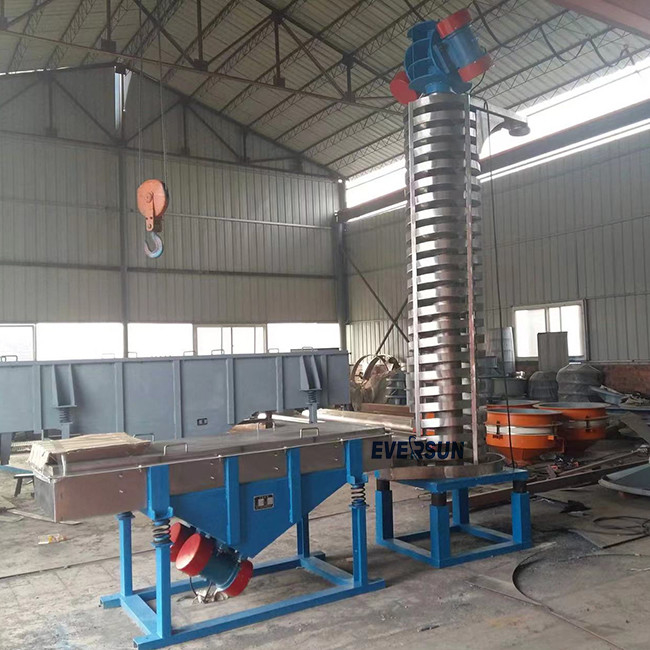

Customizable Vertical Vibration Elevator Spiral Vibration Conveying Feeder
The vertical vibration elevator can also be called drying elevator and cooling elevator. It uses a vibration motor as the vibration source. Two vibration motors of the same type fixed on the lifting trough are installed at a certain angle with their center lines intersecting and self-synchronously rotating in opposite directions. , the component of the centrifugal force generated by the eccentric block of the vibration motor at each instant position during rotation reciprocates along the throwing direction, causing the entire machine body supported on the shock absorber to vibrate continuously, causing the material to be thrown in the lifting trough. It moves upward at the same time. After the material falls into the feeding chute, it begins to be thrown up. At this time, the material can fully contact with the air, and it can also play a role in heat dissipation and cooling.

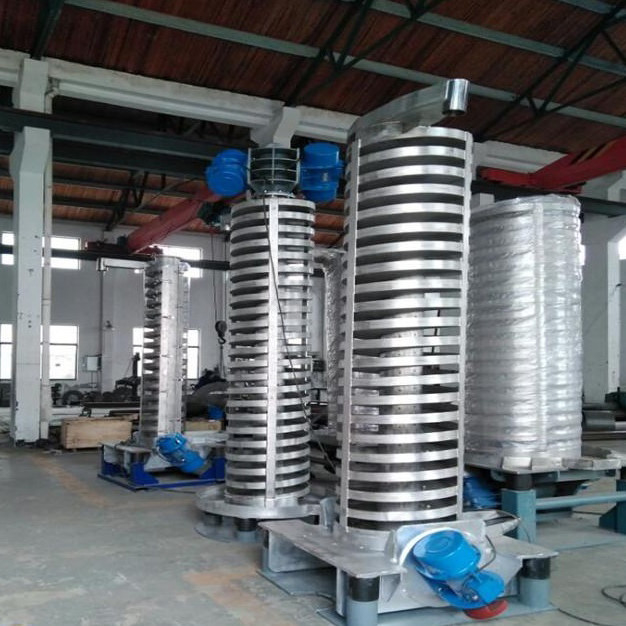

Vertical vibration elevators can be divided into open and closed structures. The product occupies a small area and is convenient for process layout. Materials can be transported upwards or downwards. Low noise, simple structure, convenient installation and maintenance. The structure is simple and reasonable, the energy consumption is small, the electric energy is saved, and the material trough wear is small.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Conveying capacity(t/h) | Conveyor trough diameter(mm) | Conveying width(mm) | Conveying height(m) | Double amplitude (mm) | Power(kw) |
| DZC300 | 1.0 | 300 | 77 | ≤2.0 | 6-7 | 2*0.4 |
| DZC500 | 2.0 | 500 | 140 | ≤3.0 | 6-8 | 2*0.75 |
| DZC550 | 3.0 | 550 | 152 | ≤3.5 | 6-8 | 2*1.5 |
| DZC600 | 3.0 | 600 | 163 | ≤4.0 | 6-7 | 2*1.5 |
| DZC800 | 4.0 | 800 | 224 | ≤4.5 | 6-8 | 2*2.2 |
| DZC850 | 4.0 | 850 | 224 | ≤5.0 | 6-9 | 2*2.2 |
| DZC900 | 3.5 | 900 | 185 | ≤6.0 | 6-9 | 2*3.0 |
| Customized model is available | ||||||
Working principle
The working principle of vertical vibration elevator

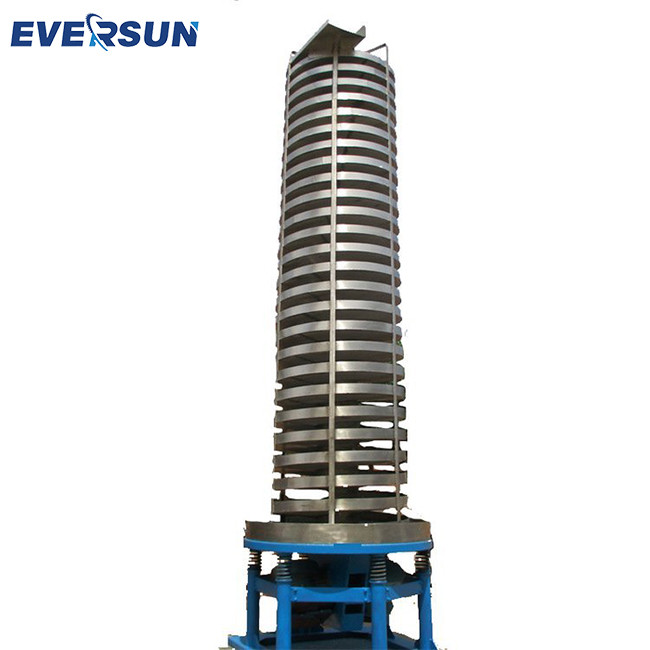

The vibration motor of the driving device of the vertical vibration elevator is installed at the lower part of the conveyor tower. The two vibration motors are installed symmetrically and alternately. The conveyor tower consists of a pipe body and a spiral conveyor trough welded around the pipe body. The conveyor tower is seated on the vibration damping device. The vibration reduction device consists of a base and a vibration isolation spring. When the vertical conveyor is working, based on the self-synchronization principle of the dual vibration motors, the vibration motor generates an exciting force, forcing the entire conveyor tower to perform a spatial composite vibration of horizontal circular motion and upward vertical motion. The materials in the spiral groove are affected by the conveyor groove. It performs a circular motion at a uniform speed and moves upward along the conveyor trough, thereby completing the upward (or downward) conveying operation of materials.
Application
The application of Vertical Vibration Elevator
Vertical vibration elevators are widely used in various industries. Here are some common application areas:
1. Food processing: vertical conveying of flour, powdered sugar, spices, grains, etc.
2. Chemical industry: chemical raw materials, additives, catalysts, etc.
3. Agriculture: seeds, grains, feed and other materials.
4. Building materials: cement, mortar, lime, sand and other materials.
5. Mining and ore processing: ore, ore powder, tailings and other materials.
6. Medicines and cosmetics: granular or powdered pharmaceutical raw materials, cosmetic ingredients, etc.
Packing and shipping
1. Packaging:
Before shipping, the vertical vibration elevator is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Vertical vibration elevators can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
FAQ
Q1: What is a vertical vibration elevator?
Vertical vibration elevator is a device used to transport and lift materials vertically. It transports and lifts materials in the vertical direction through the rotation of the vibration mechanism and the spiral blades.
Q2: What is the difference between vertical vibration elevator and traditional elevator?
Traditional elevators usually use buckets or belts to lift materials, while vertical vibration elevators use the rotation and vibration force of spiral blades to achieve vertical transportation and lifting of materials. Vertical vibration elevators have advantages when handling some materials with special shapes or that are prone to clogging.
Q3: What materials is the vertical vibration elevator suitable for?
Vertical vibration elevator is suitable for various powder, granular and block materials, such as grains, granular chemicals, food raw materials, ores, etc.
Q4: What are the customization options for vertical vibration elevators?
Vertical vibration elevators can be customized according to specific needs, including size, capacity, control system, etc.
