| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | CWC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Spiral Vibration Elevator | Conveying Height: | 8m |
|---|---|---|---|
| Applied Material: | Powder, Granular And Bulk Solids | Capacity: | 1-10t/h |
| Optional Function: | Cooling, Drying, Screening | Diameter Of Spiral: | 300 To 1800mm |
| Weight: | According To The Specific Model | Conveying Width: | 77-185mm |
| High Light: | Vertical Spiral Vibration Elevator Conveyor,Closed Plastic Vertical Spiral Conveyor,Granule Cooling Vertical Conveyor |
||
Product introduction

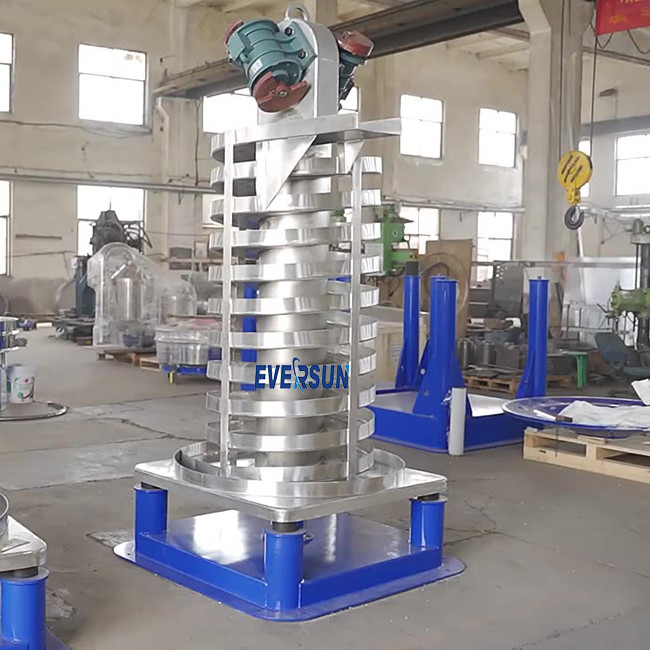

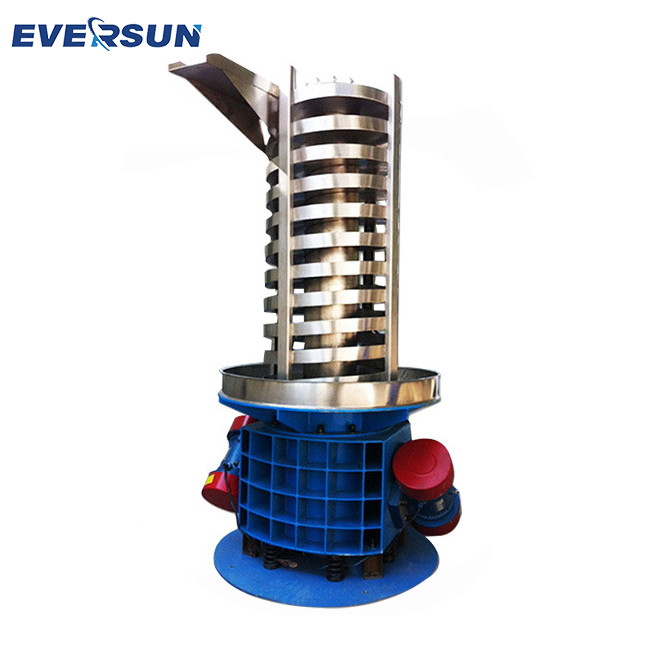

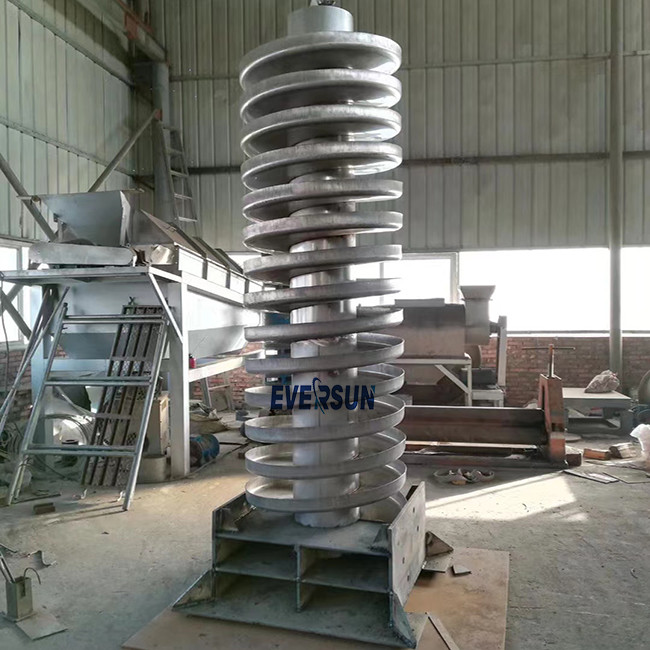

Closed Plastic Granule Cooling Vertical Spiral Vibration Elevator Conveyor
The vertical spiral vibration elevator is a specially designed material conveying equipment, suitable for conveying various powder and granular materials, such as flour, powdered sugar, chemical raw materials, agricultural products, etc. It combines the principles of a screw elevator and vibration transmission. It transports materials from the bottom to the top or from low to high through the rotation of the spiral blades and the action of the vibration device.
It is suitable for vertical material transportation. The main components of the vertical vibration spiral elevator include: spiral blades, vibration device, and conveying pipe.
The vertical spiral vibration elevator has the advantages of simple structure, small footprint, and high conveying efficiency. Widely used in food processing, chemical industry, agriculture, warehousing and other industries.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Diameter of spiral | Lifting height(m) | Speed (r/min) | Double amplitude (mm) | Power(kw) |
| CWC30 | 300 | ≤4.0 | 960 | 6-8 | 2*0.4 |
| CWC500 | 500 | ≤6.0 | 960 | 6-8 | 2*0.75 |
| CWC600 | 600 | ≤8.0 | 960 | 6-8 | 2*1.5 |
| CWC800 | 800 | ≤8.0 | 960 | 6-8 | 2*2.2 |
| CWC900 | 900 | ≤8.0 | 960 | 6-8 | 2*3.0 |
| CWC1200 | 1200 | ≤8.0 | 960 | 6-8 | 2*4.5 |
| CWC1500 | 1500 | ≤8.0 | 960 | 6-8 | 2*5.5 |
| CWC1800 | 1800 | ≤8.0 | 960 | 6-8 | 2*6.5 |
| Customized model is available | |||||
Features
The main features of vertical spiral vibration elevator
1. Spiral blade transportation: The vertical spiral vibration elevator adopts the structure of spiral blades for material transportation. The spiral blades push the material upward through rotation to achieve a continuous and stable conveying process.
2. Vibration transmission: The vertical spiral vibration elevator has a vibration device, which increases the fluidity and transportation efficiency of materials on the spiral blades through the action of vibration force. Vibration transmission can effectively prevent the accumulation and jamming of materials and improve the stability of transportation.
3. Compact structure: Vertical spiral vibration elevators usually have a compact structure design and occupy a relatively small area. This makes it suitable for places with limited space and can be installed and arranged flexibly.
4. High efficiency and energy saving: The design of the vertical spiral vibration elevator can achieve efficient material transportation and lifting, improving production efficiency. At the same time, the design of vibration transmission and compact structure can reduce energy consumption and achieve energy saving.
Application
The application of Vertical Spiral Vibration Elevator
Vertical vibration spiral elevator is a special type of spiral elevator that combines the principles of spiral transportation and vibration transmission. The following are some application areas of vertical vibrating screw elevators:
1. Powder and granular material transportation: Vertical vibration spiral elevator is suitable for transporting various powder and granular materials, such as flour, powdered sugar, chemical raw materials, agricultural products, etc. It can transport these materials from one height to another and is suitable for food processing, chemical industry, agriculture and other industries.
2. Screening and grading: Vertical vibrating screw elevators can be used in conjunction with screening equipment for screening and grading materials. Through the combination of vibration and spiral transportation, it can separate materials between different size classes to achieve classification and grading of materials.
Packing and shipping
1. Packaging:
Before shipping, the vertical spiral vibration elevator is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Vertical spiral vibration elevators can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
FAQ
Q1: How does a vertical spiral vibration conveyor work?
The conveyor consists of a spiral blade enclosed within a vertical tube. The spiral blade rotates and, with the help of a vibration device, transports materials in a vertical direction. The vibration mechanism provides additional force to enhance material flow and prevent blockages.
Q2: What types of materials can be handled by a vertical spiral vibration conveyor?
Vertical spiral vibration conveyors can handle a wide range of materials, including powders, granules, and solid particles. They are commonly used in industries such as food processing, chemical manufacturing, agricultural production, and warehousing.
Q3: Are vertical spiral vibration conveyors customizable?
Yes, vertical spiral vibration conveyors can be customized to meet specific requirements. The length, diameter, and pitch of the spiral blade can be adjusted based on the material characteristics and desired throughput. Optional features such as discharge gates, feeding hoppers, and control systems can also be incorporated as per the application needs.
Q4: What maintenance is required for vertical spiral vibration conveyors?
Regular maintenance is essential to ensure the optimal performance of vertical spiral vibration conveyors. This includes inspecting and cleaning the conveyor components, checking for wear and tear, lubricating moving parts, and attending to any necessary repairs.
